4.3 Mounting

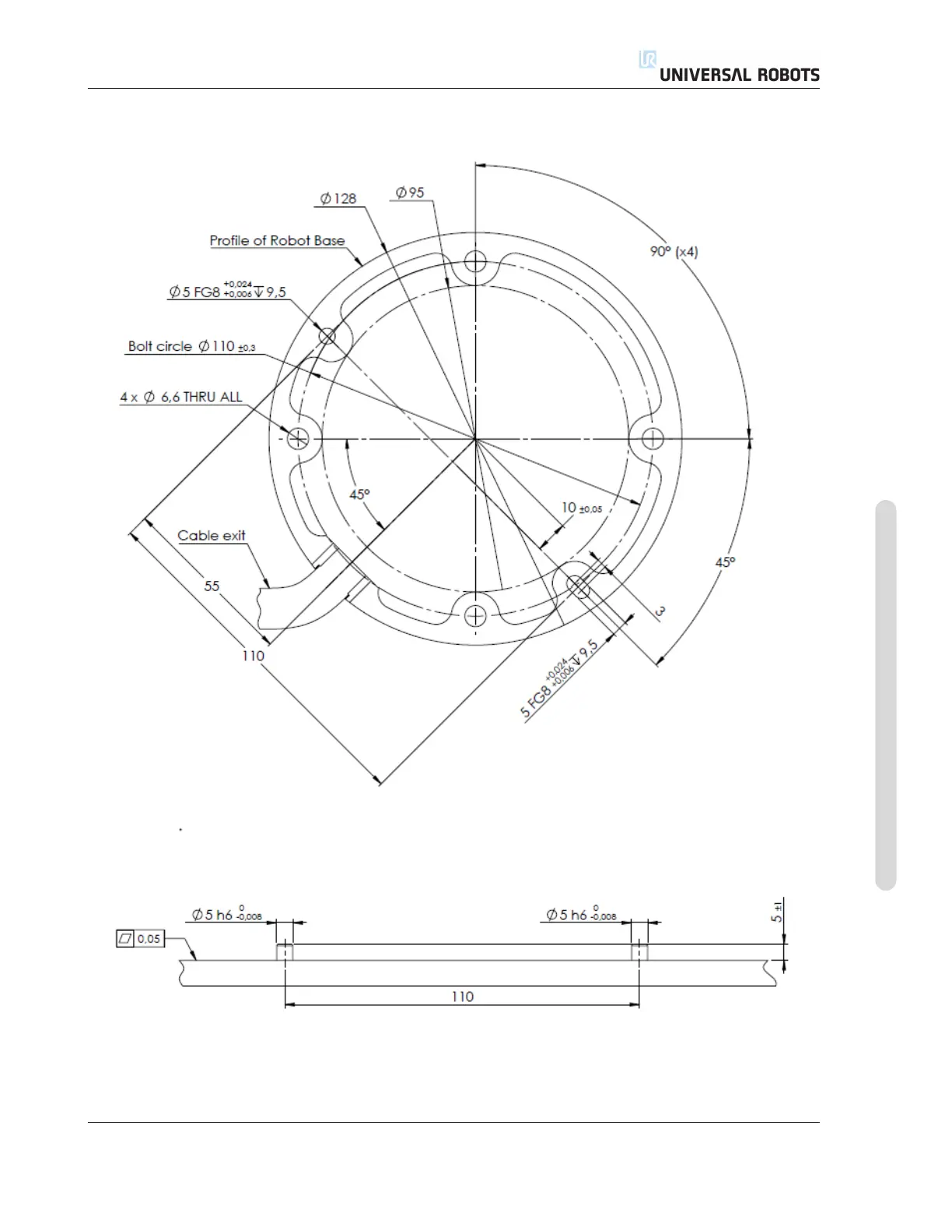

Figure 4.1: Holes for mounting the robot. Use four M6 bolts. All measurements are in mm.
Version 3.10
Copyright © 2009–2019 by Universal Robots A/S. All rights reserved.
I-25 UR3/CB3
