2DA/2DB
1-6-30

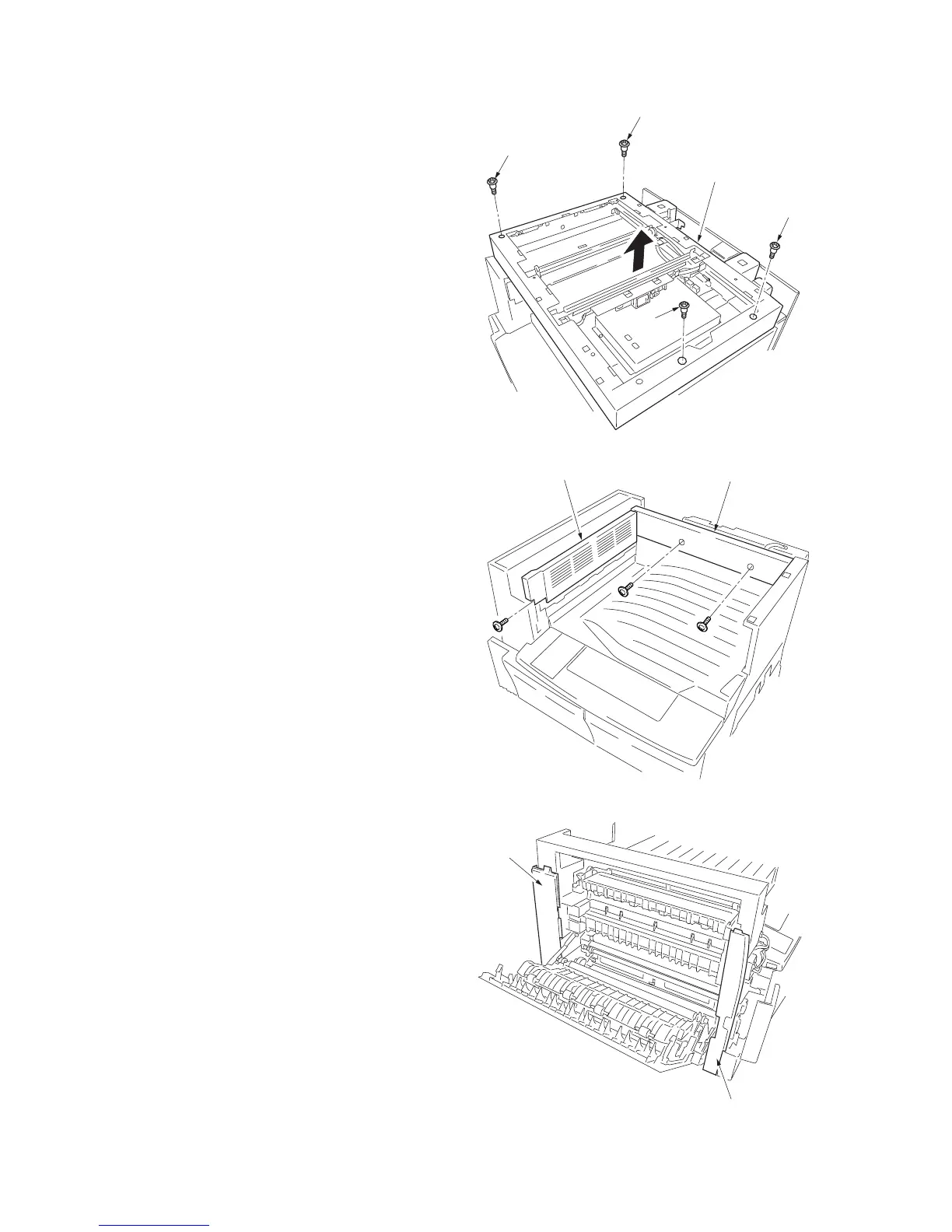

5.
Remove the four pins holding the scanner
unit and then the unit.
6.
Remove the screw holding the exit cover and
then the cover
. Remove the two screws
holding the inner rear cover and then the
cover
.
7.
Remove the front and rear left cover
.
Scanner unit
Pin
Pin
Pin
Pin
Front left cover
Rear left
cover
Inner rear cover
Exit cover
Figure 1-6-56
Figure 1-6-57
Figure 1-6-58
197
199
