Utax cd 1120 - Page 199

2DA/2DB
1-6-31

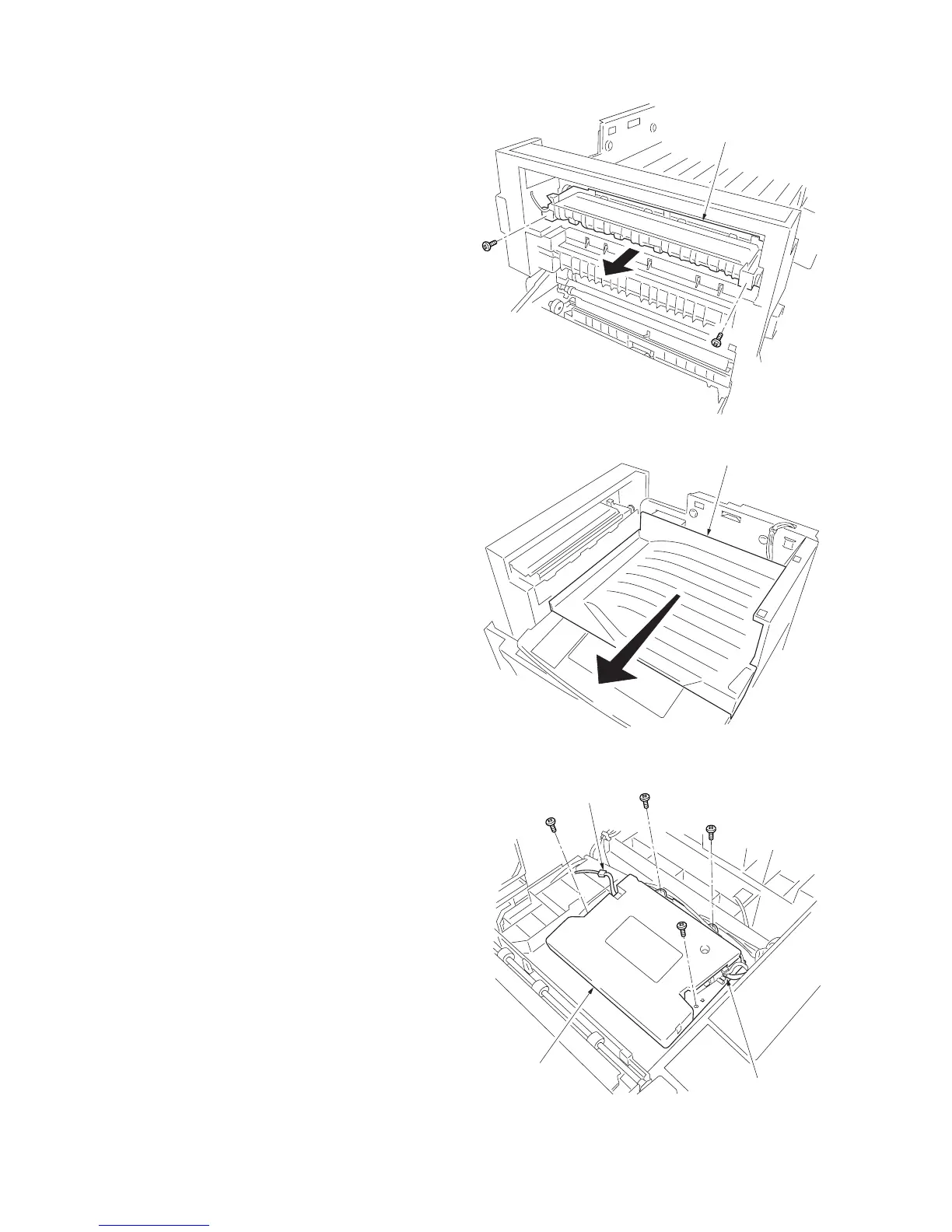

8. Remove the two screws holding the exit unit
and then pull out the unit a little.
9. Remove the exit tray.
10. Remove the four screws and detach the two
connector and then remove the laser scanner
unit.
11. Replace the laser scanner unit and refit all
the removed parts.
Exit tray
Laser scanner
unit
Connector
Connector
Exit unit
Figure 1-6-61
Figure 1-6-60
Figure 1-6-59
