1-3-21
2DA/2DB
12. Insert the key counter into the key counter socket
assembly.
13. Turn the power switch on and enter the maintenance
mode.
14. Run maintenance item U204 and select “KEY-
COUNTER.”
15. Exit the maintenance mode.
16. Check that the message requesting the key counter
to be inserted is displayed on the message display
when the key counter is pulled out.
17. Check that the counter counts up as copies are
made.
8. Connect the 4-pin connector of the key counter to the
key counter wire.
9. Engage the projection of the key counter mounting
plate with the aperture of the right cover.
10. Secure the key counter cover and the key counter
mounting plate together with the MFP using a M4 x
35 screw.
11. Refit the rear cover.

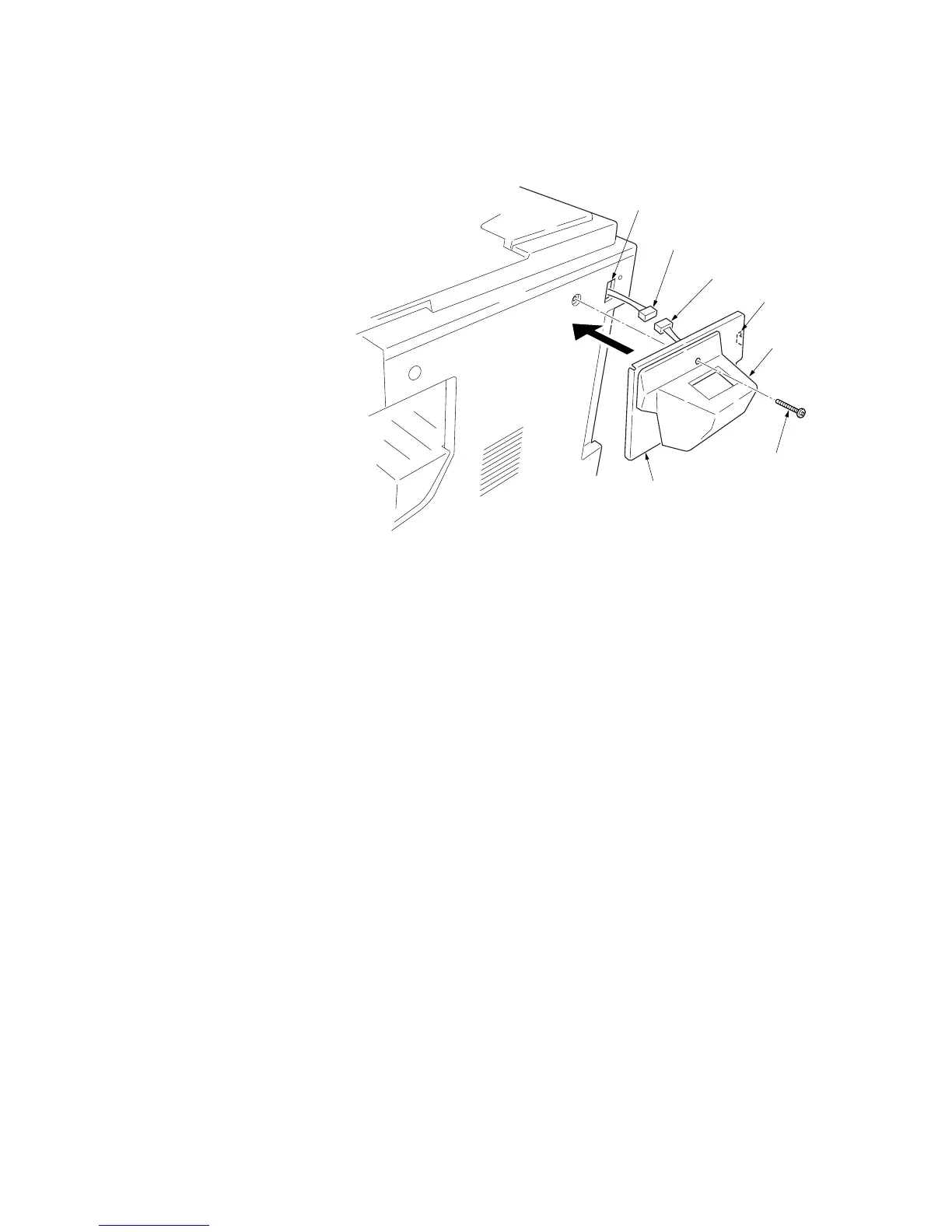

Figure 1-3-34
Key counter wire
4-pin connector
Aperture
Key counter
cover
Key counter mounting
plate (2C960100)
M4×35 screw
(B0004350)
Projection
To Next Page
