21. Attach the front ejection cover and rear ejection
cover using the TP bind screw M3 × 06 each.
22. Open the front cover.
23. Attach the staple cover as it is fitted to the staple unit
from the ejection side and then secure it using the TP
bind screw M3 × 06.
24. Attach the inner cover that has been removed by
Procedure 3 to its original position.
25. Close the front cover.
TP bind screw
M3
×
06
TP bind screw
M3
×
06

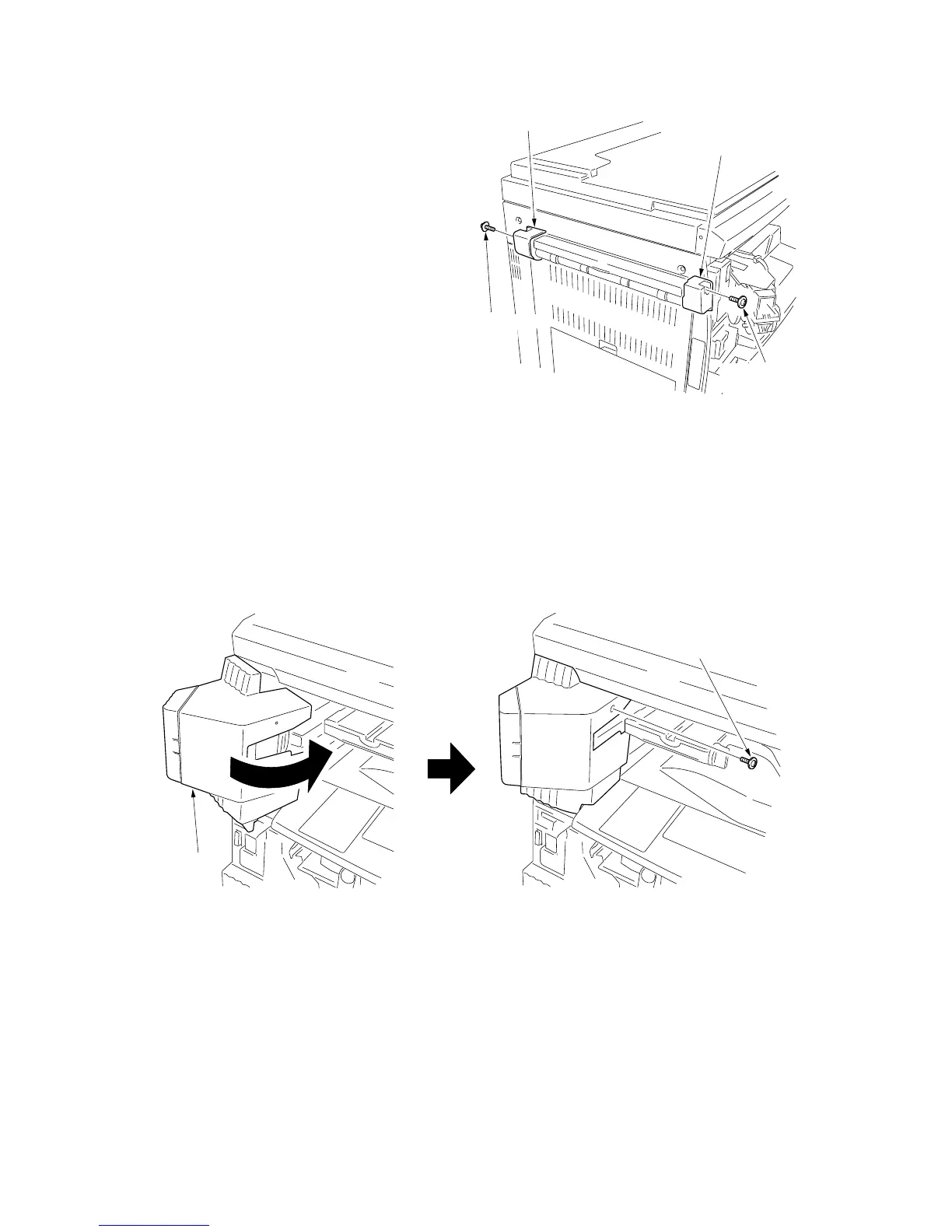

Front ejection cover
Rear ejection cover
Staple cover
TP bind screw M3
×
06
Figure 1-3-50
Figure 1-3-51
