15. Fit the pin located at the left rear side of the
intermediate tray from the rear side of the MFP onto
the hook of the transfer unit.
16. Remove the tape and pull out the 13-pin connector
and 24-pin connector.
17. Connect the 24-pin connector of the intermediate tray
to the connector of the transfer unit.
18. Connect the 13-pin connector of the intermediate tray
to YC5 on the engine circuit board.
Attach the covers.
19. Attach the cover that has been removed by
Procedure 8 to its original position using the two
screws.
20. Attach the large ejection cover with the two screws
that have been removed by Procedure 1.
Ta
p
e
Hook
Pin
24-pin connector
13-pin connector
13-pin connector
Connector
24-pin connector
YC5
Screws
Large ejection cover

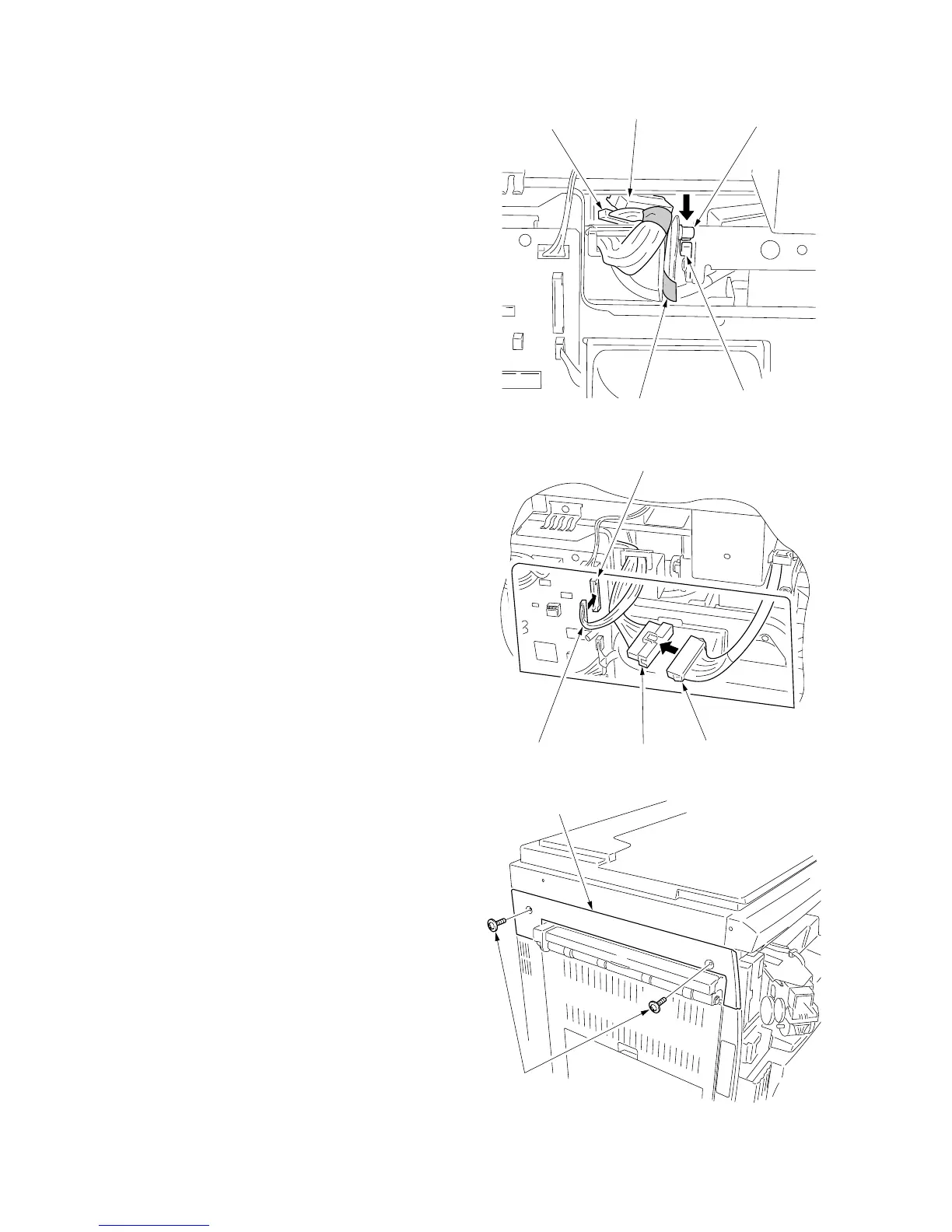

Figure 1-3-47
Figure 1-3-48
Figure 1-3-49
