Attach the intermediate tray.
12. Loosen the screw located inside of the MFP by about
3 turns.
* Do not turn the screw too much, otherwise it may
drop in the machine.
13. Hang the hook of the hook holder onto the screw and
then retighten the screw.
14. Insert the intermediate tray from the front side of the
MFP while pushing the hook to the back and then
push the pin located at the right rear side of the
intermediate tray into the hook holder until the fitting
sound is heard.
Screw
Screw
Screw
3
Hook holder
Hook holder
Intermediate
tray
Hook
Pin
Hook
holder

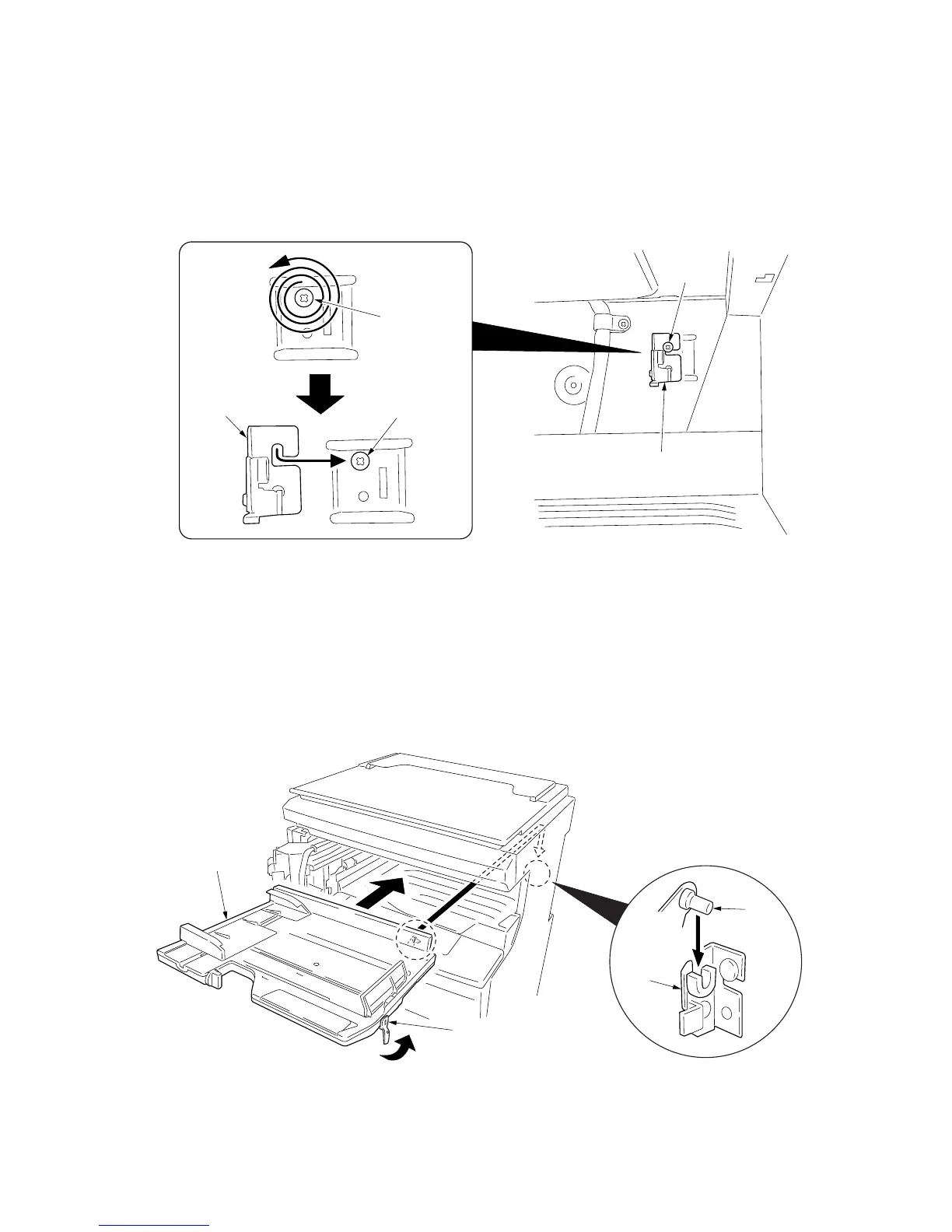

Figure 1-3-45
Figure 1-3-46
