1-3-32
2DA/2DB-1

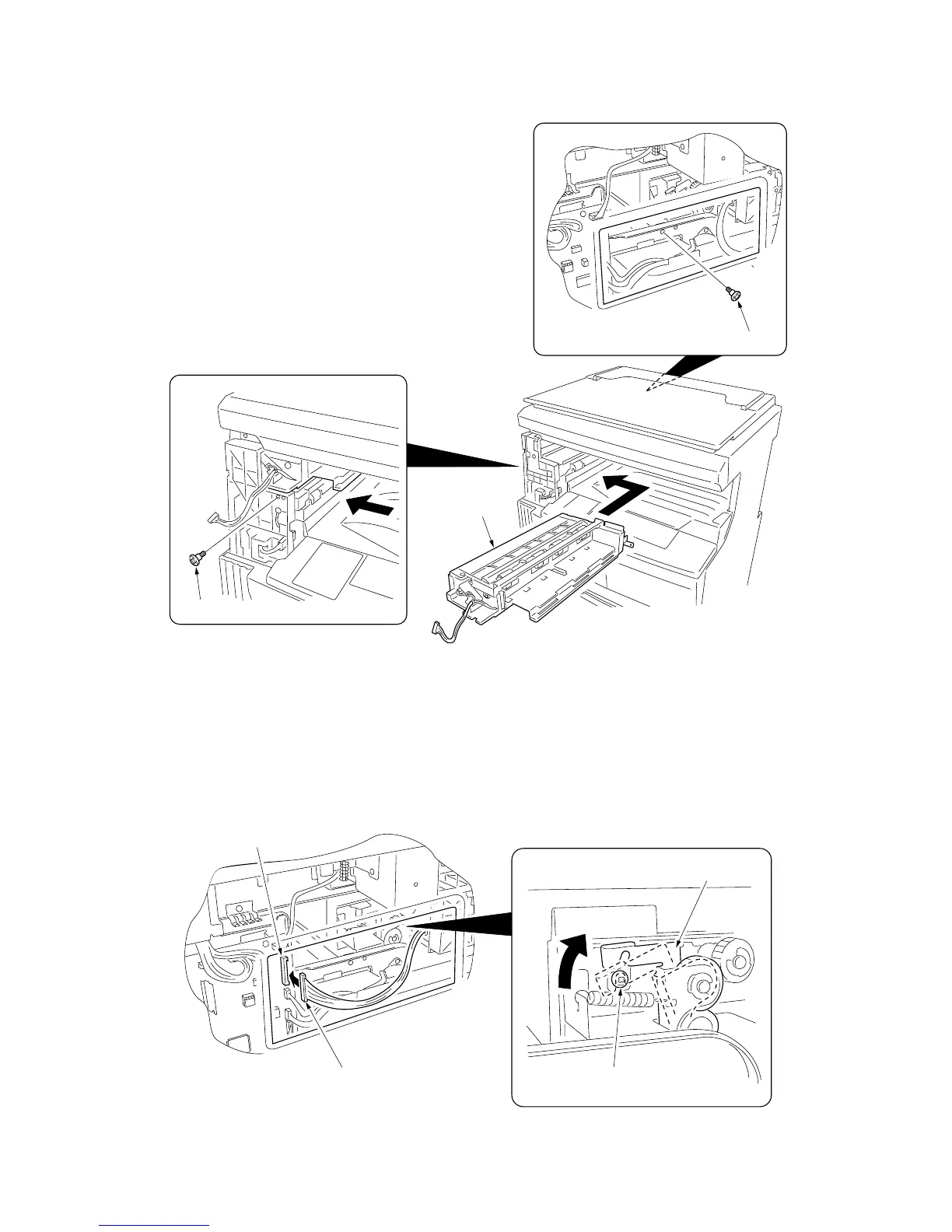

Attach the job separator.
7. Insert the job separator from the MFP front side and
slide it to the left to install to the ejection part.
8. Place the job separator closer to the ejection side
and then secure the front side (left tapped hole) with
the large pin and the rear side with the small pin.
9. Loosen the screw that secures the drive unit located
at the rear side of the job separator to make it ready
for starting to drive and then retighten the screw.
10. Connect the connector of the job separator to YC5
on the engine circuit board.
11. Attach the cover that has been removed by
Procedure 6 to its original position using the two
screws.
Job separator
Small pin
Large pin
Screw
YC5
Drive unit
Connector
Figure 1-3-59
Figure 1-3-60
To Next Page
