1-3-33
2DA/2DB

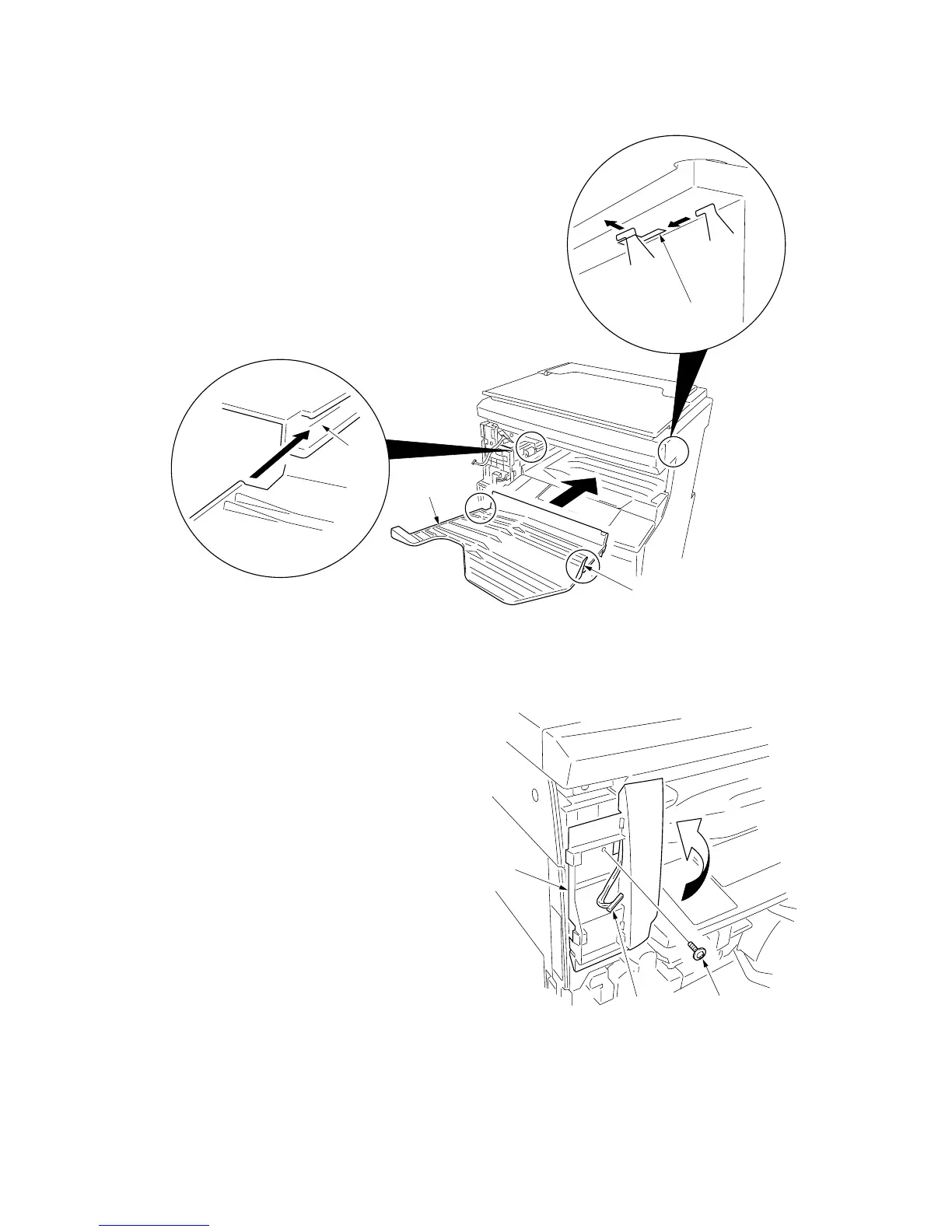

Attach the copy tray.
12. Insert the left part of the copy tray into the groove of
the job separator. Fit the right hook into the hole
located inside of MFP while pushing the copy tray to
the back along the groove.
Attach the left front cover JS.
13. Pull out the connector of the job separator from the
hole of the left front cover that has been removed by
Procedure 4 and then attach the left front cover to its
original position using the screw.
Hole
Right hook
Groove
Copy tray
Screw
Left front
cover
Connector
Figure 1-3-61
Figure 1-3-62
To Next Page
