Attach the alphabet labels.
30. Take the alphabet labels from the one-touch label
sheet, and adhere them above the corresponding
numeric keys on the operation panel after wiping the
panel with alcohol.
In Asia and Oceania, use the PQRS TUV WXYZ
label, and do not use the PRS TUV WXZ and OPER
labels.
Attach the certification label (120 V specifications
only).
31. Adhere the FCC68 label onto the shield cover after
wiping the cover with alcohol.
Execute the maintenance mode.
After installation is complete, the fax control PCB must
be initialized by executing the maintenance mode U601/
U602.
(See the service manual of the fax system.)

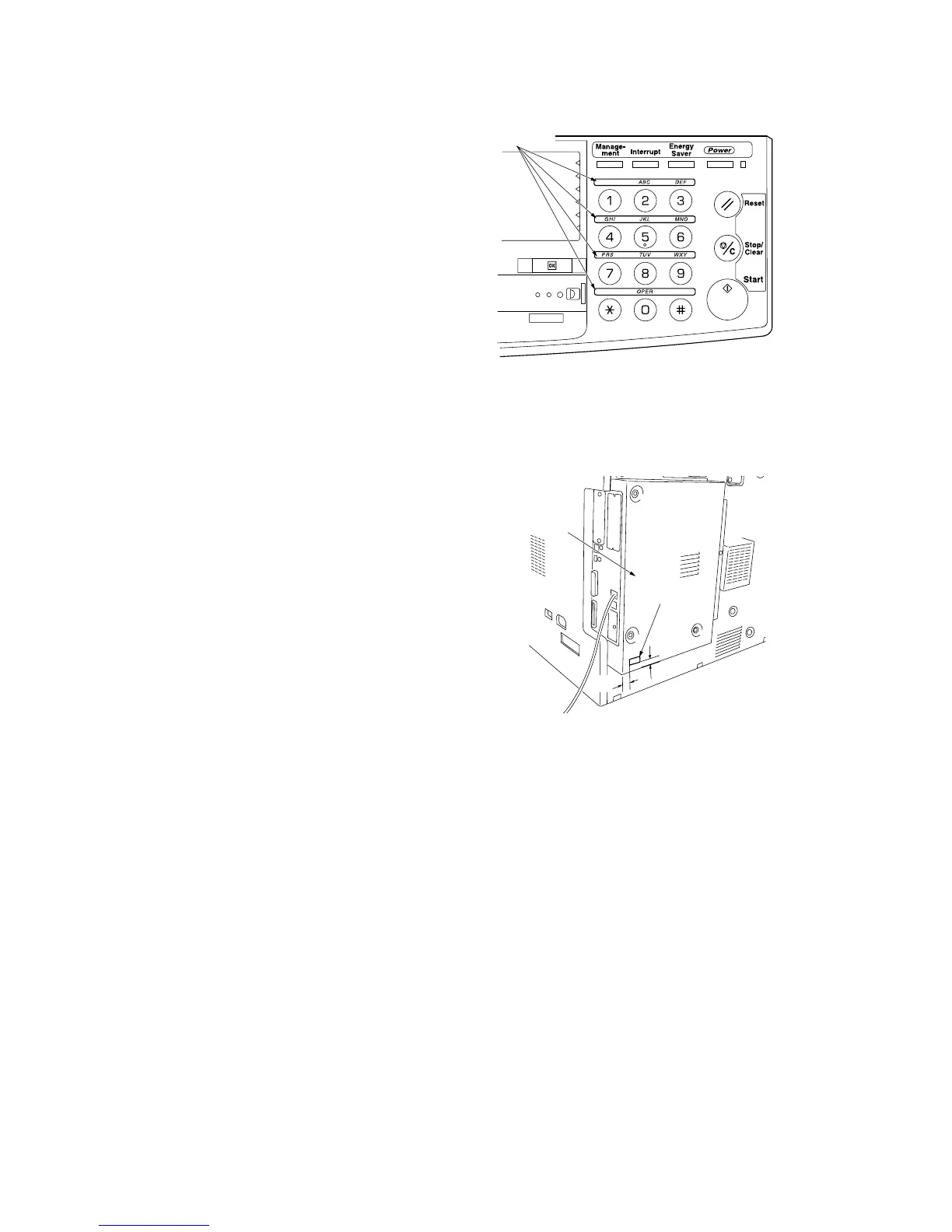

Alphabet labels
10mm
10mm
FCC68 label
Shield cover
Figure 1-3-84
Figure 1-3-85
