1-3-41
2DA/2DB

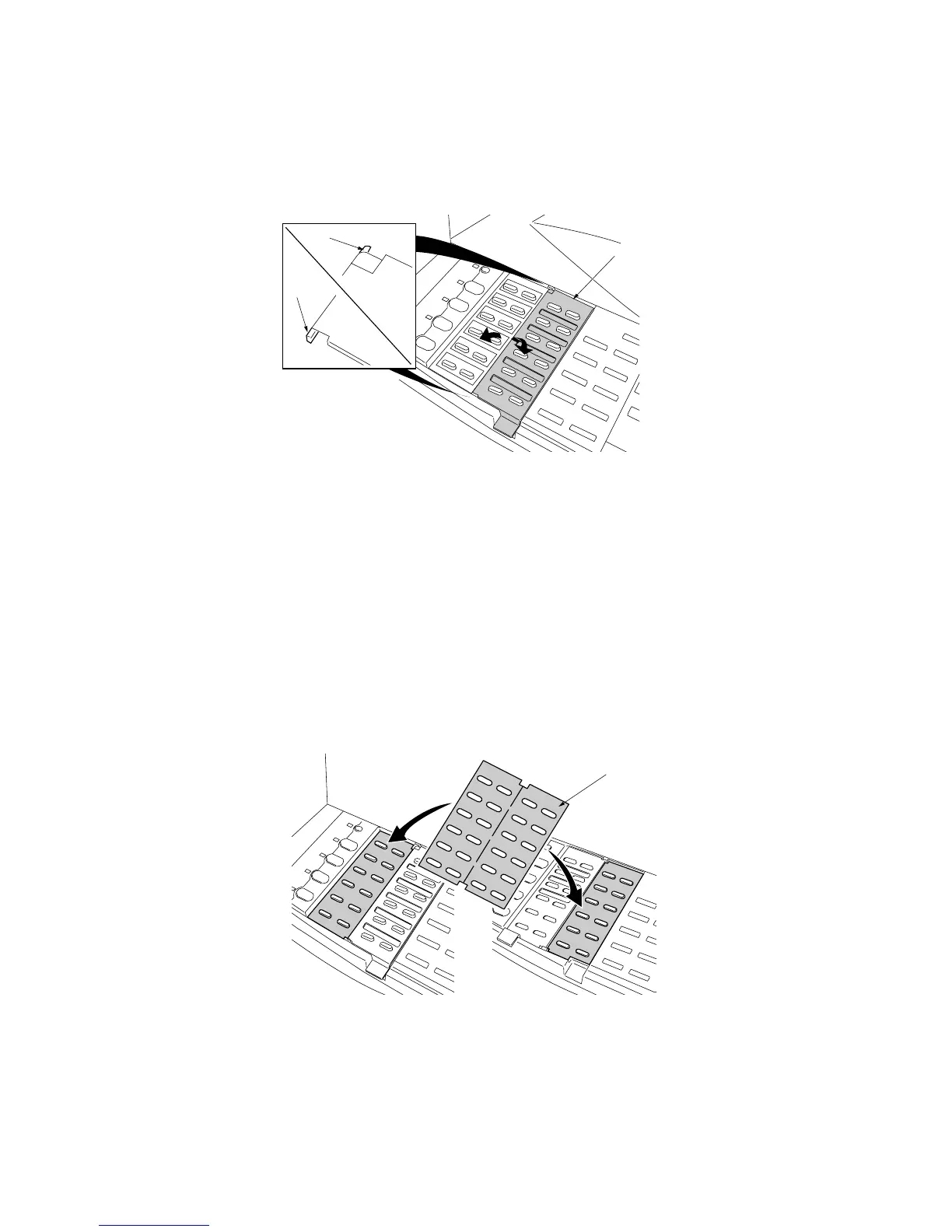

Attach the cover plate.
27. Incurvate the cover plate a little and then insert the
upper and lower projections to the fitting parts of the
operation section to attach.
28. Check that the cover plate smoothly moves on either
side.
Attach the one-touch sheet.
29. Divide the one-touch sheet of the corresponding
language into two parts and then mount them on the
one-touch securing sheet each.
Bring back the left cover of the operation section that
has been removed by Procedure 19, operation
section sheet that has been removed by Procedure
21, operation section sheet for fax that corresponds
to the unused languages, and the one-touch sheet.
Cover plate
Projection
Projection
One-touch sheet
Figure 1-3-82
Figure 1-3-83
To Next Page
