1-3-40
2DA/2DB

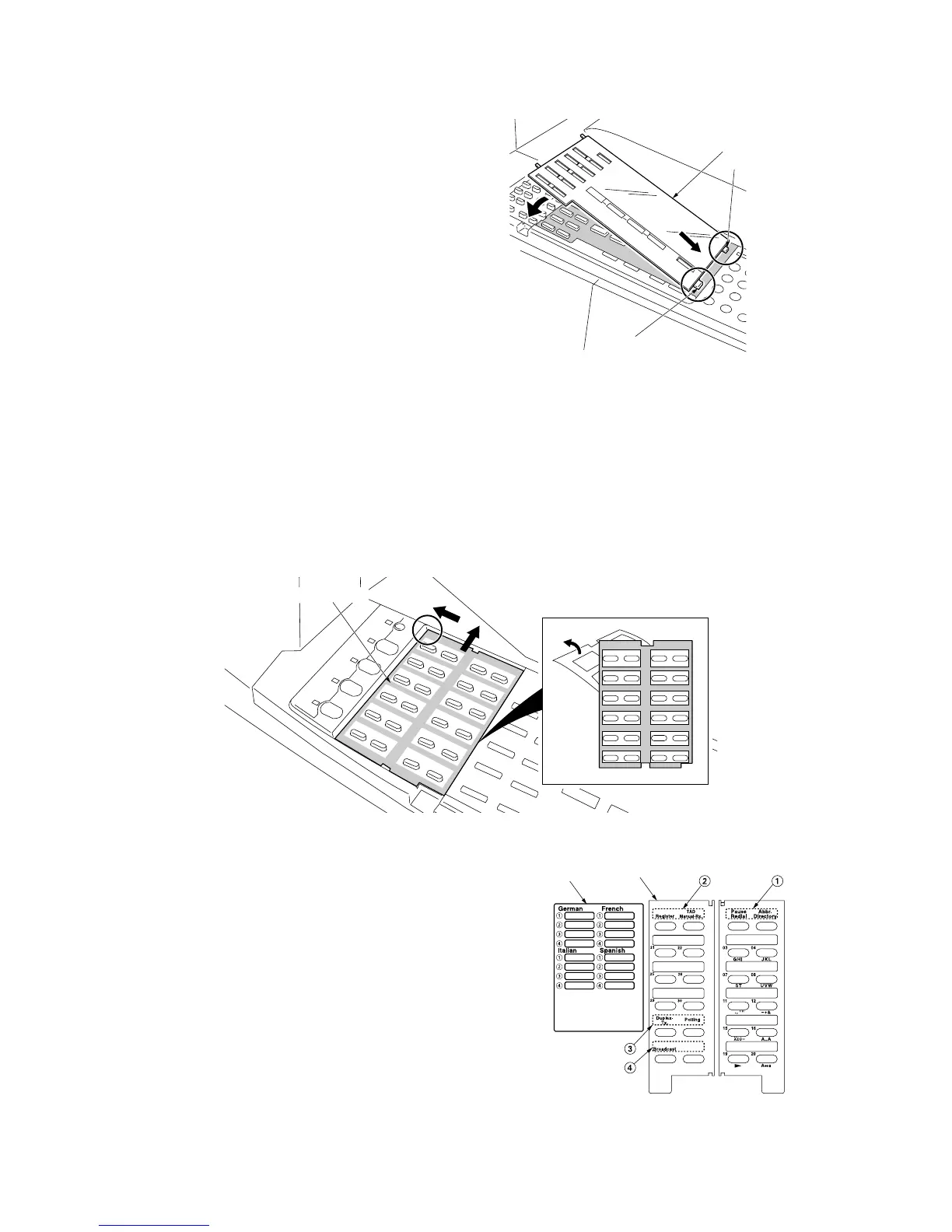

22. Fit in the right-side two pawls of the operation section
sheet cover that has been removed by Procedure 20
and then attach the operation section sheet cover to
its original position.
Attach the one-touch securing sheet.
23. Remove the release paper from the one-touch
securing sheet.
24. Adhere the one-touch securing sheet on the base
frame of the one-touch key so that it sticks fast to the
surface while matching the top surface to the top left
corner and firmly pressing the whole area down as
shown in the illustration.
25. Push all the one-touch keys to check that the one-
touch securing sheet does not block any one-touch
key.
Attach the fax label (220-240 V specifications only).
26. Adhere the fax labels (1) to (4) of the fax label
sheet of the corresponding language at the positions
for the cover plate shown in the illustration.
Operation section sheet cover
Pawl
Pawl
One-touch securing sheet
Fax label sheet
Cover plate
Figure 1-3-81
Figure 1-3-80
Figure 1-3-79
To Next Page
