UTC Fire and Security FenwalNET 8000-ML - Page 97

Installation
P/N 06-237041-001 2-49 February 2011

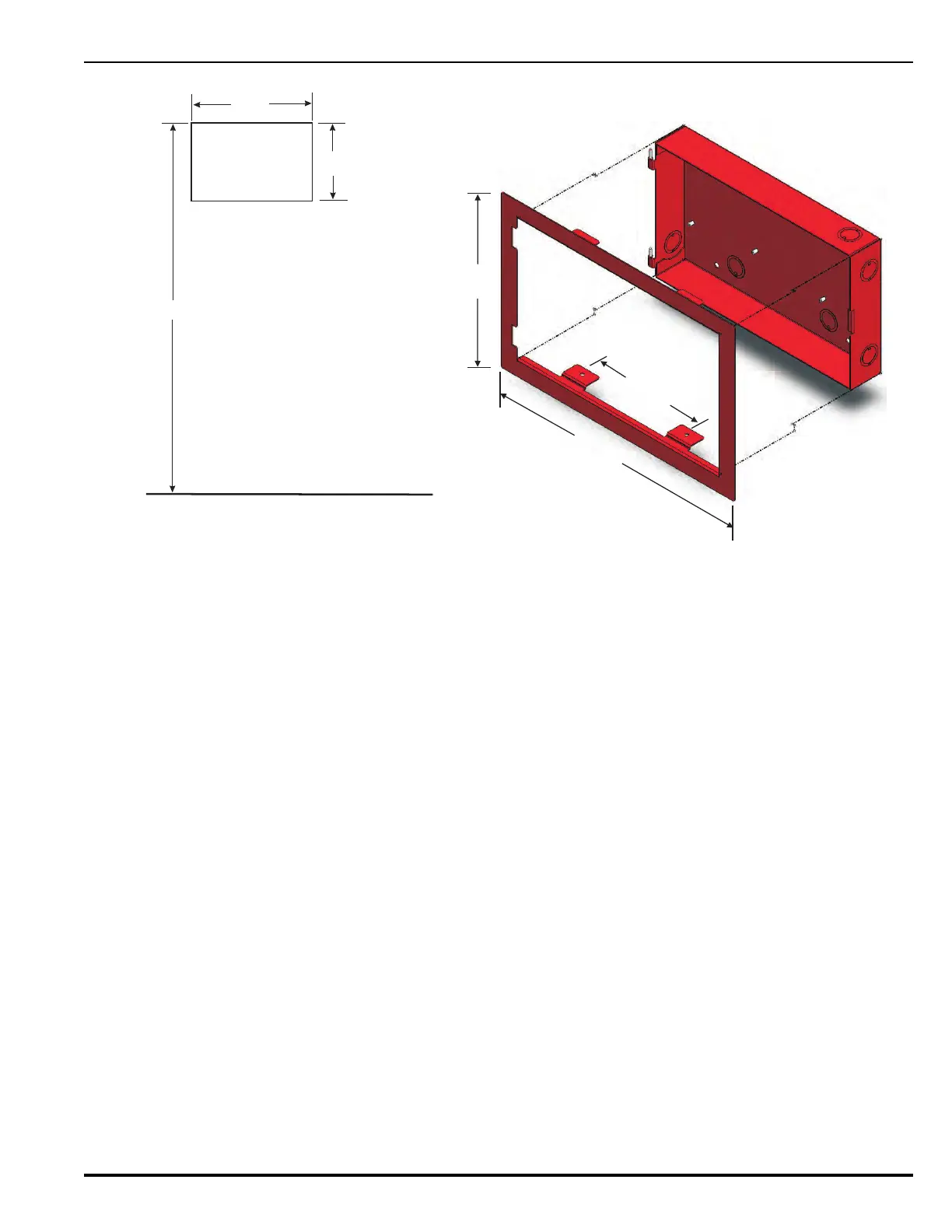

Figure 2-40. Semi-Flush Mounting of Remote Enclosure (shown without RDCM or R-LAM modules)
13 in.
66 in.
8 in.
(FLOOR)
9.8 in.
(250 mm)
8.5 in.
(216 mm)
15.0 in.
(381 mm)
(Rough Opening)
