K. Extra equipment
2. Adjustment for the slow engagement
1
3
2
69---131
A

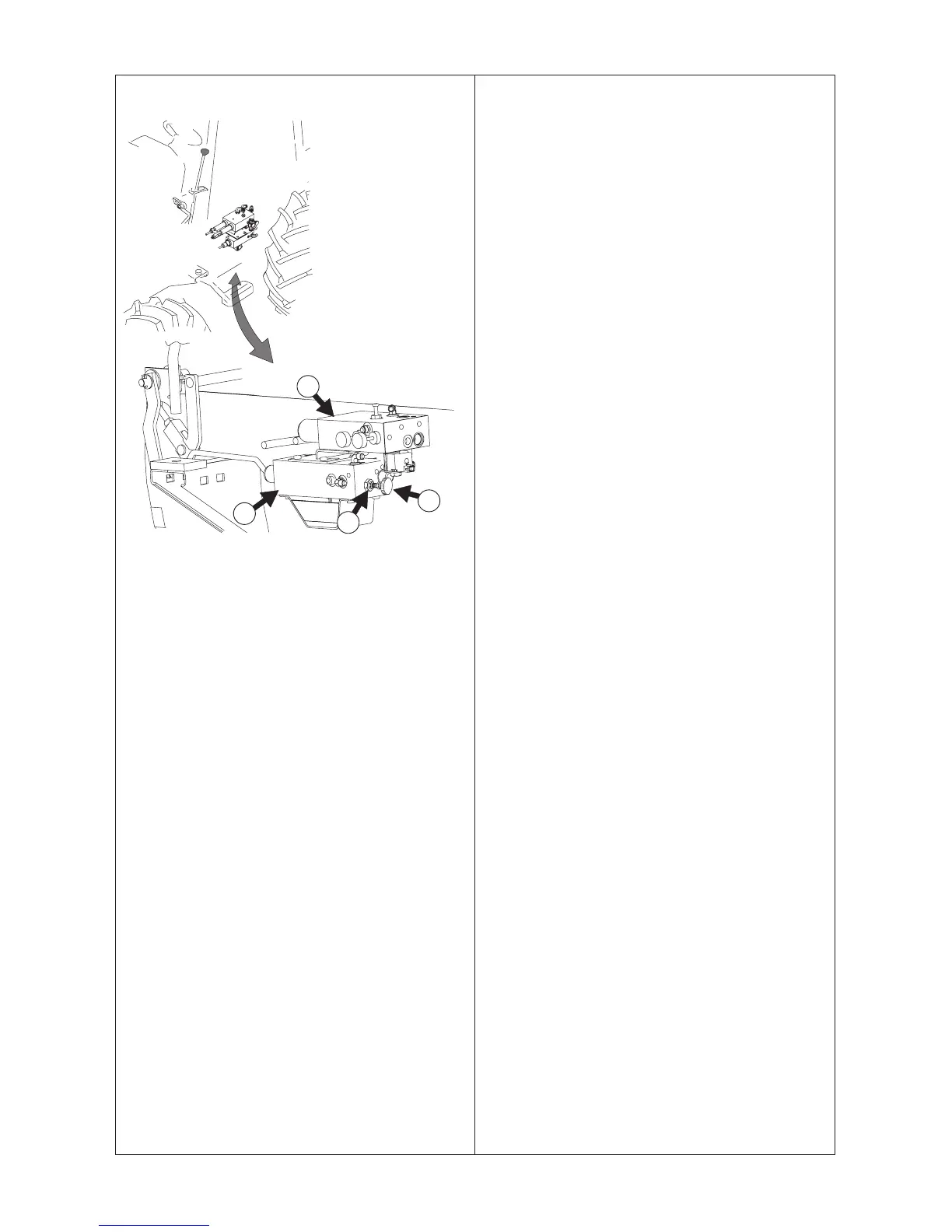

The valve plate, where the adjustment is done, is situated
on the left side of the centre frame (= fuel tank).
If the tractor is equipped with both the HiShift drive clutch
and with the HiShift of the rear PTO, the highest valve pla-
te (1) is for the drive clutch and the lowest (2) for the PTO
switch.
By rotating the adjusting knob (3) the engagement speed
of the PTO will be adjusted (the lock nut (A) has to be
slackened). The basic settings are 3,5 turns open, the
adjustment range is between+/--- 1 turns.
By rotating the adjusting knob clockwise (= in the closed
direction) the clutch engages slower.
By rotating the adjusting knob counter---clockwise (=
outwards) the clutch engages faster.
NOTE: The clutch pedal rising speed can not be
adjusted too slow, in order that the clutch does not
slip and wear unnecessarily. The minimum value is
open 2,5 turns, because of clutch slip.
