K. Extra equipment
K 2.8.3. Wagon towing device
1. General
DANGER: According to Law the driver has
to ensure that all relevant precautions are
followed (lockings) etc.
1
2
3
3
69---133

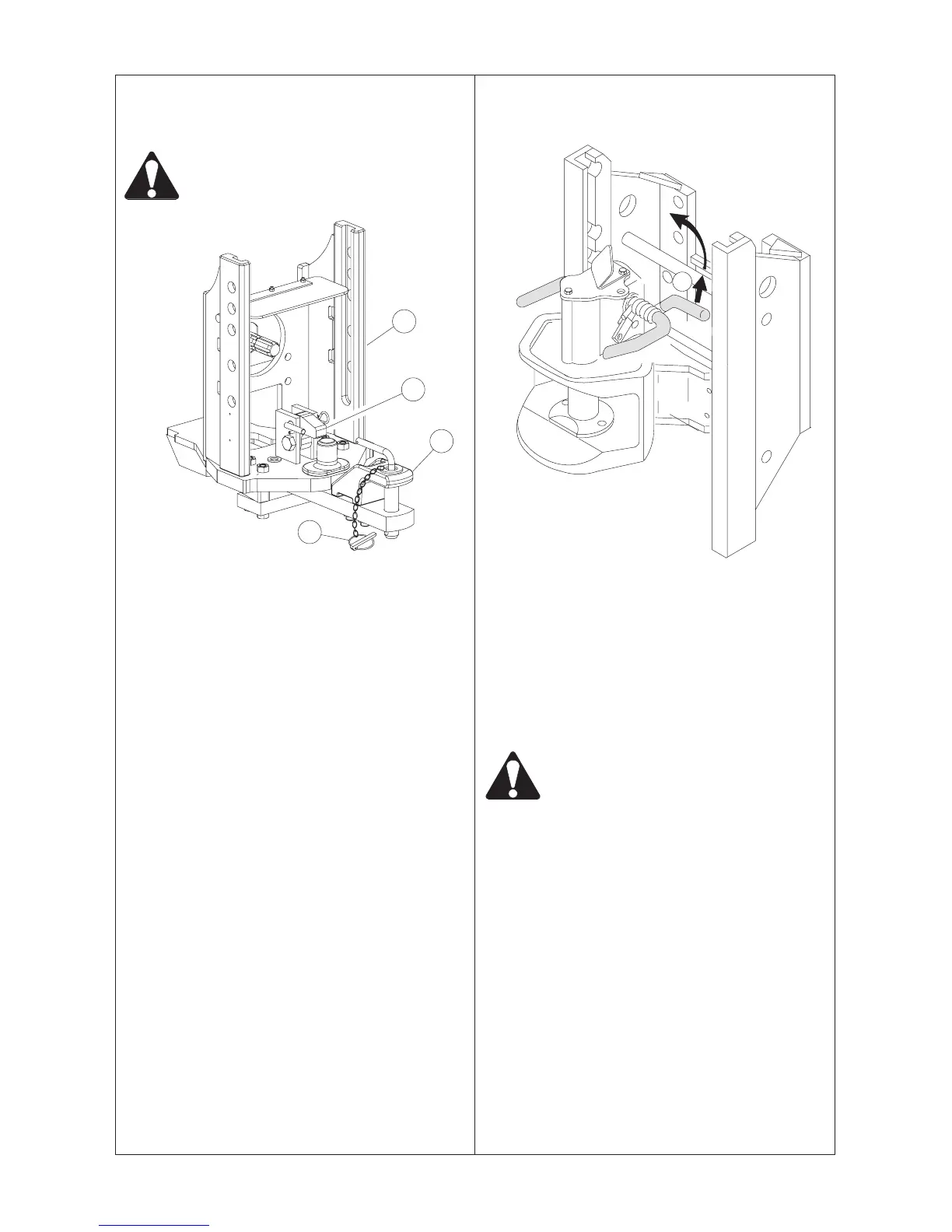

In the picture is the wagon towing device frame with fixed
hitch (Piton Fix) (1) + agricultural towing device (2). The
locking (3) with trailer must be secured
2.
Instructions for operating hitch
2.1. Adjusting the height of the jaw
69---122,3
1
Adjusting the height of the mechanical and automatic jaws
happens in the same way.
The height of the jaw can be changed by first pulling lever
(1) upwards and then by turning it to left. Move the jaw
into the desired height and release the lever when the
locking pins lock the lever into the correct position and the
returning springs have relocated. The jaw can also be
lifted away from the frame by using this same lever.
A solid drawbar must be used because of the rotating
jaws.
DANGER: Changing the height of the jaw is
not possible if the lever (1) is broken or it is
dirty. The jaw must be locked and secured
every time the height has been changed.
