Valtra 900 - D 2.3. Controls on Right Hand Side; D 2.3.1. Driving

---35---
D. Instruments and controls
D 2.3. Controls on right hand side
D 2.3.1. Driving (1)

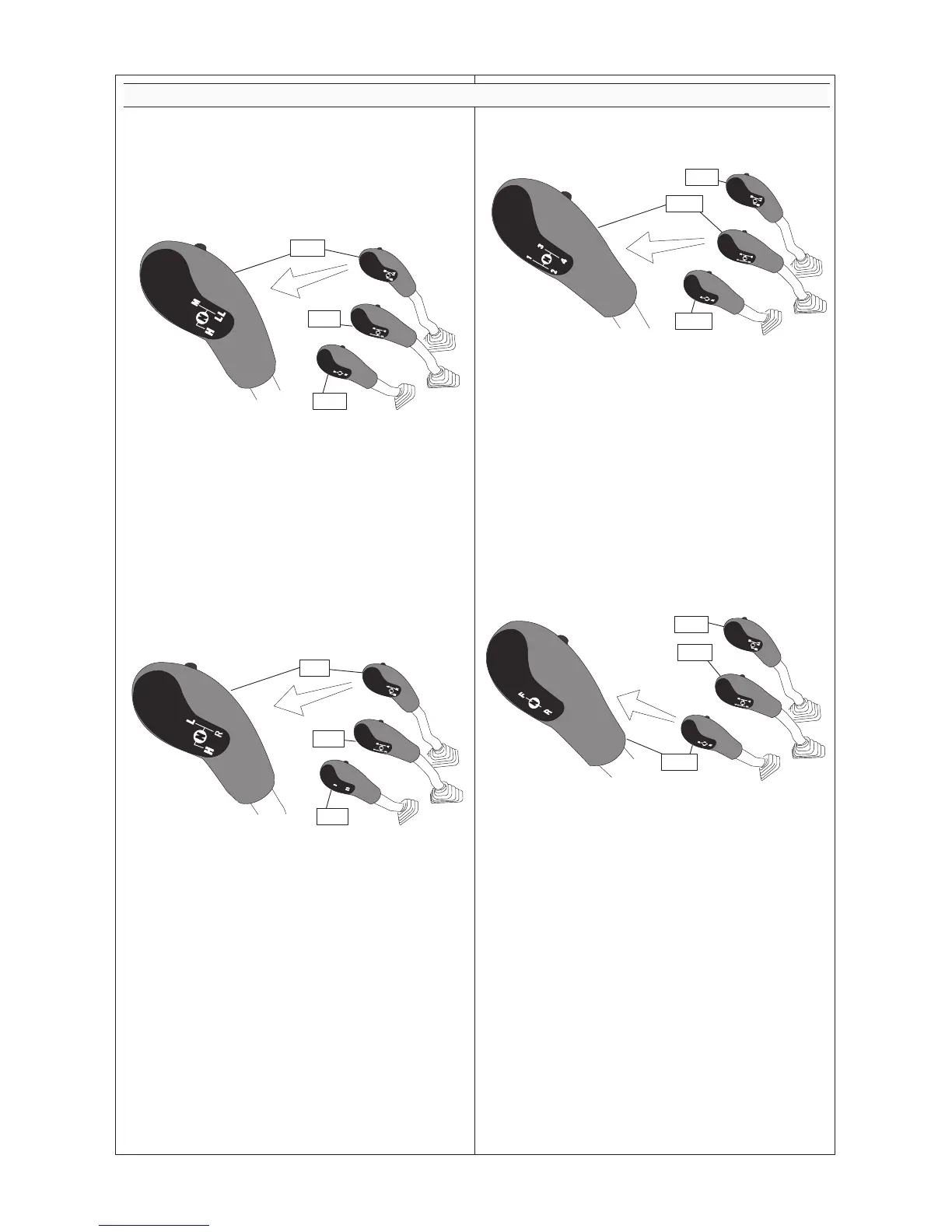

D 2.3.1.1. Range gear lever (1.1)
1. Range gear lever on shuttle models
69---26,8
1.2
1.3
1.1
The range lever selects three synchronized ranges.
Rear position on right (in the driving direction): crawling
speed range LL
Front position on right (in the driving direction): low
range M
Rear position on left (in the driving direction): high range
H
Low (M) and High (H) ranges are synchronized. When
changing ranges the clutch pedal must be depressed.
2. Range gear lever on overdrive models
69---26,84
1.2
1.3
1.1
The range gearbox has three synchronized gears.
Front position on right (in driving direction) = low range
(L---range)
Rear position on right (in the driving direction) = reverse
(R---range)
Rear position on left (in the driving direction) = high
range (H---range)
D 2.3.1.2. Speed gear lever (1.2)
69---26,85
1.1
1.3
1.2
This lever (1.2) selects four synchronized speed gears,
the middle position is neutral. The speed gears can be
used in all three speed ranges and also in the forward
and reverse gears.
When changing gear, the clutch pedal must be de-
pressed.
D 2.3.1.3. Forward/reverse gear lever/ overdrive
lever (1
.3)
Depending on chosen transmission unit, this lever acts
either as forward/reverse gear lever or as overdrive lever.
1. Forward/reverse gear lever
69---26,81
1.1
1.2
1.3
Lever in front position = forward speeds
Lever in rear position = reverse speeds
Gear change between Forwards & Reverse is
synchronized.
When changing driving direction, the tractor must be
stopped and clutch pedal depressed.
