Valtra 900 - I 6.1.1. 2 WD Axle; I 6.1.2. Powered Front Axle

---93---
I. Checks and adjustments
I 6.1.1. 2WD axle
380 Nm
50 Nm
A3565---141
2
1

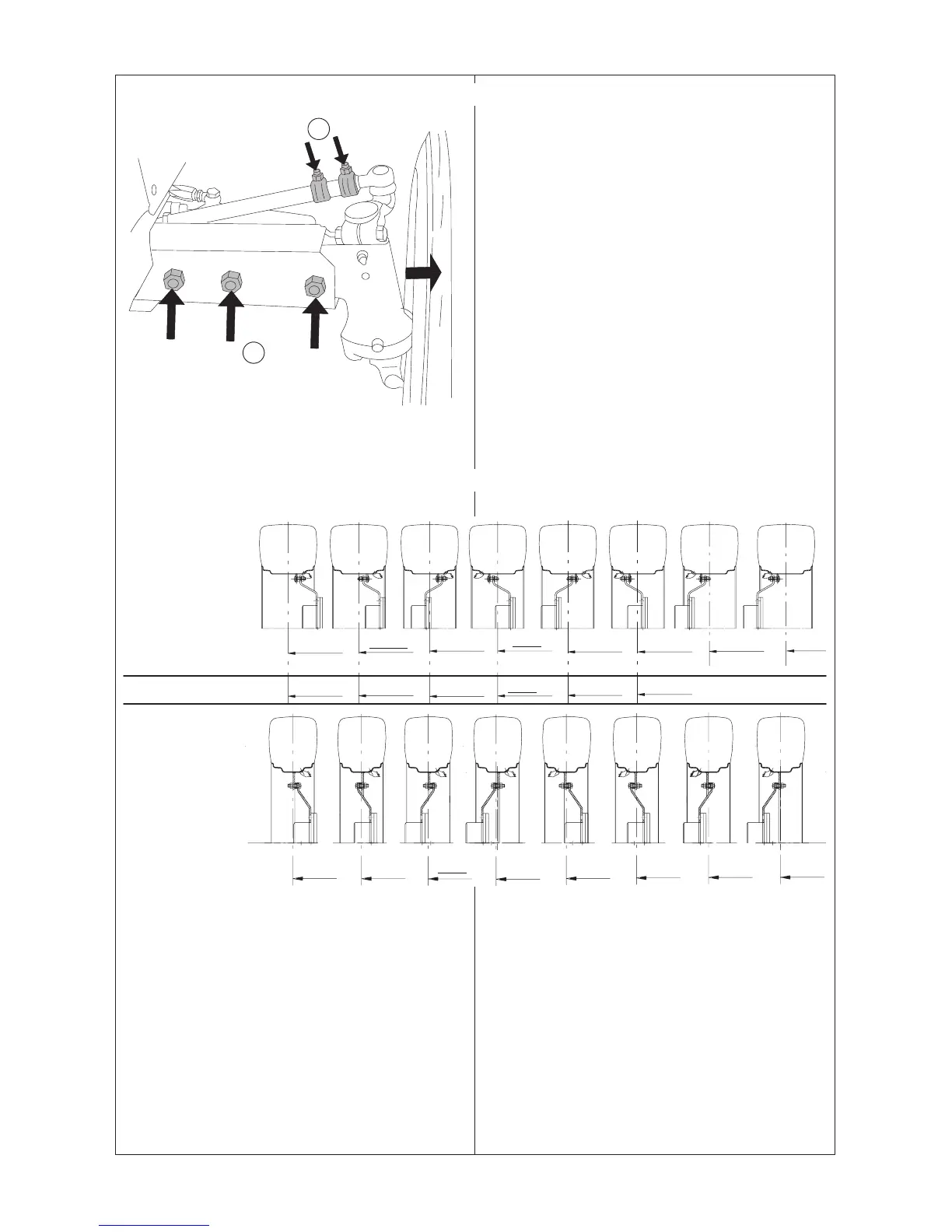

--- Raise the front end with a jack under the centre of the
front axle.
--- Loosen and remove the bolts of the front axle (1) and tie
rods (2)
--- Pull out the axle until the desired track width is obtained.
--- Move both tyres/tires the same distance.
--- The front axle has three different track width
possibilities.
Track widths, ”Specifications” are given on page 99. Refit
the bolts and tighten the nuts.
NOTE: Check the toe--- in after adjusting (instructions
on page 91).
I 6.1.2. Powered front axle
69---95,2
11.2---24,
12.4---24
1)
, 12.4R24
1)
13.6---24
2)
, 13.6R24
2)
,
14.9---24
2)
, 14.9R24
2)
,
340/85R24
2)
,
360/70R24
2)
,
380/70R24
2)
,
380/85R24
2)
,
420/70R24
2)
,
440/65R24
2)
1415
1520
1615
1815
12.4R28
1420
1715
1515
1820
1915
230/95R32
1380
1520
1320
1615
1)
1720
2)
1620
1475
1640
1735
1405
1495
1665
1755
The standard track widths are underlined.
Adjusting front and rear wheel track widths is done in the
same way.
Track width can be adjusted by changing the position of
the wheel rim in relation to the central disc or by turning
the wheel around (as shown above). Make sure that the
arrows on the upper part of the tyres/tires are pointing
forwards.
CAUTION: When altering the track width or fitting a
front---mounted loader, check that the wheels do not
go too far at maximum steering lock and axle pivoting
movement, if necessary restrict the steering lock with
the limiters fitted on the axle.
CAUTION: The toe---in of the front wheels must be
checked again after any adjustment of the track width.
The widest track width must not be used when running
with large front---mounted loaders. (Loadings on the
section ”Specifications” see page 96).
Lubricate the wheel nuts and tighten them to the
recommended values. Wheel nuts must be retightened
periodically (see technical specifications).
