---124---
K. Extra equipment
K 2.6. Frame and wheel
K 2.7. Cab and shields

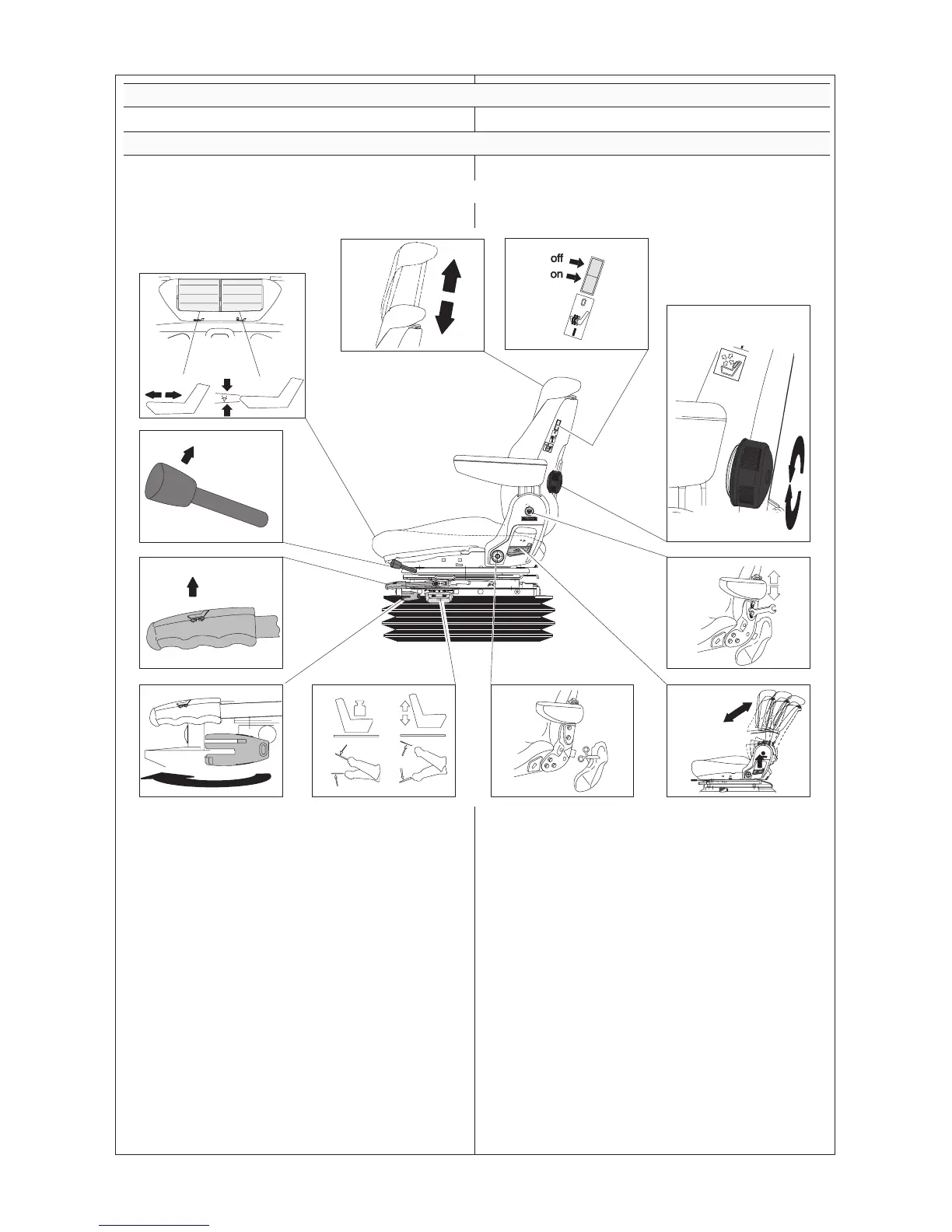

K 2.7.1. Air suspension---driver’s seat
11
54
3
6
8
1
1A
2
9
7
10
1
69---101,1
CAUTION: Do not attempt to adjust the seat while
driving increased risk of an accident.
1.
Seat functions
1.1. Handles for seat dept adjusting and seat
cushion angle adjusting (1)
The seat dept adjustment can be done by lifting up handle
(1), without changing the seat forward/rearward
adjustment
(3).
The seat cushion angle adjustment can be done by
lifting handle (1A).
1.2. Lock for turning the seat (2)
Release the lock by pulling the control upwards. The seat
can now be turned 180q counter clockwise. The seat has
set positions at 10q and clockwise 30q (e.g. can be used
when ploughing/plowing).
CAUTION: If the seat has been adjusted further back
than the lock limits, the seat can touch the cab side
trim when turning.
1.3. Forward/rearward adjusting (3)
Lift up the lever and push the seat forwards or rearwards.
1.4. Lock for longitudinal suspension (4)
When the lever is set, as in the drawing, the longitudinal
suspension is locked, the seat does not move in the
longitudinal direction. By turning the lever to the front
position (clockwise 180q) the lock for longitudinal
suspension is released.
1.5. Suspension and vertical adjustment (of seat) (5)
Suspension according to the driver weight
Pull the control lever. When the compressor starts release
the lever. The compressor runs until the suspension has
adjusted it’s self to the weight of the driver. If the driver is
lighter than the previous driver, the compressor runs mo-
