---129---
K. Extra equipment
K 2.8.2. Agricultural towing device
69---111

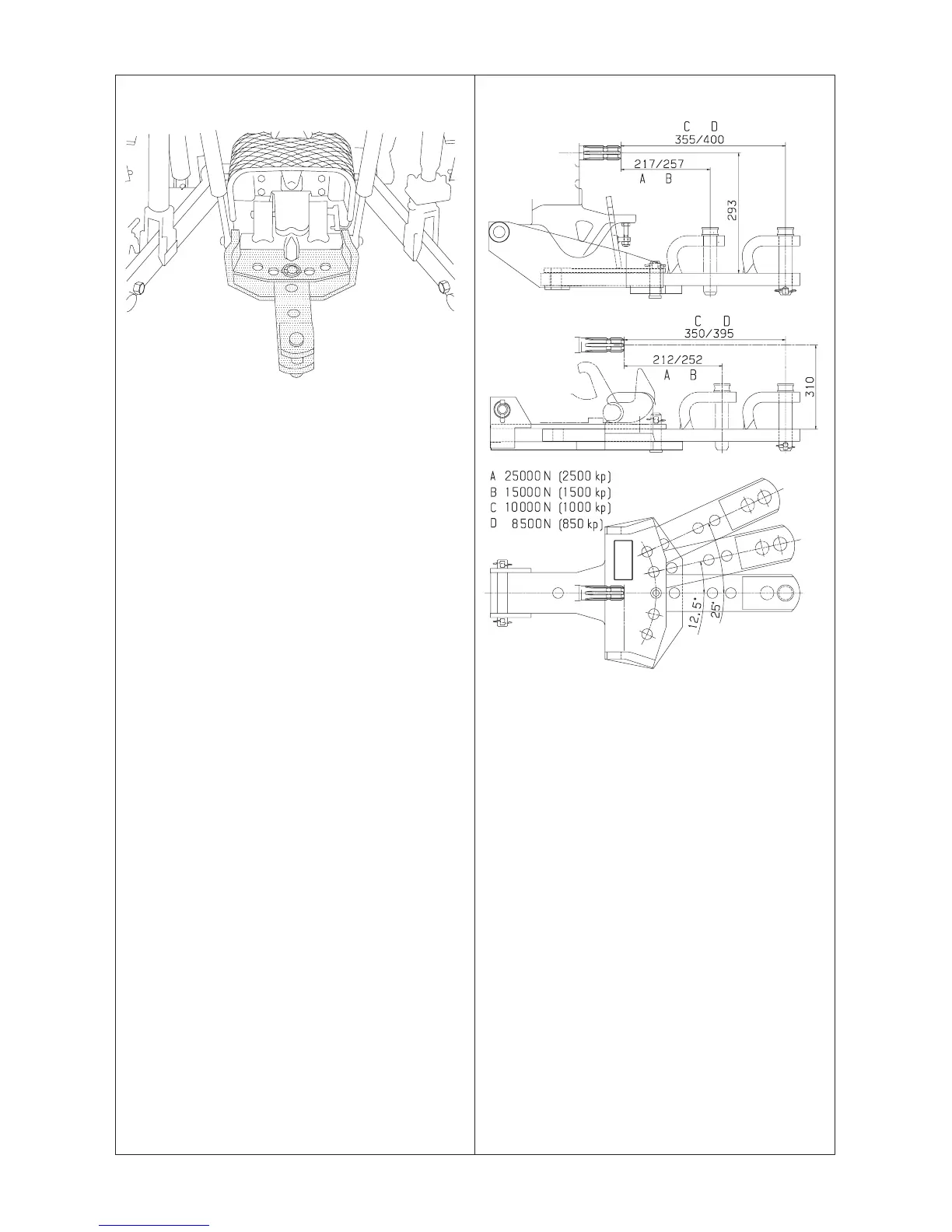

The agricultural towing device is used for the towing of
machines where only a small part of the weight rests on
the drawbar (e.g. shredders, bailing presses, 2---axle
trailer etc).
There are two models of the drawbar:
--- With hydraulic trailer hitch
--- Fixed without hydraulic trailer hitch
Both the models have almost the same properties.
Also both models are suitable for North America.
1.
Specifications
69---132
Distance between hitch point and power take---off and
corresponding permissible vertical loading. Max
permissible vertical loading on the drawbar is 5000 kg.
--- Distance between pulling pin and power take---off can
be adjusted in four positions
--- In the North America --- model only the three outermost
positions can be to used
--- In the two rear positions the drawbar can be turned
sideways to two different positions (¦12,5_ and
¦25_).
