Valtra 900 - K 2.4. Brake System; 1 Compressor

---120---
K. Extra equipment
K 2.4. Brake system
K 2.4.1. Trailer air pressure brakes (press air compressor)
1
2
2A
3
3A
4
5
6
7
7A
8
9
10
11
12
14
15
13
69---99,2
2A

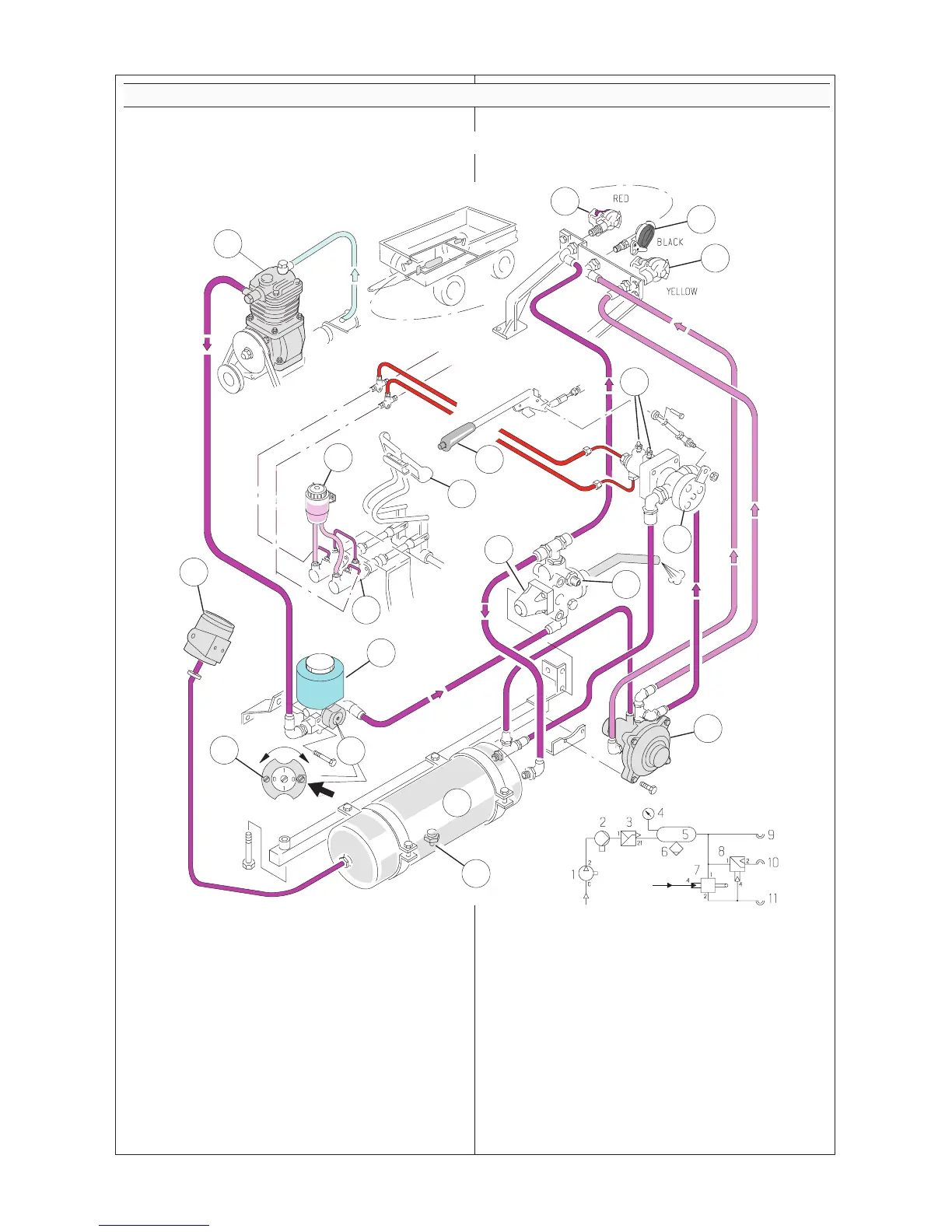

1. The construction of the air pressure brakes
1 Compressor
2 Anti freeze device
2A Flow control valve for anti freeze device
3 Pressure adjuster
3A Coupling for output of compressed air
4 Pressure meter
5 Air pressure container
6 Water draining valve
7 Steering valve for trailer
7A Bleeding valves
8 Steering valve for trailer, one pipe system
9 Two pipe system; container line (red)
10 One pipe system connector (black)
11 Two pipe system; brake line (yellow)
12 Brake pedals
13 Brake fluid reservoir, common with the tractor brakes
14 Main brake cylinders
15 Parking brake lever
2.
Instructions for operating
On the two hose system the trailer is connected to two
different couplings (9 and 11), which have been marked
as follows:
--- Container line --- red cover
--- Brake line --- yellow cover
On the one hose system the trailer is connected to the
coupling (10) with a black cover (brake line) (used in
