H. Periodic maintenance
WARNING: Brake fluid is corrosive and
poisonous and must be handled carefully at
all times (it also corrodes the paint).
H 4.6. Grease door hinges (15)
There are nipples on door hinges. Use Valtra Universal
Grease.
H 5. Maintenance every 500 hours

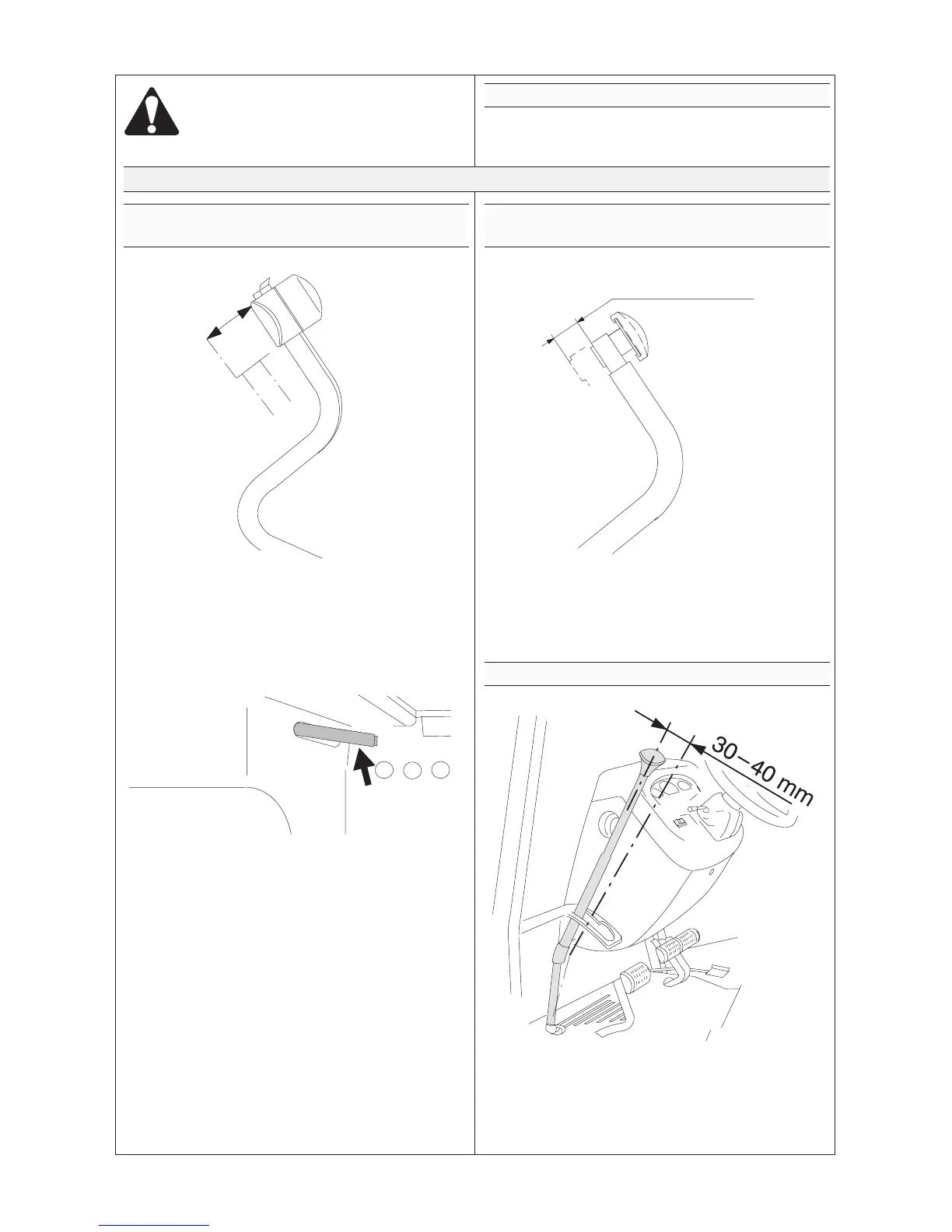

H 5.1. Check free travel of brake
pedals (16)
A3565---102,1
60 mm
The free travel should be 60 mm (2.4 in) when the pedals
are connected together. Adjust the free travel if necessary
(see under ” checks and adjustments” on page 90).
H 5.1.1. Adjusting parking brake
65---73
The parking brake acts on the foot brake mechanism
mechanically by means of a rod.
Adjust the free travel if necessary (see under ” Checks
and Adjustments” on page 90).
H 5.2. Check pedal free travel of
propulsion clutch (17)
A3565---104
20---25 mm
Slowly press down the clutch pedal until the clearance is
taken up and declutching begins. The free travel should
be 20 ---25 mm. Adjust the free travel if necessary (see
under ”Checks and Adjustments” on page 89).
H 5.3. Check the travel of PTO lever (18)
69---74
The free travel at the end of the lever should be 30 ---40
mm. Adjust the free travel when necessary (see under
”Checks and Adjustments” on page 89).
