H. Periodic maintenance

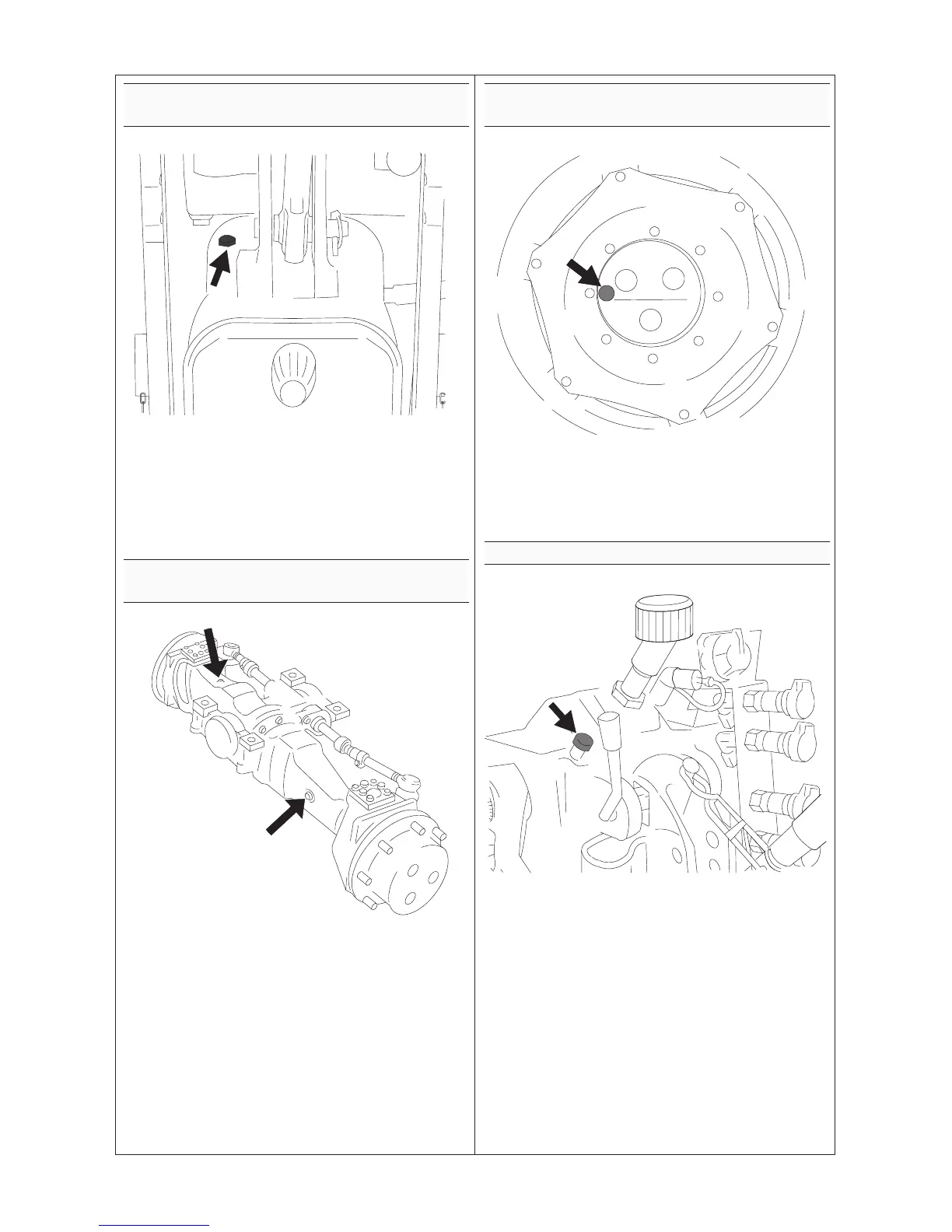

H 5.4. Check oil level in power
transmission (19)
65---75
The oil lever should come between the max. and min.
marks on the dipstick. Top up with oil when necessary. Oil
quality should be in accordance with the table on
page 63.
The distance between max and min marks on the dipstick
corresponds 3 liters of oil.
H 5.5. Check oil level in differential
(powered front axle) (20)
A3565---107
The oil lever should come up to the filling plug hole. Top
up when necessary.
Oil quality should be in accordance with the table on
page 63.
H 5.6. Check oil level in hub reduction
gears
(powered front axle) (21)
A3565---108
Turn the wheel until the oil surface indicator line is
horizontal. The oil surface should be level with the hole.
Add more oil if necessary. Oil quality should be in
accordance with the table on page 63.
H 5.7. Check hydraulic oil level (22)
69---76
When the hydraulic system is filled to the minimum mark
on the dipstick the total volume of oil is 25 l, of which 14 l
is available for the auxiliary hydraulics.
It is, however, recommended that the system be filled to
the maximum mark on the dipstick (total volume =35 l). In
this case 24 l is available for the auxiliary hydraulics.
Adding oil, see point 25 change oil in hydraulic system.
Oil quality should be in accordance with the table on
page 63.
