D. Instruments and controls
D 1.4. Control panel in models with an electrohydraulic three---point linkage
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
1.10
1.11
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
3.1
3.2
3.3
3.4
69---12,4

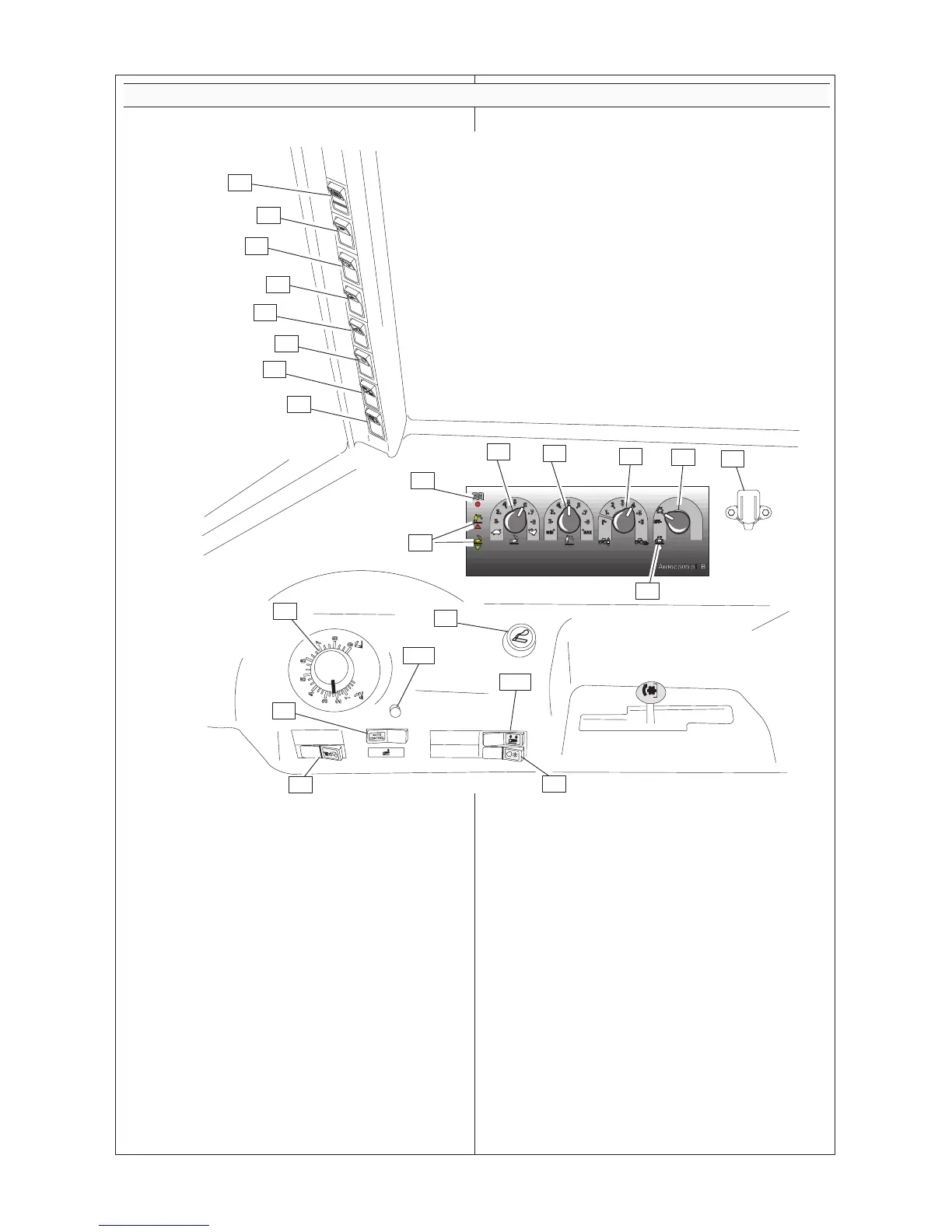

Rear linkage (electro hydraulically controlled hy-
draulic lift) 1
for more detail see page 40
1.1 Diagnose light (shows a possible fault)
1.2 Position control knob, hydraulic lift
1.3 Lift/stop/lower switch, hydraulic lift
1.4 Lift/lower indicator lights
1.5 Lowering speed selector, hydraulic lift
1.6 Transport height selector, hydraulic lift
1.7 Draft control selector, hydraulic lift
1.8 Drive balance control
1.9 Drive balance control light
1.10 Passing switch for position control knob = forced
lowering switch
1.11 Inner switch for connecting implement
(corresponding push---buttons are located on both
mudguards)
Side pillar control panel 2 for more detail see page 42
The places of the switches can vary depending on the
equipment.
2.1 Rear window wiper and washer, extra equipment
2.2 Change over switch for LCD---display in Agroline---in-
strument panel, if the tractor is equipped with Agro-
line---instrument panel
2.3 Switch for front working lights, extra equipment
2.4 Upper headlights, extra equipment
2.5 Switch for rear working lights
2.6 Switch for rotating warning light, extra equipment
2.7 Control Stop switch, extra equipment
2.8 Electric main circuit switch, extra equipment
Other controls 3 for more detail see page 43
3.1 3 pin power socket
3.2 Lighter (also for mechanical model)
3.3 Switch for front PTO, extra equipment
3.4 Switch for rear fog light, extra equipment
