F. Operating instructions
F 3. Three---point linkage
65---40
The tractors are supplied with Category 2 telescopic lower
links. Hook ends are available as optional equipment.
F 3.1. Lifting links
65---40,1

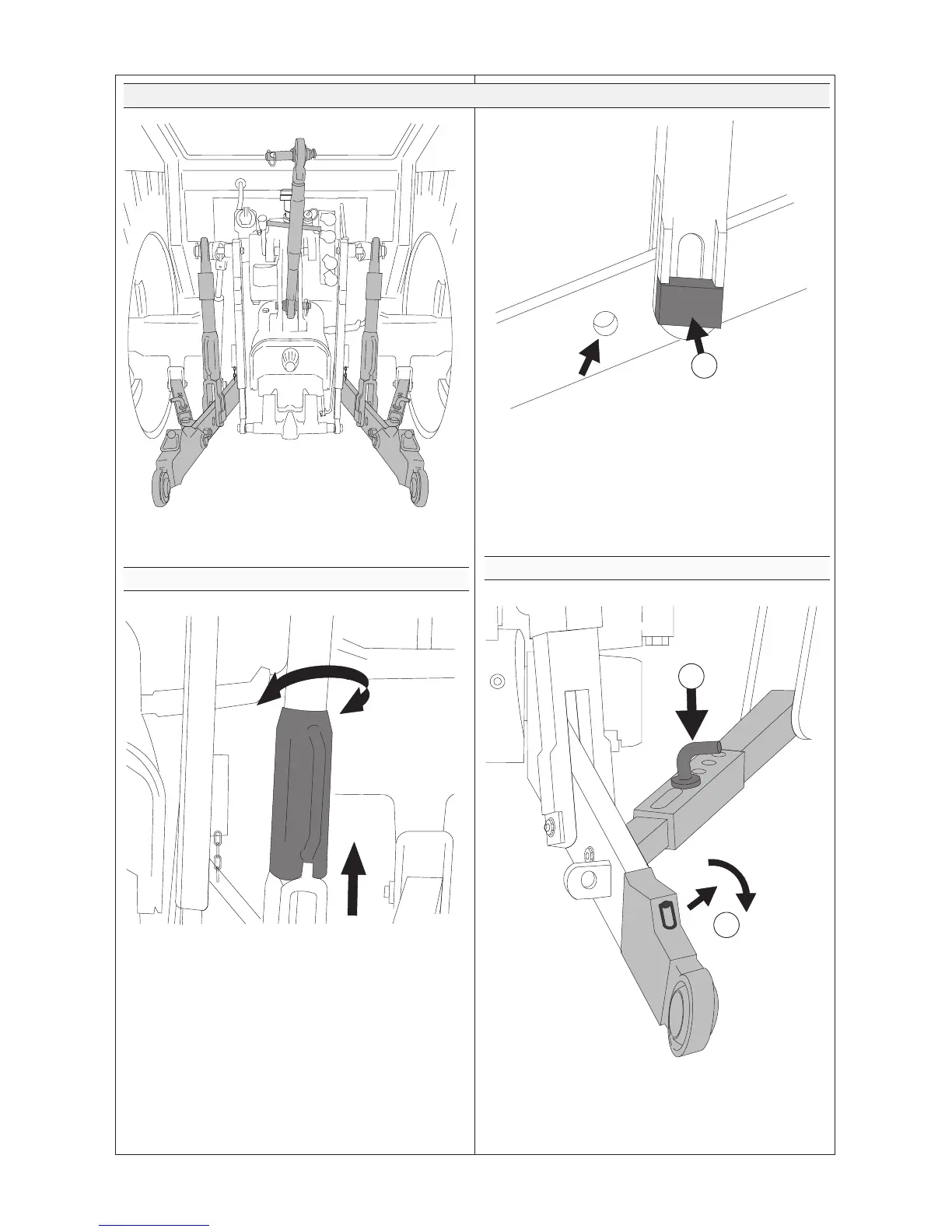

The length of the lifting links can be adjusted by lifting the
levelling screws up and turning them in the required
direction. After adjustment the levelling screws must be
lowered back down to the locked position.
A3565---65,3
1
The lifting links can be attached to the lower links at one
of two holes. Different holes give different lifting ranges
and lifting power for the lower links.
In addition, the carrier pin (1) can be fitted to the lower
links at two different positions; one gives a fixed position
and the other allows slight vertical movement of the lower
links.
F 3.2. Check links
B
A
65---41
Check links are used to limit the lateral movement of the
lower links.
By changing position of the check link attaching pin (A),
