C. General description
69---5,3
1
2
3
44
5
5
66
77
8
9
12
13
14
15
16
17
18
18
11
10

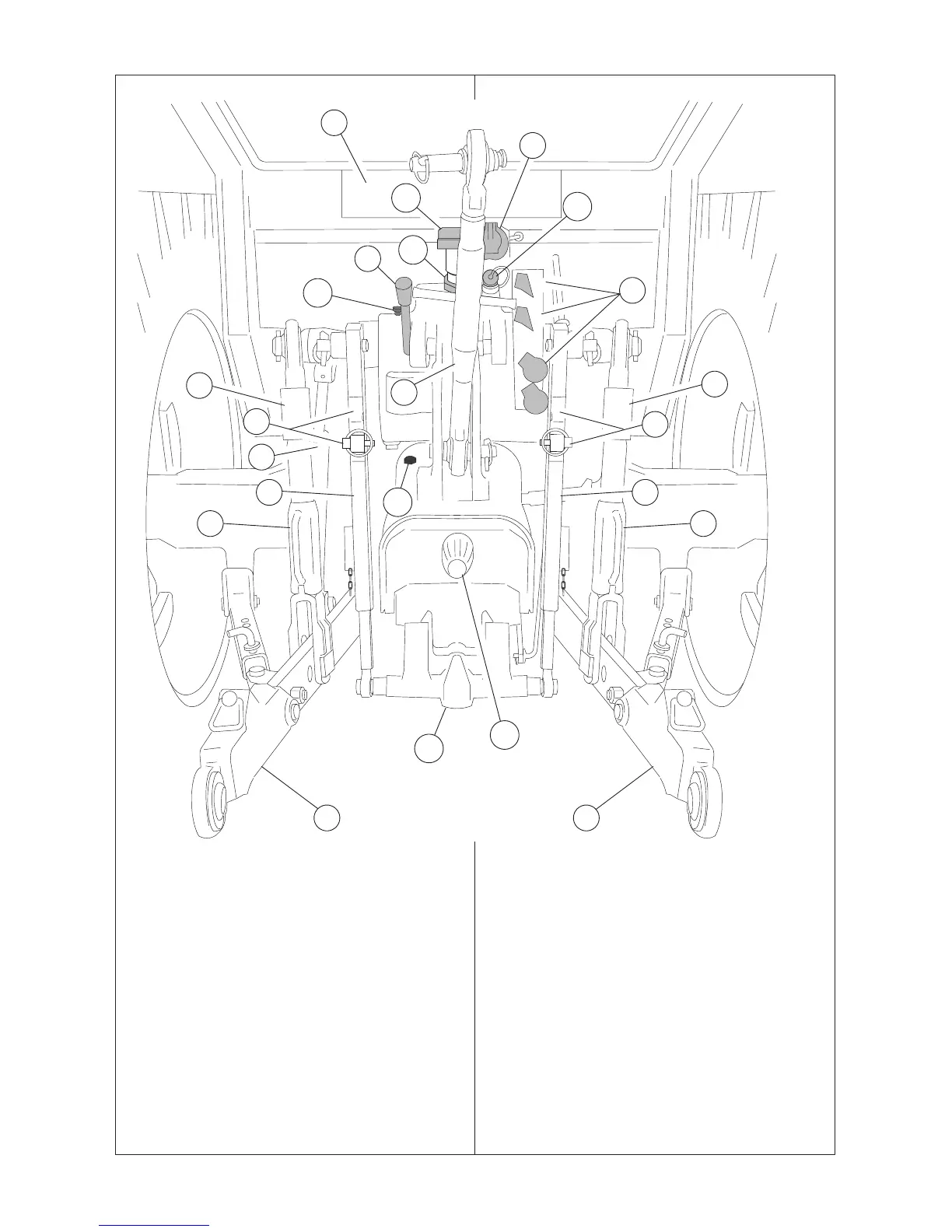

Rear view of tractor:
1. Quick---release couplings, auxiliary hydraulics
2. Trailer socket
3. Detent for disengaging draft control (not on electro
hydraulically controlled hydraulic lift)
4. Lowering link
5. Lifting link
6. Levelling gear
7. Lifting link, trailer hitch (extra equipment, with the
hydraulic hitch)
8. Extra lifting cylinder
9. Top link
10. Incorporating breather, hydraulic system
11. Oil filling, hydraulic system
12. Dipstick, hydraulic system
13. Auxiliary hydraulic system return coupling
14. Trailer hitch (extra equipment, several different
alternatives, for more detailed see beginning of
page 127)
15. Power take ---off shaft (safety cap)
16. Transmission oil filling cap and dipstick
17. Inlet cover, remote control cables
18. Ring pins bracket
