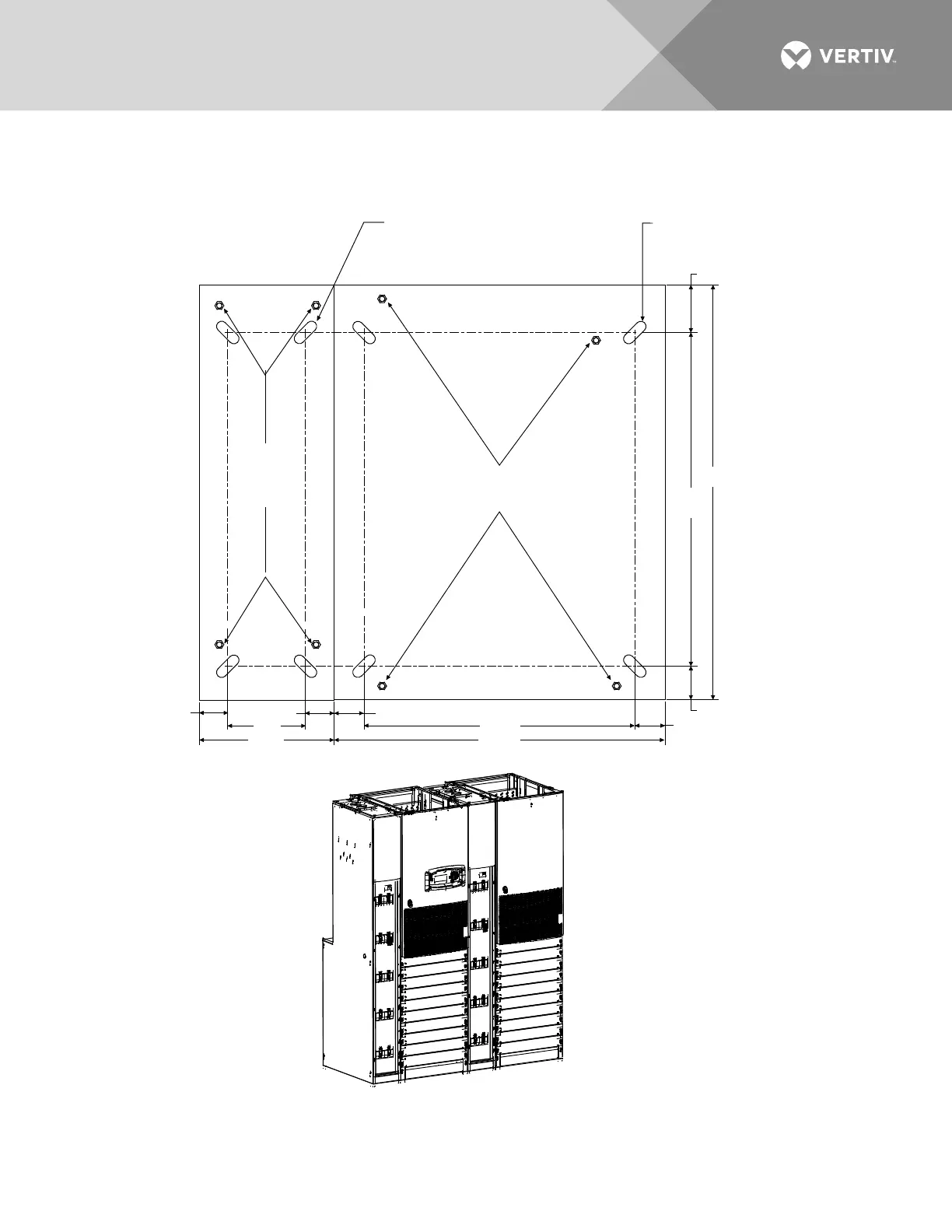

Figure 2: Floor Mounting Hole Dimensions (Primary and Secondary Power/Distribution Bays with PDSC) (all
dimensions in inches)
3/8-16 Floor
Leveling Bolts
FRONT
19.62
24.00
2.19
24.12
30.00
2.44
3.44
0.750 X 2.000 SLOT
(4 PLACES)
2.19
9.85
5.63
2.11
2.11
POWER/
DISTRIBUTION BAY
AC POWER
DISTRIBUTION
SERVICE CABINET
0.750 X 2.000 SLOT
(4 PLACES)
3/8-16
Floor
Leveling
Bolts
Floor Hole Drilling Pattern
Power/Distribution Bay
and PDSC
