Vertiv NetSure 8200 Series Installation Manual

Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
64

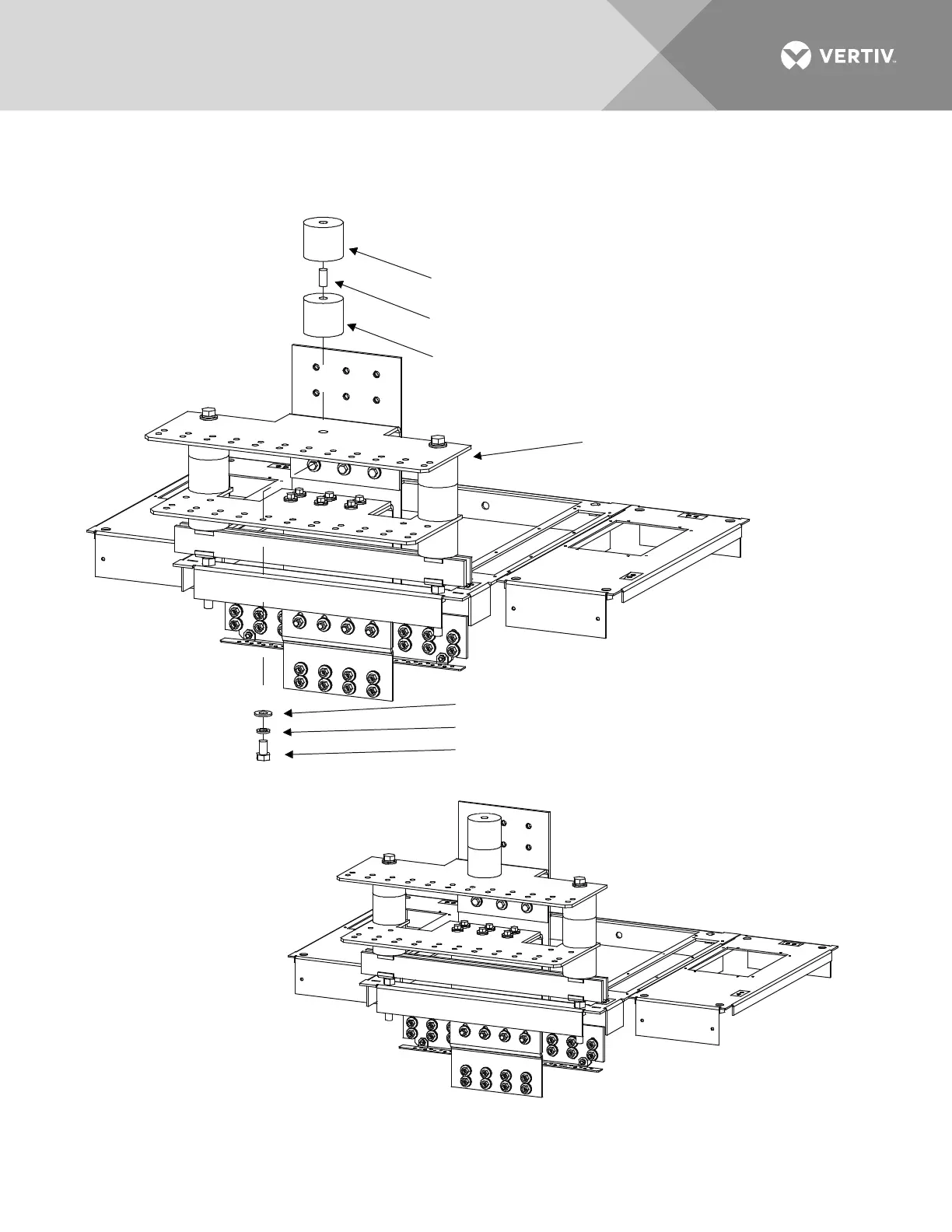

Figure 40: Power/Distribution Bay External Top-Mount Ground (Load Return) Busbar Assembly (P/N 514690
or 514691) Assembly Procedure Step 1
STEP 1
Install "Threaded Insulators".
(1) Threaded Insulator, P/N 245857200
(1) 5/8-11 x 1-1/4" Threaded Rod, P/N 334315700
(1) Threaded Insulator, P/N 245857200
Previously Assembled
Kit P/N 554873
(1) 5/8" Flat Washer, P/N 214201300
(1) 5/8" Lock Washer, P/N 215111800
(1) 5/8-11 x 1" Bolt, P/N 227655100
Torque to 715 in-lbs.
Assembled
View
Rear
Top
of Bay
Hand-Tighten
