Vertiv SmartCabinet - 4.2.4.1. Cabinet Data

Vertiv | SmartCabinet | User Manual 93
System Operation
The Nomenclature is as follows:
» Remove Component icon
» 
» Component List
» 
» Restore icon
» Save icon
» 



• The Overview page has dierent kinds of display mode depending on the components of that device.
Click the Restore icon to restore the page to the default state.
• Dierent devices have special charts to display the status specic to the device. These charts cannot be
deleted or congured,. However, the location of these charts can be changed.
4.2.4.1.2. Sampling
Click Sampling tab, Figure 4-53 displays the screen showing the signals of the selected device.

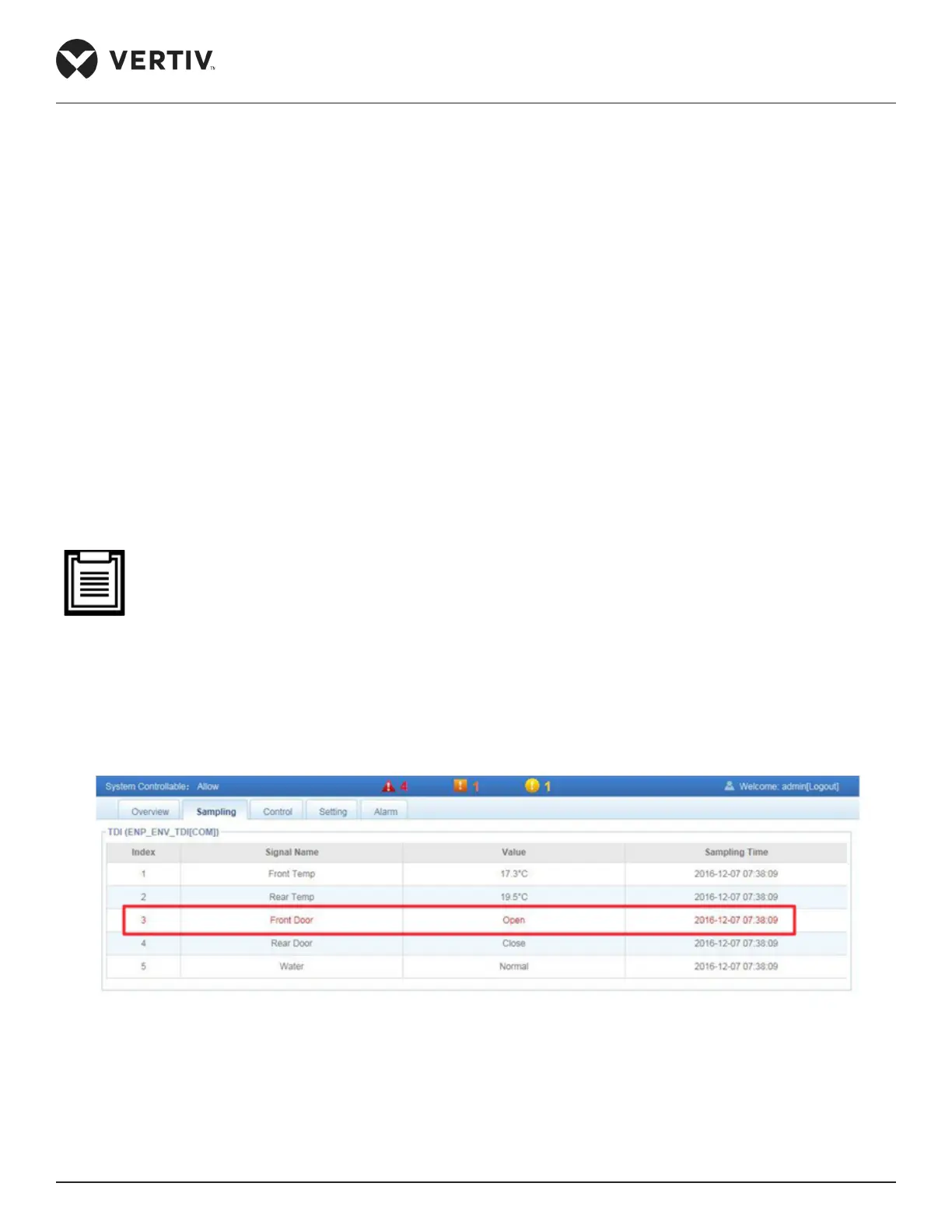

Figure 4-53 Sampling Signals
If some signal is in alarm status, it will be displayed in red color. In Figure 4-53, the highlighted red box shows
the Front door signal in red color.
