» On clicking the Add button, an alarm linkage expression is added. Once added, Click on Save and Apply
»

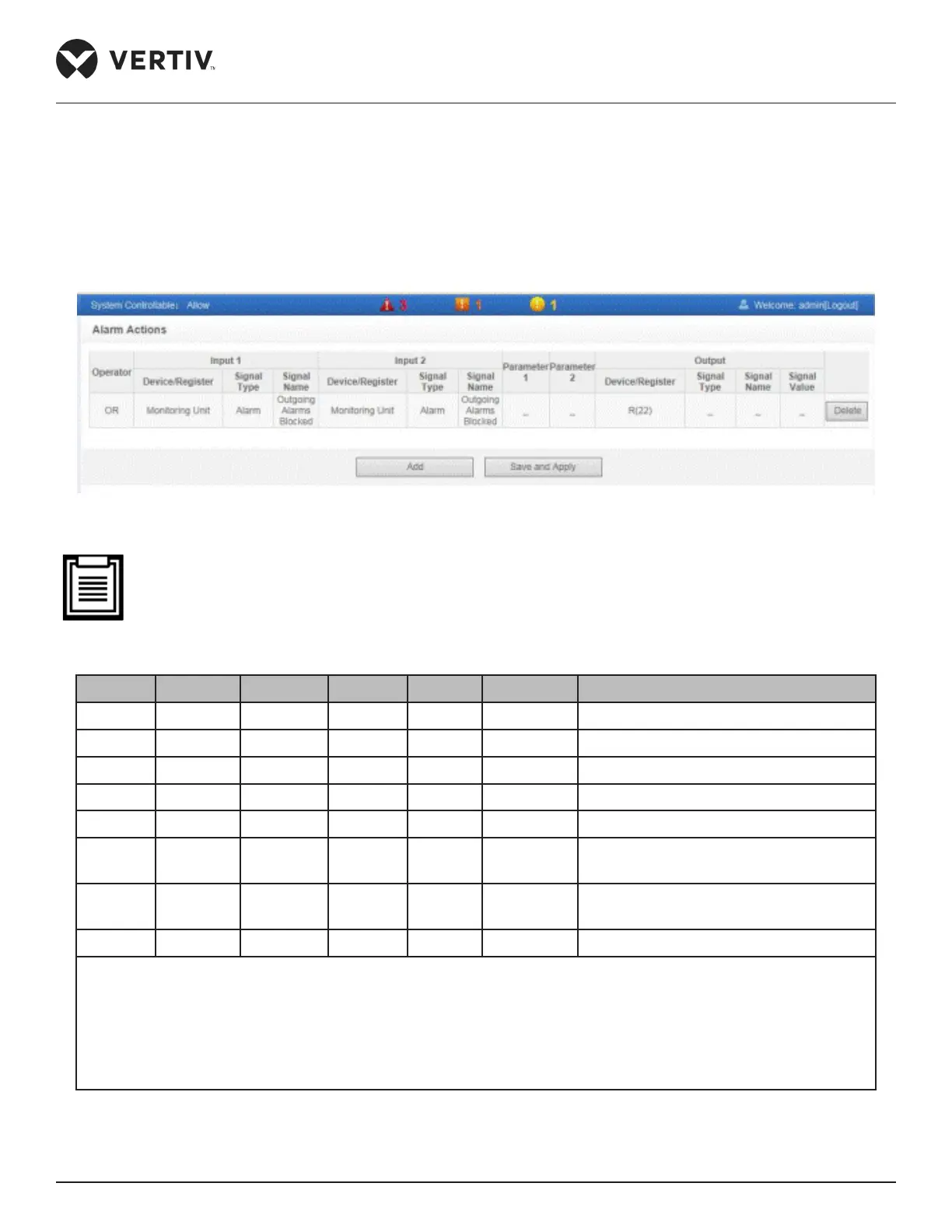

Refer to Figure 4-77 to see an illustration:
Figure 4-77 Alarm Linkage Conguration
• The operator usage in the Alarm linkage expressions are explained in Table 4-4.
Table 4-3
Operator Input 1 Input 2 Param 1 Param 2 Output Expression
SET / / P1 / Sout/Rout SET__P1_Output
AND Sin1 /Rin1 Sin2 /Rin2 / / Sout/Rout Sin1 [Rin1] AND Sin2 [Rin2] = Sout [Rout]
OR Sin1 /Rin1 Sin2 /Rin2 / / Sout/Rout Sin1 [Rin1] OR Sin2 [Rin2] = Sout [Rout]
NOT Sin1 /Rin1 / / / Sout/Rout Sin1 [Rin1] NOT = Sout [Rout]
XOR Sin1 /Rin1 Sin2 /Rin2 / / Sout/Rout Sin1 [Rin1] XOR Sin2 [Rin2] = Sout [Rout]
GT Sin1 /Rin1 / P1 P2 Sout/Rout
LT Sin1 /Rin1 / P1 P2 Sout/Rout
DS Sin1 /Rin1 / P1 / Sout/Rout Sin1 [Rin1] DS P1 Output to Sout [Rout]
Note:
1. Sin1, Rin1, Sin2, Rin2, P1, P2, Sout, Rout respectively refer to Signal1, Input1 Register, Signal2, Input2 Register,
Parameter1, Parameter2, Signal3, Output Register;
2. The input signal of logic operator AND/OR/NOT/XOR/DS can only be alarm signal;
4. All output signals can only be control signals, and the output signal value must be enumerated type.
