Vertiv | SmartCabinet | User Manual 19
System Installation
When using a hand pallet truck or an electric forklift truck, the tines of the hand pallet or electric forklift must
be aligned with the center of gravity to prevent the package from toppling or falling over as depicted in
Figure 2-8.

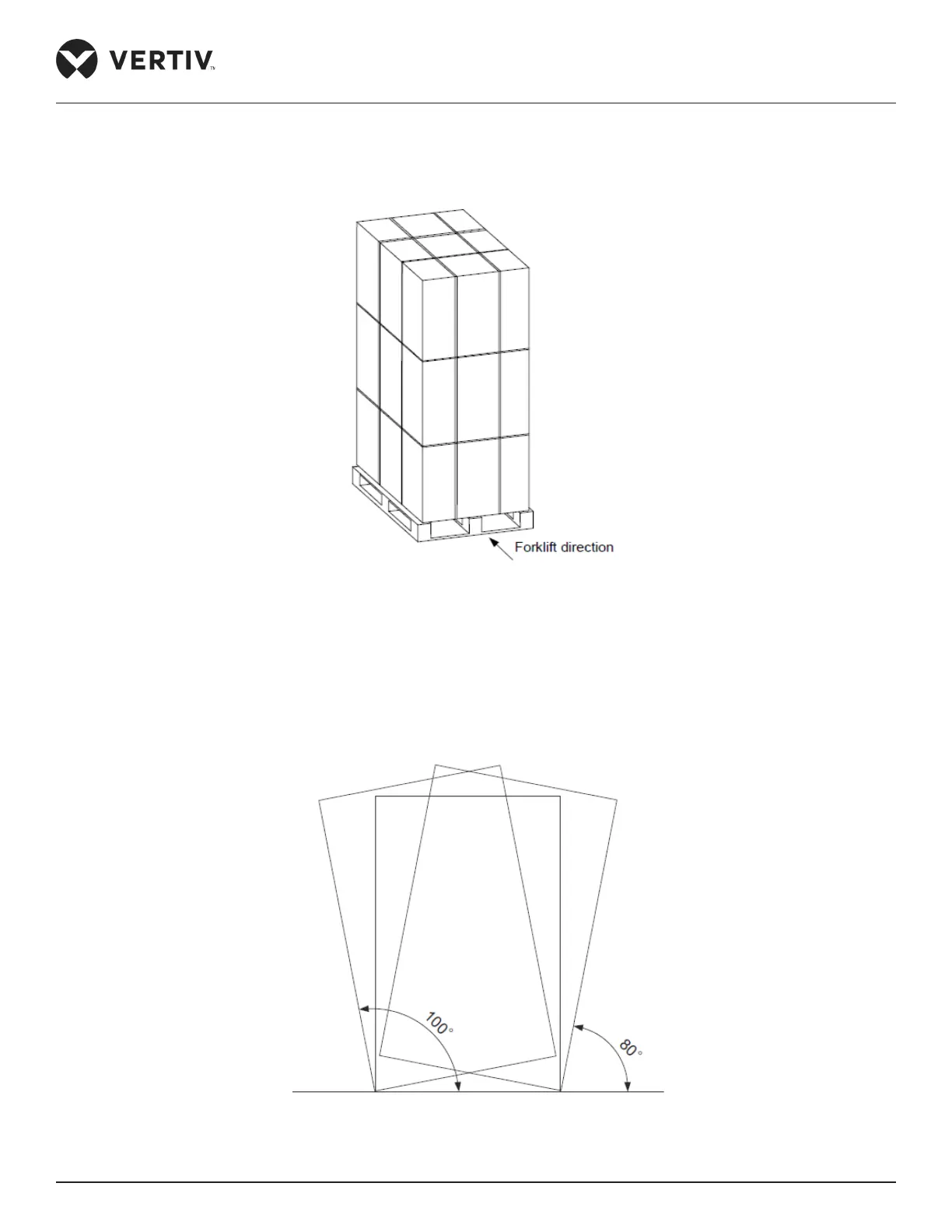

Figure 2-8 Forklift Direction
While moving the package, the obliquity has to be maintained at an angle of 80-100°.
Figure 2-9 depicts the 80° to 100° obliquity that is suitable to move the cabinet to the vicinity of the desired
location.
Figure 2-9 Carrying obliquity
