System Installation
3. Place the metal press pieces on the foot stands and use 4 screws to x the AC outdoor unit on the top plate

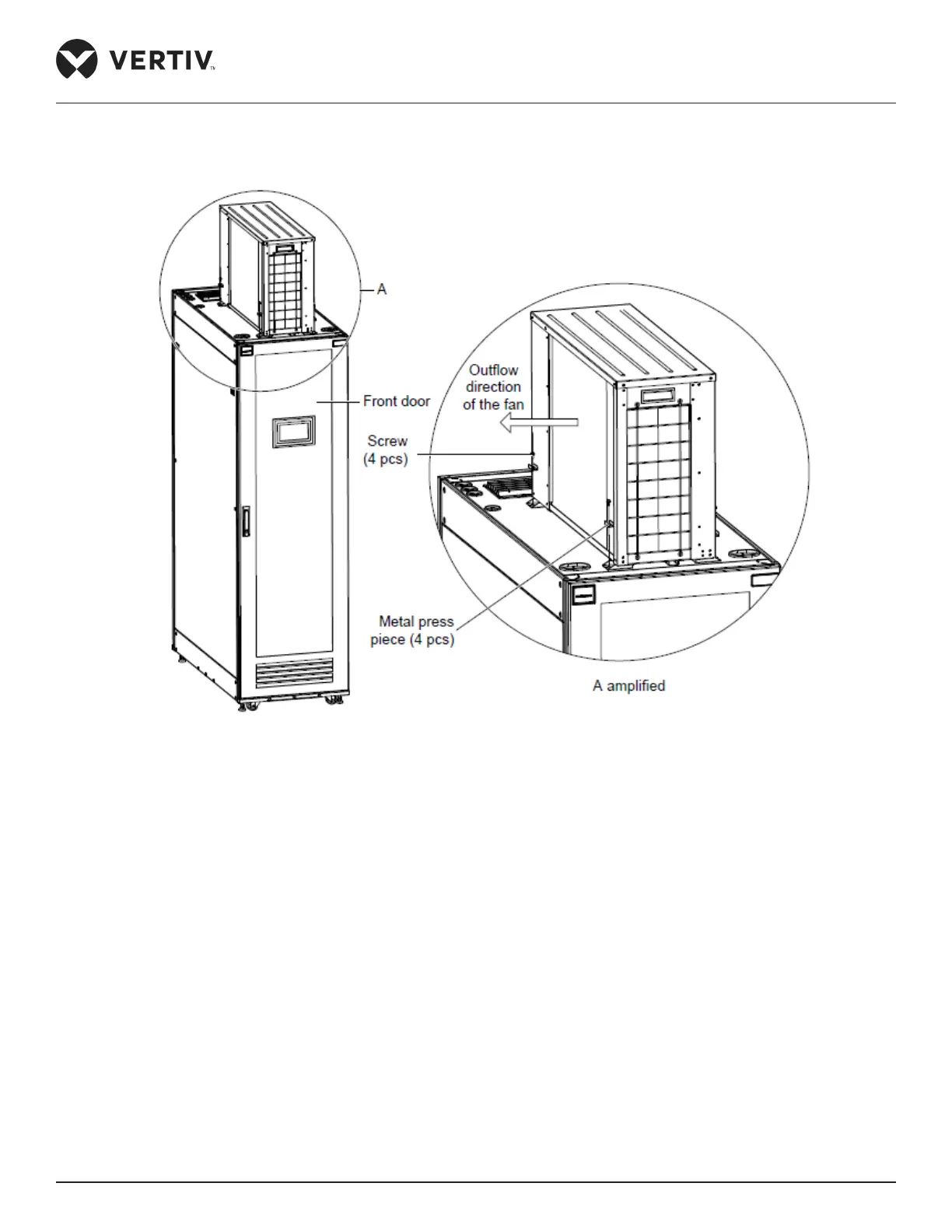

of the cabinet. The entire illustration of the installation at the top of the cabinet is shown in Figure 2-23.
Figure 2-23 Installing the outdoor unit on top of the cabinet
Following points need to be taken during the installation of the outdoor unit:
• The outdoor unit must be placed appropriately in a safe place for maintenance. It also should not be installed
on the bottom oor of the public site. It should not be kept in a residential area.
• It should not be kept in an environment where noise levels are considered crucial.
• Keep the outdoor unit in a clean environment that is free of debris, dust, and foreign matter. This is done to
prevent the heat exchanger being blocked and to ensure an eicient cooling eect.
• There should be no steam, hot gas, and exhaust gas in the vicinity of the outdoor unit.
• Preferably, keep a distance of over 450mm between the outdoor unit and the wall, obstacles, or adjacent
devices.
• Avoid keeping the outdoor unit in places where snow may accumulate in the air intake side and air outlet
side.
