MAINTENANCE
Maintenance

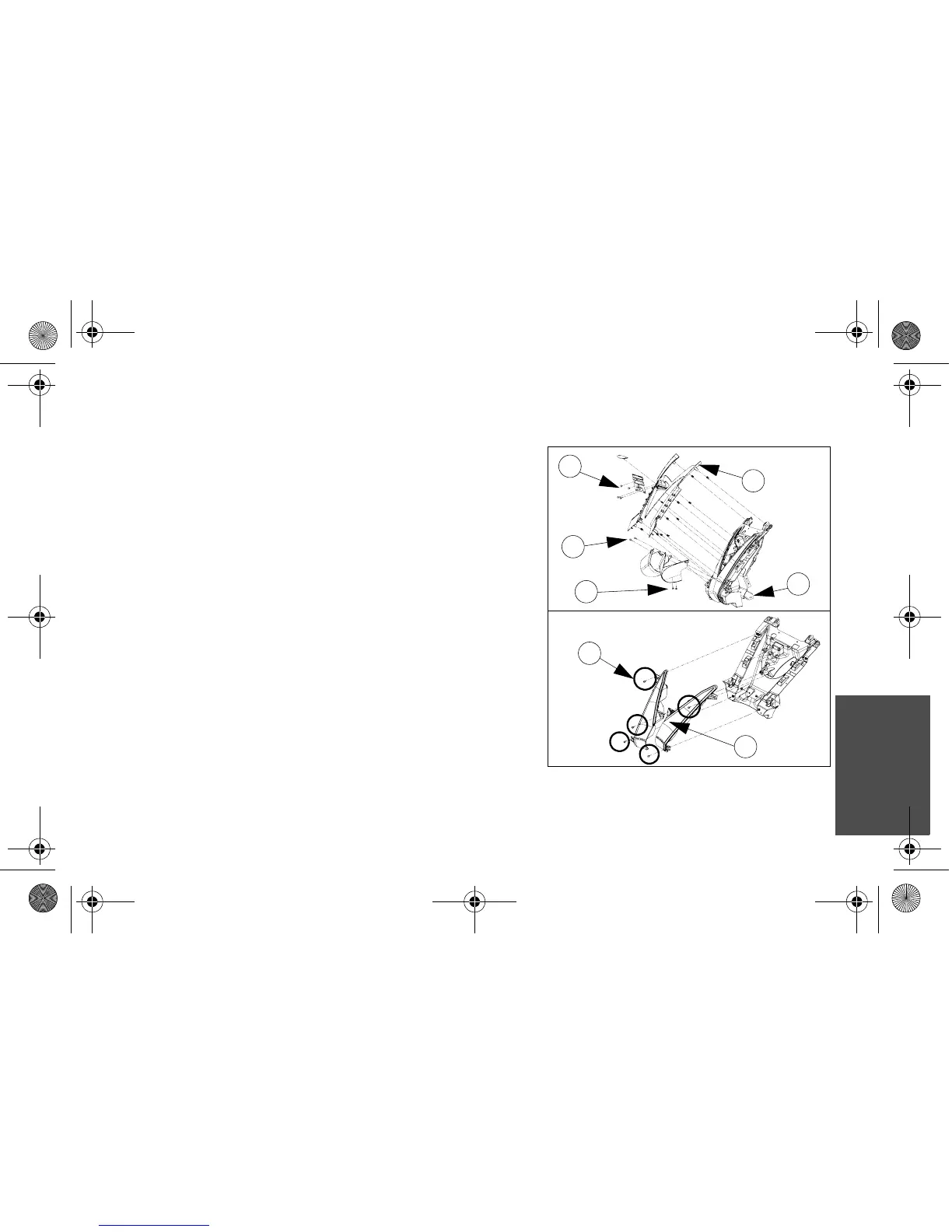

Tail / Brake Lamp / Turn Signal Bulb Replacement
1. Open saddlebags. (NOTE: Trunk or Street
Panel removal is not necessary).
2. Remove license plate and plate bracket (1). Lift
tail trim (“M” panel) (2) to disengage tabs (See
“Street Trim Panel Removal” on page 193.)
3. Remove six button head screws (3) from lower
rear bumper using a 4mm Allen wrench.
4. Remove five button head screws (4) that secure
tail light lenses using a 4mm Allen wrench.
5. Pull both tail lights (5) straight rearward to
release all spring tabs from rear fender and
expose bulb sockets as required.
6. Rotate bulb socket 1/4 turn counter-clockwise to
remove socket. Note orientation for assembly.
7. Pull the bulb straight out of the socket and
replace it with the new bulb.
8. Assemble in reverse order of disassembly.
Torque all button head screws to 36 lb-in.(4 Nm).
1
3
2
4
5
3
3
visionownersmanual.book Page 197 Wednesday, February 13, 2008 4:31 PM

Victory 2009 VISION Specifications

General

Year	2009
Manufacturer	Victory
Model	VISION
Category	Touring
Compression Ratio	9.4:1
Cooling System	Air / oil
Transmission	6-speed
Final Drive	Belt
Front Tire	130/70-R18
Rear Tire	180/60-R16
Engine Type	V-twin, four-stroke
Displacement	1731 cc
Bore x Stroke	101 x 108 mm
Fuel System	Electronic Fuel Injection
Front Suspension	Telescopic fork
Rear Suspension	Single
Front Brakes	Dual 300mm discs, 4-piston calipers
Rear Brakes	Single 300mm disc 2 piston caliper
Seat Height	26.5 inches
Fuel Capacity	22.7 liters / 6.0 US gallons
Wheelbase	65.7 inches
