Victory 2009 VISION User Manual

151
MAINTENANCE
Maintenance
Drive Belt Tension Adjustment
1. Move wheel to the tight spot location determined
previously in Drive Belt Tension Inspection.

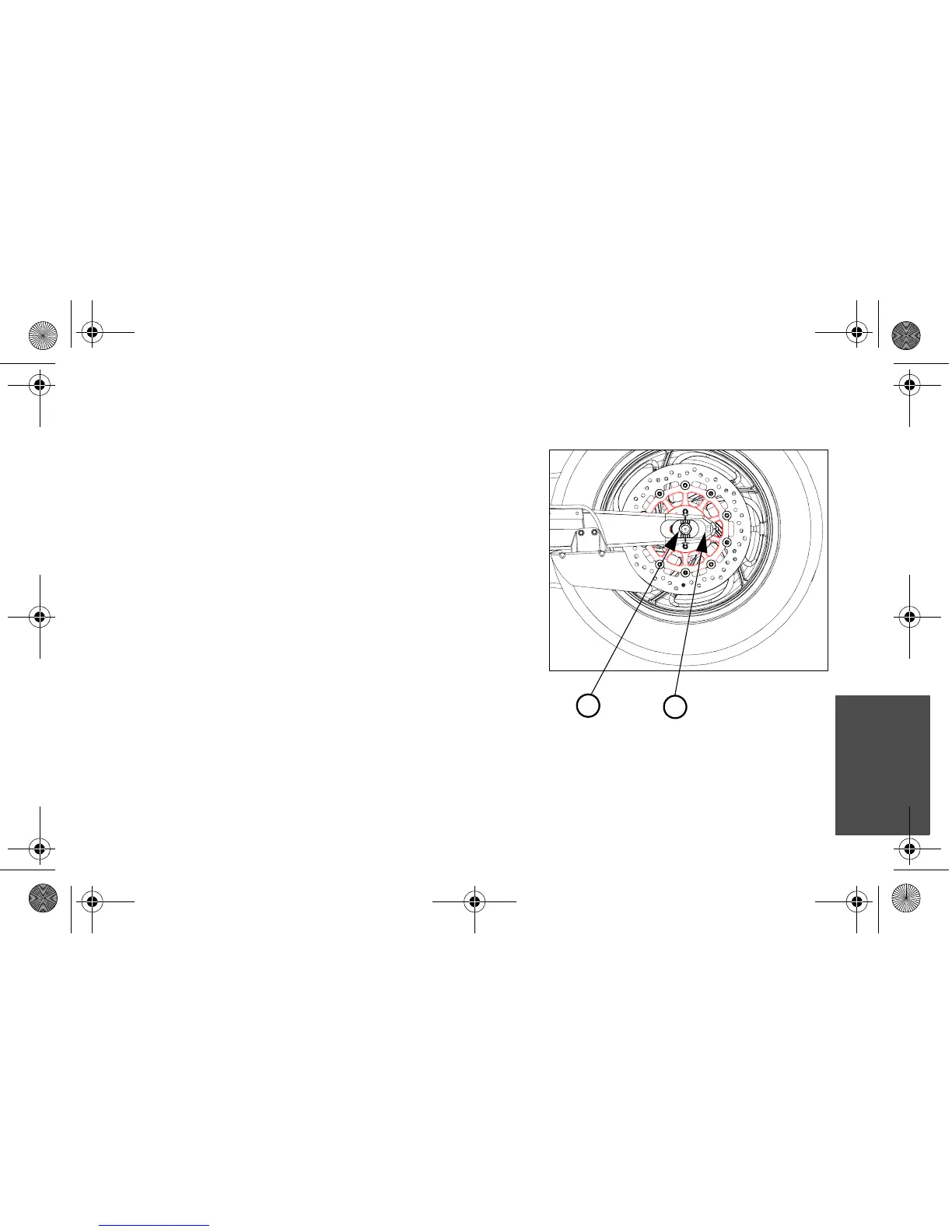

2. Loosen the rear axle nut (1) on the left side.
3. Using a 13 mm deep socket, turn each axle
adjuster nut (2) clockwise an equal amount to
tighten the belt (reduce deflection) or an equal
amount counter-clockwise to loosen the belt
(increase deflection).
4. Tighten rear axle nut to proper torque.
Rear Axle Nut Torque: 65 lb-ft. (88 Nm)
5. Pump the rear brake pedal to re-set the pads
against the brake disc.
6. Verify proper belt tension (page 147) and wheel
alignment (page 152).
Nut is hidden by
swingarm. (Shown
for clarity)
1
2
visionownersmanual.book Page 151 Wednesday, February 13, 2008 4:31 PM

Victory 2009 VISION Specifications

General

Year	2009
Manufacturer	Victory
Model	VISION
Category	Touring
Compression Ratio	9.4:1
Cooling System	Air / oil
Transmission	6-speed
Final Drive	Belt
Front Tire	130/70-R18
Rear Tire	180/60-R16
Engine Type	V-twin, four-stroke
Displacement	1731 cc
Bore x Stroke	101 x 108 mm
Fuel System	Electronic Fuel Injection
Front Suspension	Telescopic fork
Rear Suspension	Single
Front Brakes	Dual 300mm discs, 4-piston calipers
Rear Brakes	Single 300mm disc 2 piston caliper
Seat Height	26.5 inches
Fuel Capacity	22.7 liters / 6.0 US gallons
Wheelbase	65.7 inches
