IDENTIFICATION
I.D.

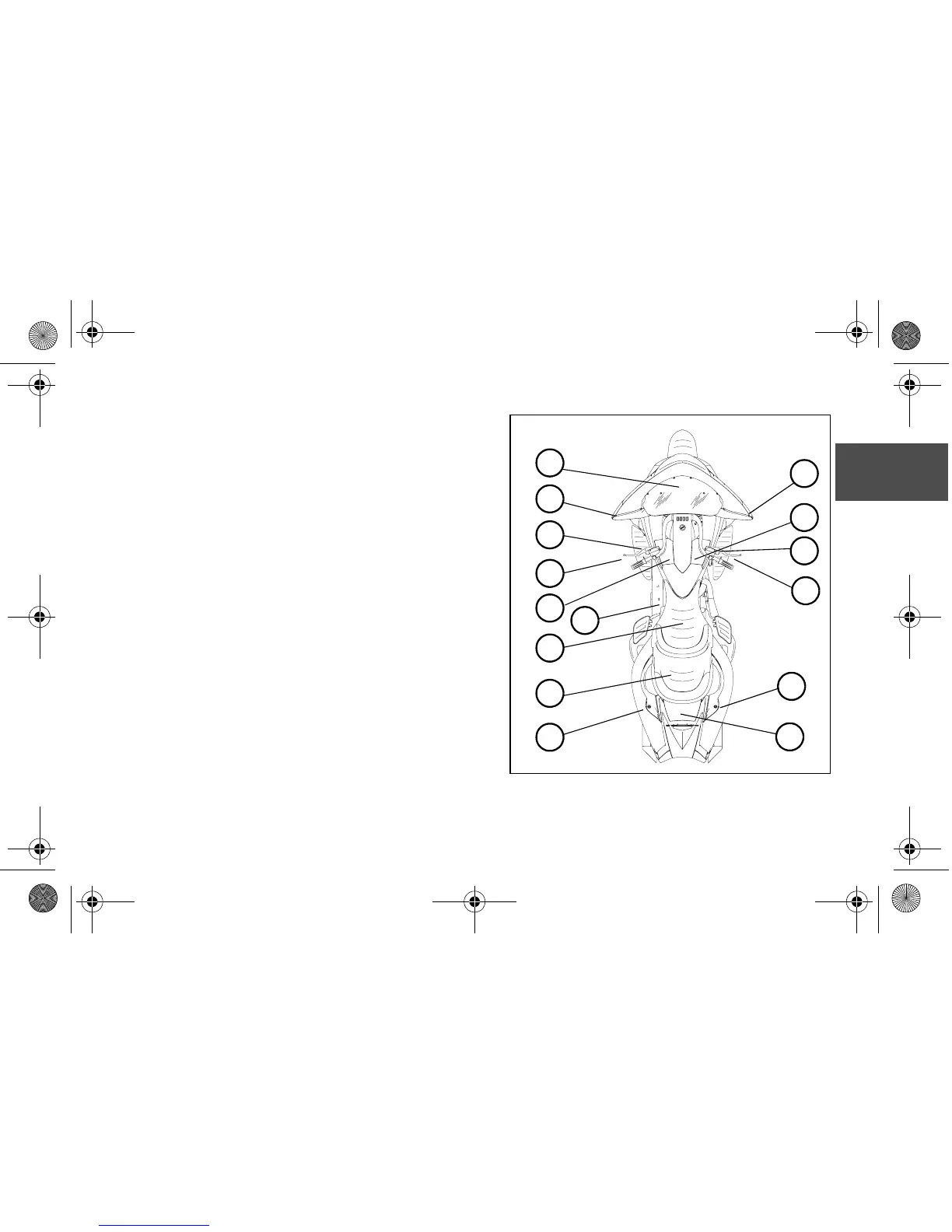

Component Location - Top View
Top View
1. Windshield (radio antenna is under dash)
2. Left Mirror
3. Clutch Fluid Reservoir
4. Clutch Lever
5. Glove Compartment Door
6. Operator Seat
7. Passenger Seat
8. Left Saddlebag Latch
9. Trim Panel - Street Model (or Tour w/ Trunk
Removed)
10. Right Saddlebag Latch
11. Front Brake Lever
12. Front Brake Fluid Reservoir
13. Fuel Filler Cap Access Door
14. Right Mirror
15. Reverse Lever (if equipped)
7
3
4
2
5
6
1
12
11
13
14
8
9
10
15
4component identification.fm Page 45 Tuesday, February 3, 2009 1:27 PM

Victory 2009 VISION Specifications

General

Year	2009
Manufacturer	Victory
Model	VISION
Category	Touring
Compression Ratio	9.4:1
Cooling System	Air / oil
Transmission	6-speed
Final Drive	Belt
Front Tire	130/70-R18
Rear Tire	180/60-R16
Engine Type	V-twin, four-stroke
Displacement	1731 cc
Bore x Stroke	101 x 108 mm
Fuel System	Electronic Fuel Injection
Front Suspension	Telescopic fork
Rear Suspension	Single
Front Brakes	Dual 300mm discs, 4-piston calipers
Rear Brakes	Single 300mm disc 2 piston caliper
Seat Height	26.5 inches
Fuel Capacity	22.7 liters / 6.0 US gallons
Wheelbase	65.7 inches
