10 D-303222 PowerMaster-10 / PowerMaster-30 Installer's Guide
2.2 PowerMaster-10 Installation
Required tool: Philips screwdriver #2.
PowerMaster-10 mounting process is shown in Figures 3.1 - 3.2.
2.2.1 Opening the PowerMaster-10 Control Panel and Bracket Mounting
4
3
5
1
A
B
A
A

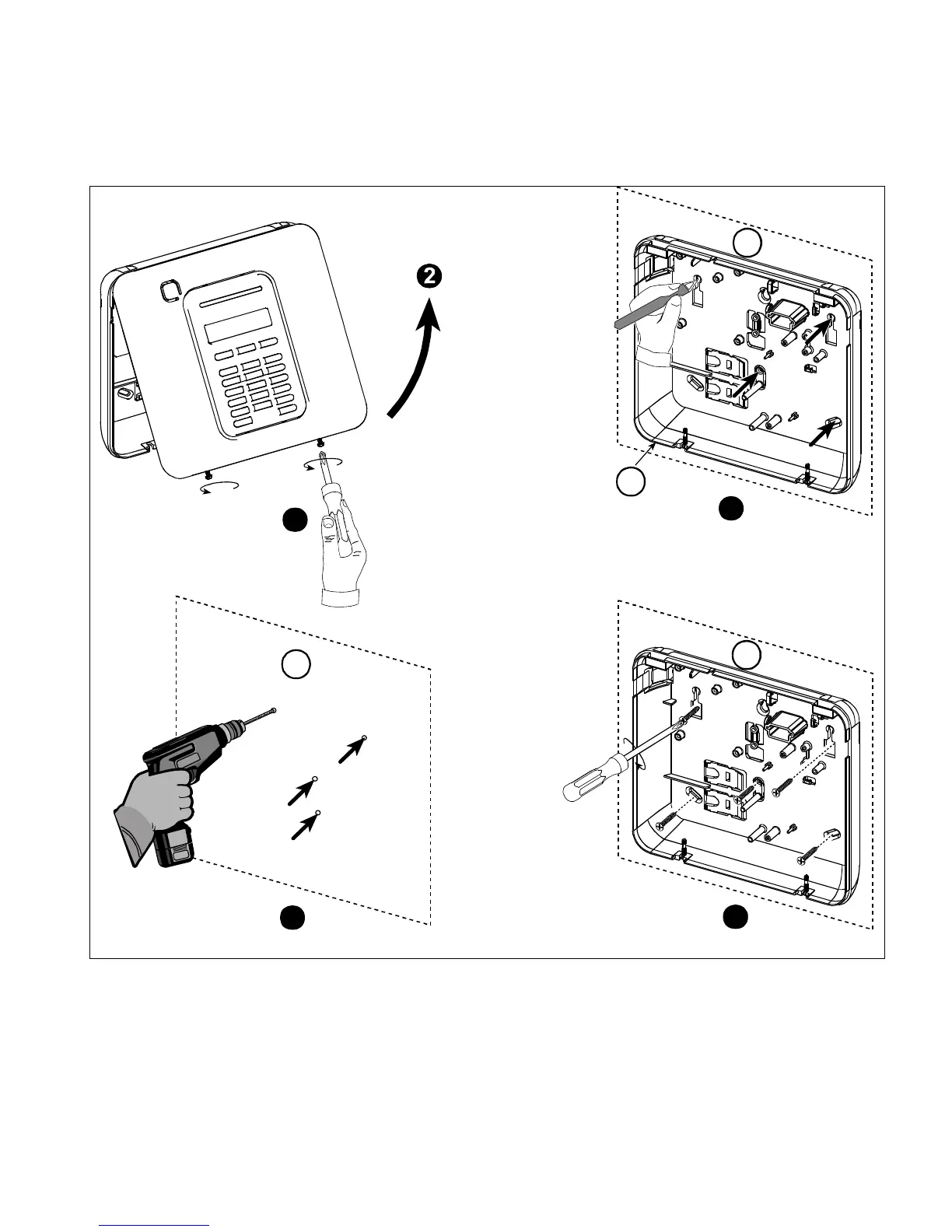

Figure 3.1 – Back Unit Mounting
To Mount the Unit: A. Mounting surface
1. Release the screws B. Back unit
2. Remove the front cover
3. Mark 4 drilling points on the mounting surface
4. Drill 4 holes and insert wall anchors
5. Fasten the back unit with 4 screws
WARNING! When plugging SIREN & ZONE terminals back into place, be sure to align them carefully with the pins
on the PCB. Misaligned or reverse insertion of terminals may cause internal damage to the PowerMaster-10!
