14 D-303222 PowerMaster-10 / PowerMaster-30 Installer's Guide
Inserting the SIM card into the GSM module
(see Figure 3.6).
1. Slide top cover.
2. Open cover
3. Align SIM card in cover (note cover
orientation)
4. Slide SIM card into cover
5. Rotate cover to close
6. Lock cover to close
IMPORTANT! Do not insert or remove SIM card
when the control panel is powered by AC power
or battery.
2
3
6
4
5
1

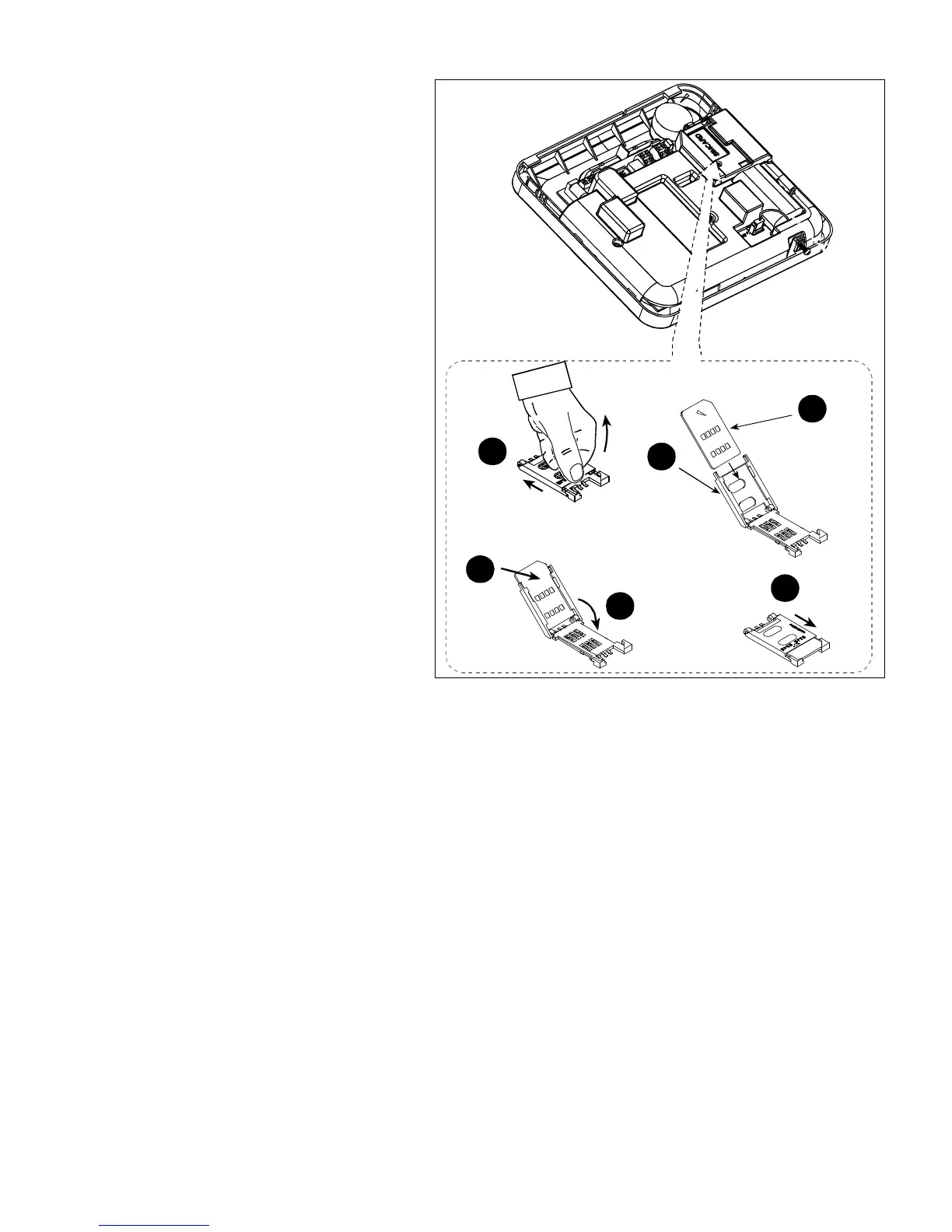

Figure 3.6 – SIM Card Insertion
2.2.7 PGM-5 Installation
PGM-5 is an output interface module designed to provide alarm, trouble events and status signals to external
devices such as long range wireless monitoring transmitters, CCTV systems, home-automation systems and
LED annunciation panels (for further details see the PGM-5 Installation Instructions).
The PGM-5 provides 5 solid state relay contact outputs and is designed to be used as a plug-in internal add-on
module with the PowerMaster-10 control panel.
Note: The PGM-5 will be active only if the PGM-5 option was enabled in the factory default of the control panel.
Caution! When mounting the PGM-5 module it is strongly recommended to route the cable as shown in Figure
3.7 to prevent interference which may occur if routed too close to the control panel antennas.
