30
CHAPTER 3 - INSTALLATION AND CONNECTION
b) Models 7.3 A to 10 A/200-240 V and 4.0 A/110-127 V (single-phase)
POWER SUPPLY
SHIELDING
c) Models 1.6 A, 2.6 A, 4.0 A and 7.3 A/200-240 V (three-phase)

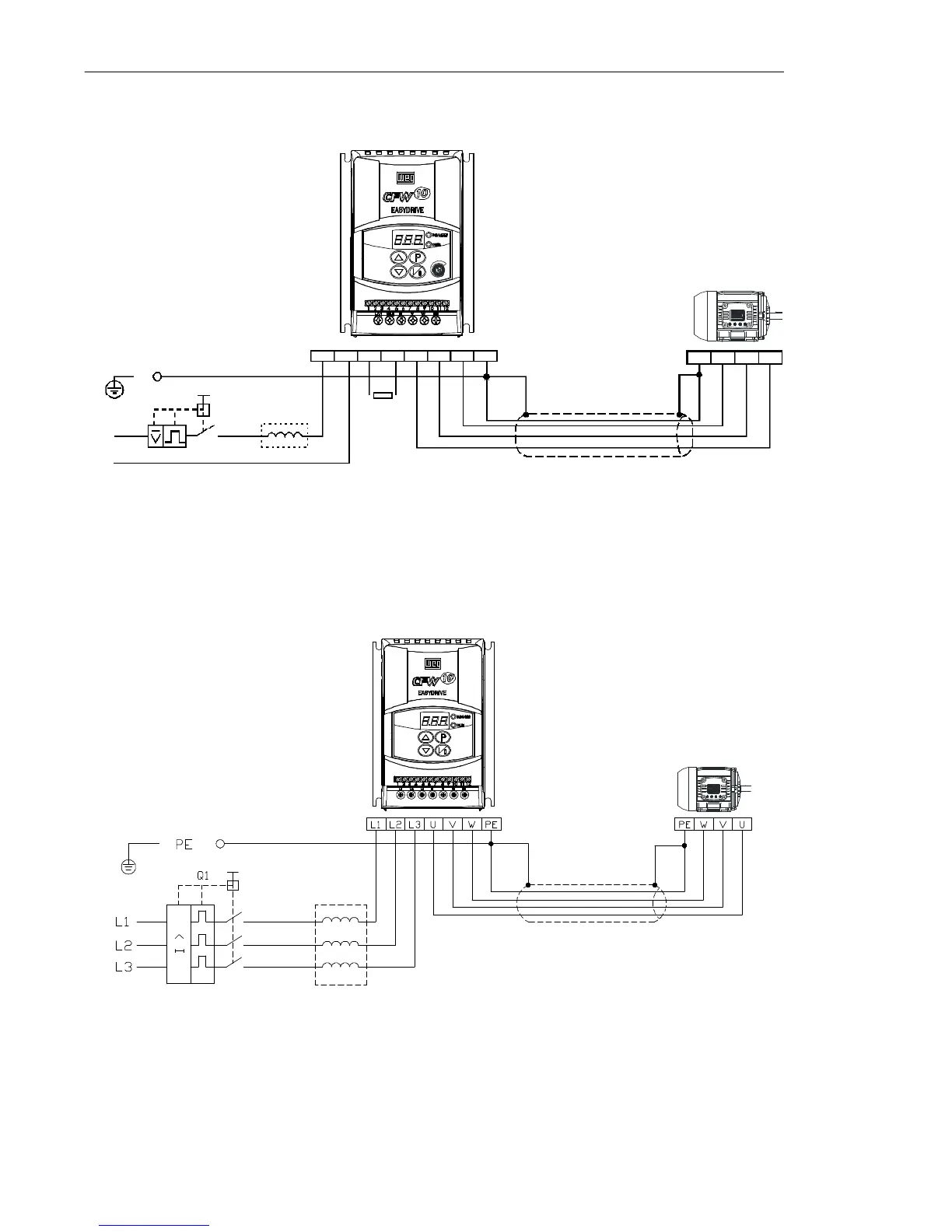

Figure 3.6 b) c) - Grounding andpower supply connections
POWER SUPPLY
L/L1
PE
PE UVW
SHIELDING
Q1
N/L2
U V W PE
N/L2
L/L1 +UDBR
Braking
Resistor
