CHAPTER 3 - INSTALLATION AND CONNECTION
3.3.4 Characteristics of the EMC Filters
Footprint / Booksize Model B84142A0012R212 (EPCOS)
Supply voltage: 250 V, 50/60 Hz
Current: 12 A
Weight: 0.95 Kg (2.1 lb)
a) Model footprint/booksize B84142A0012R212 (EPCOS)

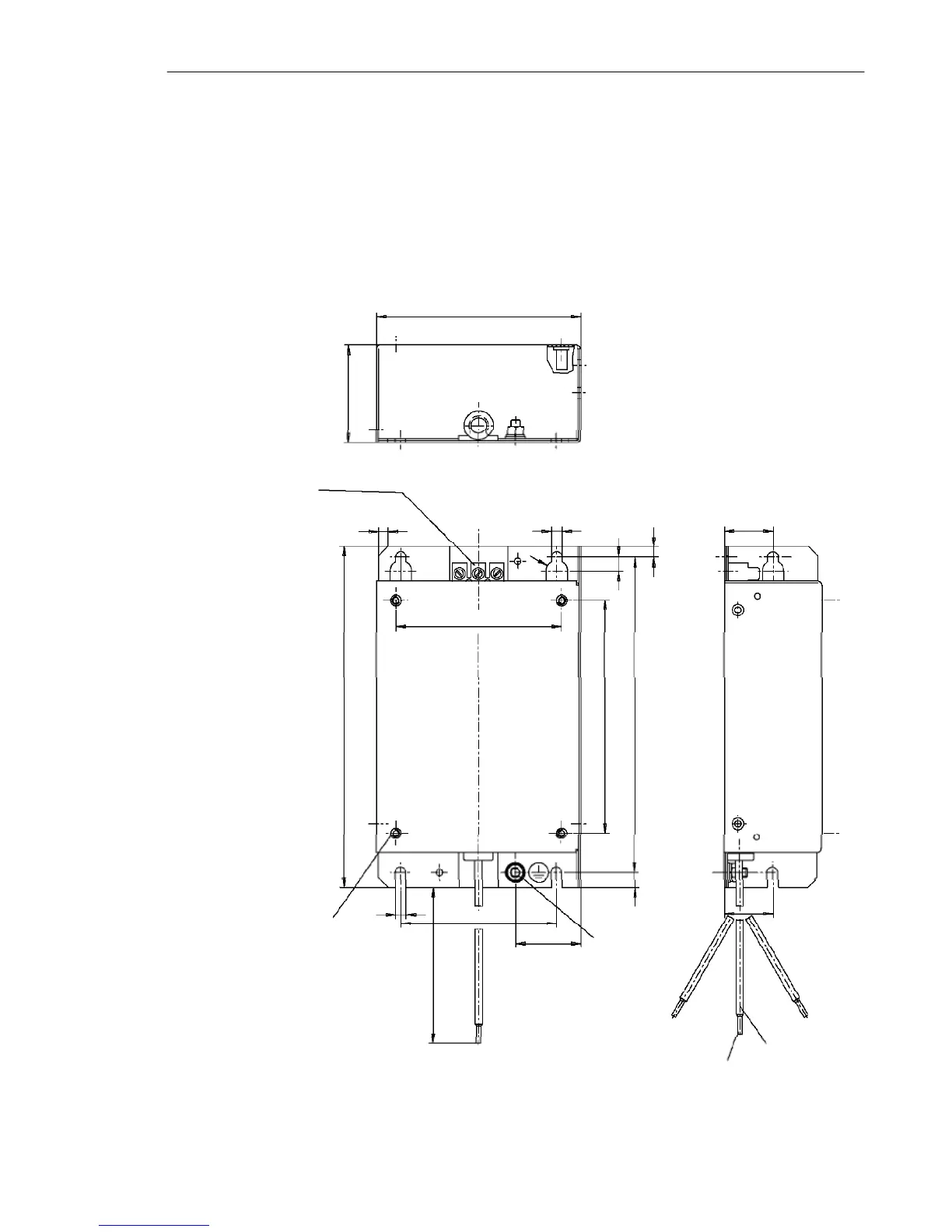

Figure 3.14 a) - Drawing of the footprint / bookside filter
Terminals 2.5 mm
2
Tightening torque of screw
max. 0.5 Nm
3 x litzwire 2.5 mm
2
3 x wire and sleeve DIN 46228-A2, 5-10
105
50
5 x 45 º
175
ø
1
1
5.5
149.8±0.2
162±0.3
5.5
85±0.2
80±0.2
5.5
33.5
7.5
4 x M4 x 7
170 x 5
PE M5 x 12
25
25
Note: Figure dimensions are in mm.
