CHAPTER 3 - INSTALLATION AND CONNECTION

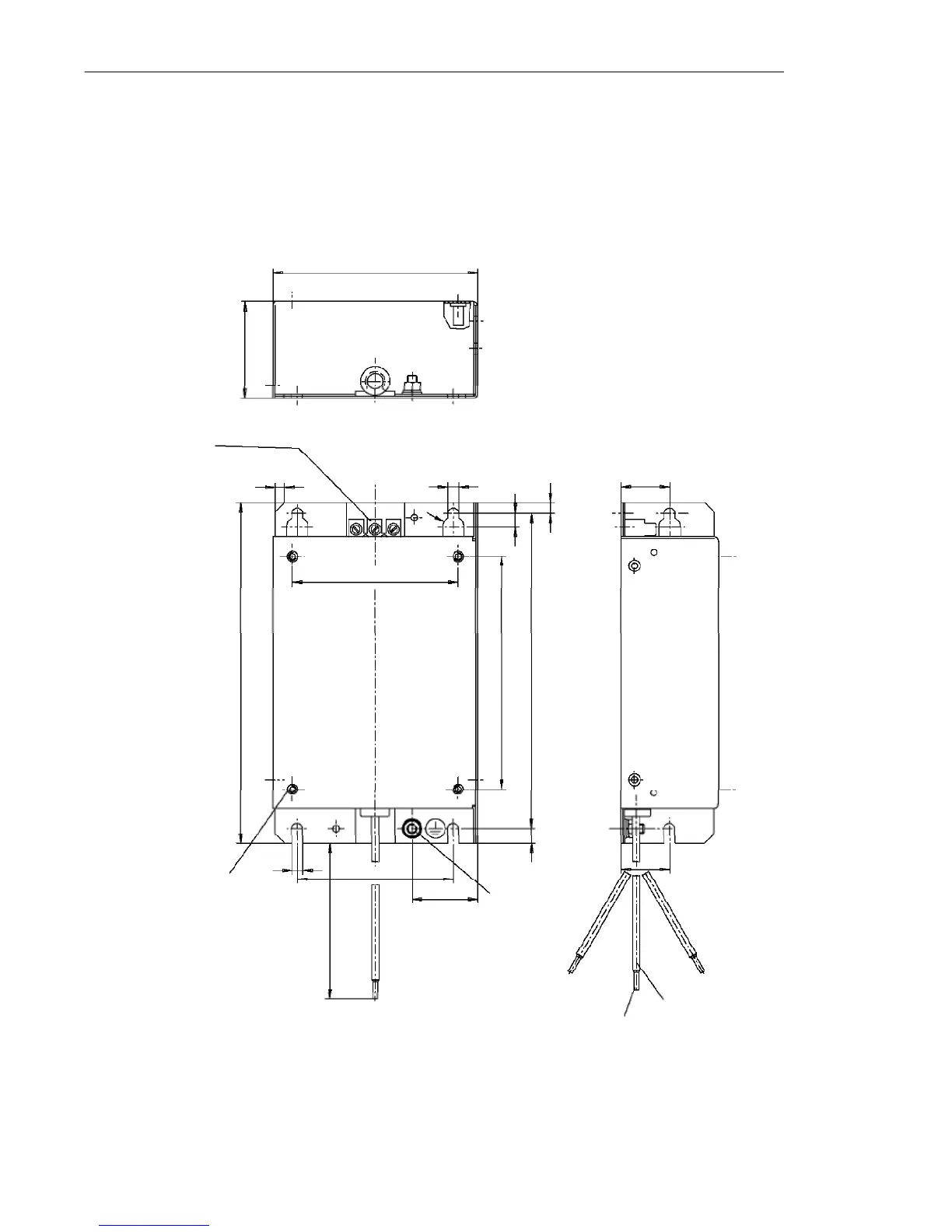

Figure 3.14 b) - Drawing of the footprint / booksize filter
Footprint / booksize Model B84142B18R212 (EPCOS)
Supply Voltage: 250 V, 50/60 Hz
Current: 18 A
Weight: 1.3 kg (2.9 lb)
b) Footprint/booksize model B84142B18R212 (EPCOS)
Terminals 2.5 mm
2
Tightgning torque of screw
max. 0.5 Nm
3 x litzwire 2.5 mm
2
3 x wire and sleeve DIN 46228-A2, 5-10
125
50
5 x 45 º
204
ø
1
1
5.5
149±0.2 191±0.3
5.5
105±0.2
100±0.2
5.5
37.5
7.5
4 x M4 x 7
170 x 5
PE M5 x 12
25
25
Note: Figure dimensions are in mm.
