CHAPTER 6 - DETAILED PARAMETER DESCRIPTION
6.3 PARAMETER
LISTING
In order to simplify the explanation, the parameters have been grouped
by characteristics and functions:
Read-Only Parameters Variables that can be viewed on the
display, but can not be changed by the
user.
Regulation Parameters Programmable values that cab be used
by the CFW-10 functions.
Configuration Parameters They define the inverter characteristics,
the functions to be executed, as well as
the input/output functions of the control
board.
Special Function Parameters Here are included parameters related
to special functions.
(1) This parameter can be changed only with the inverter disabled
(stopped motor).
(2) This parameter is not changed when the load factory default routine
is executed (P204 = 5).
REFERENCE
COMMANDS
Local/Remote Selection
DI1 to DI4 (P263 to P266)
F*
LOCAL
Frequency
Reference
P221
Controls
P229
(run/stop)
0 Keypad - HMI
1 AI1
2 EP
3 HMI Potentiometer
4 to 5 Reserved
6 Multispeed
7 Input Frequency
0 Keypad - HMI
1 Terminals XC1 (DIs)
REMOTE
0 Keypad - HMI
1 AI1
2 EP
3 HMI Potentiometer
4 to 5 Reserved
6 Multispeed
7 Input Frequency
0 Keypad - HMI
1 Terminals XC1 (DIs)
Frequency
Reference
P222
Controls
P230
(run/stop)

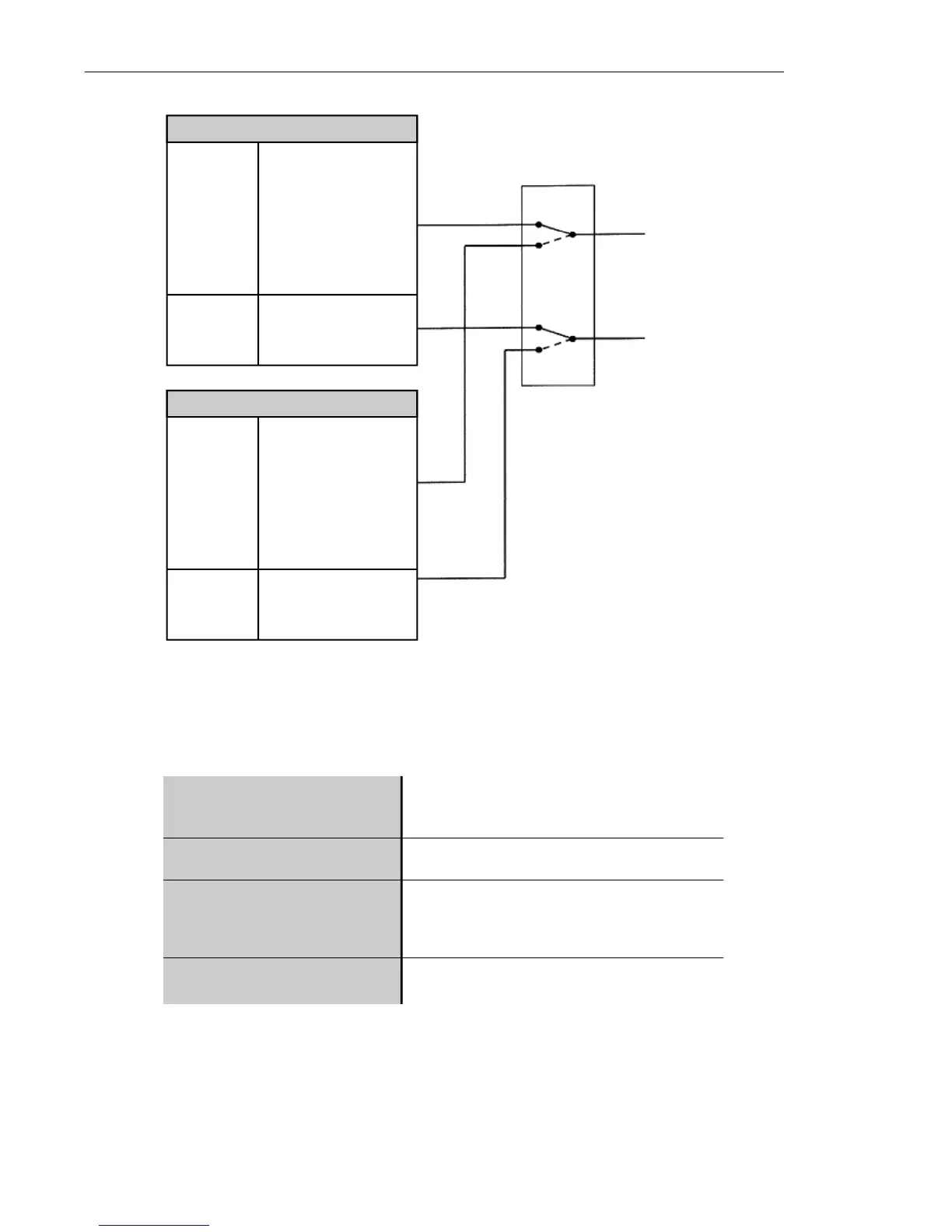

Figure 6.3 - Block diagram of the Local/Remote operation mode
