CHAPTER 3 - INSTALLATION AND CONNECTION
NOTE!
Do not use the neutral conductor for grounding purposes.
ATTENTION!
The AC input for the drive supply must have a grounded neutral
conductor.
Electromagnetic Interference (EMI)
Shielded cable or metallic conduit shall be used for motor wiring when
electromagnetic interference (EMI) caused by the drive interferes in
the performance of other equipment. Connect one end of the shielding
to the drive grounding point and the other end to the motor frame.
Motor Frame
Always ground the motor frame. Ground the motor in thepanel where
the drive is installed or ground it to the drive. The drive output wiring
must belaid separately from the input wiring as well as from the control
and signalcables.

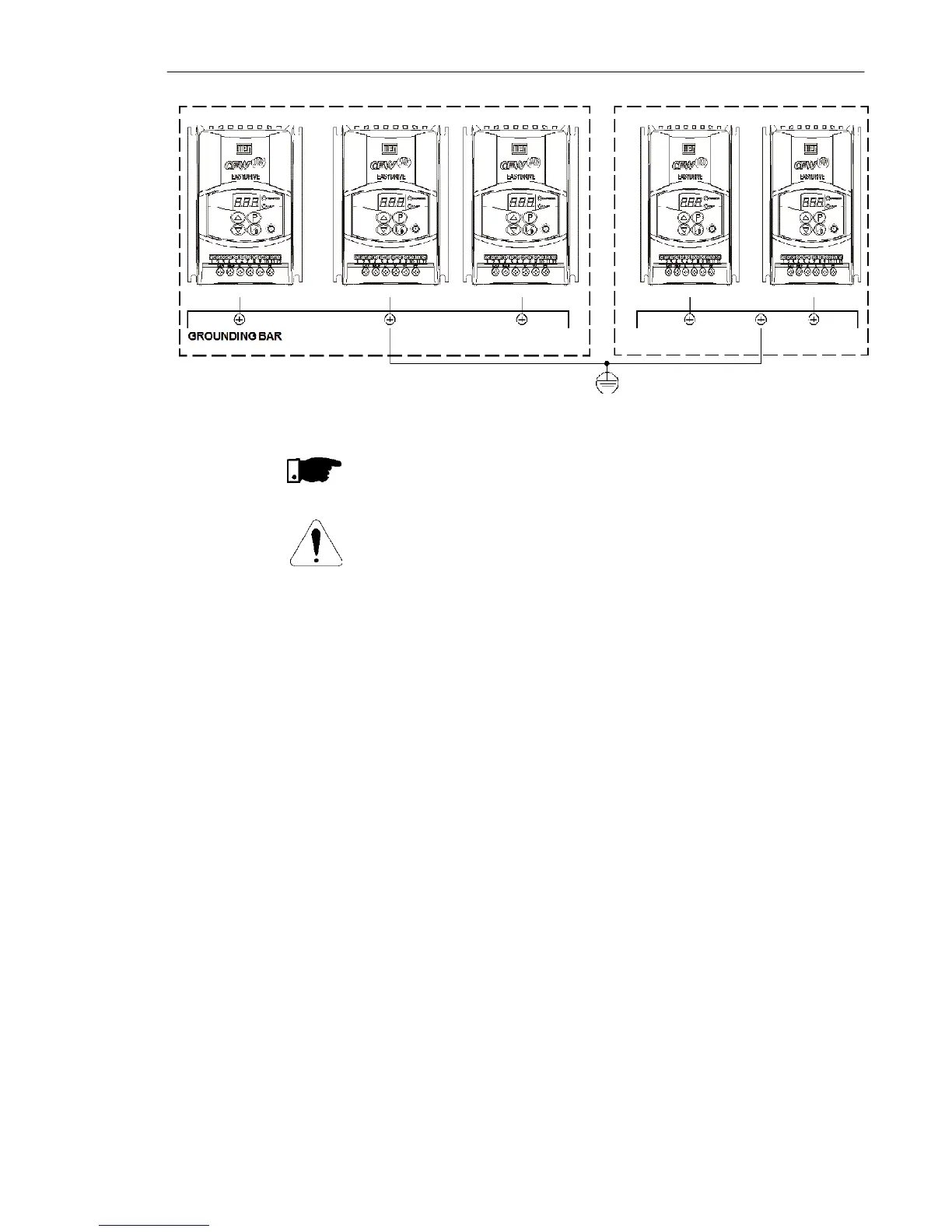

Figure 3.7 - Grounding connections for more than one drive
