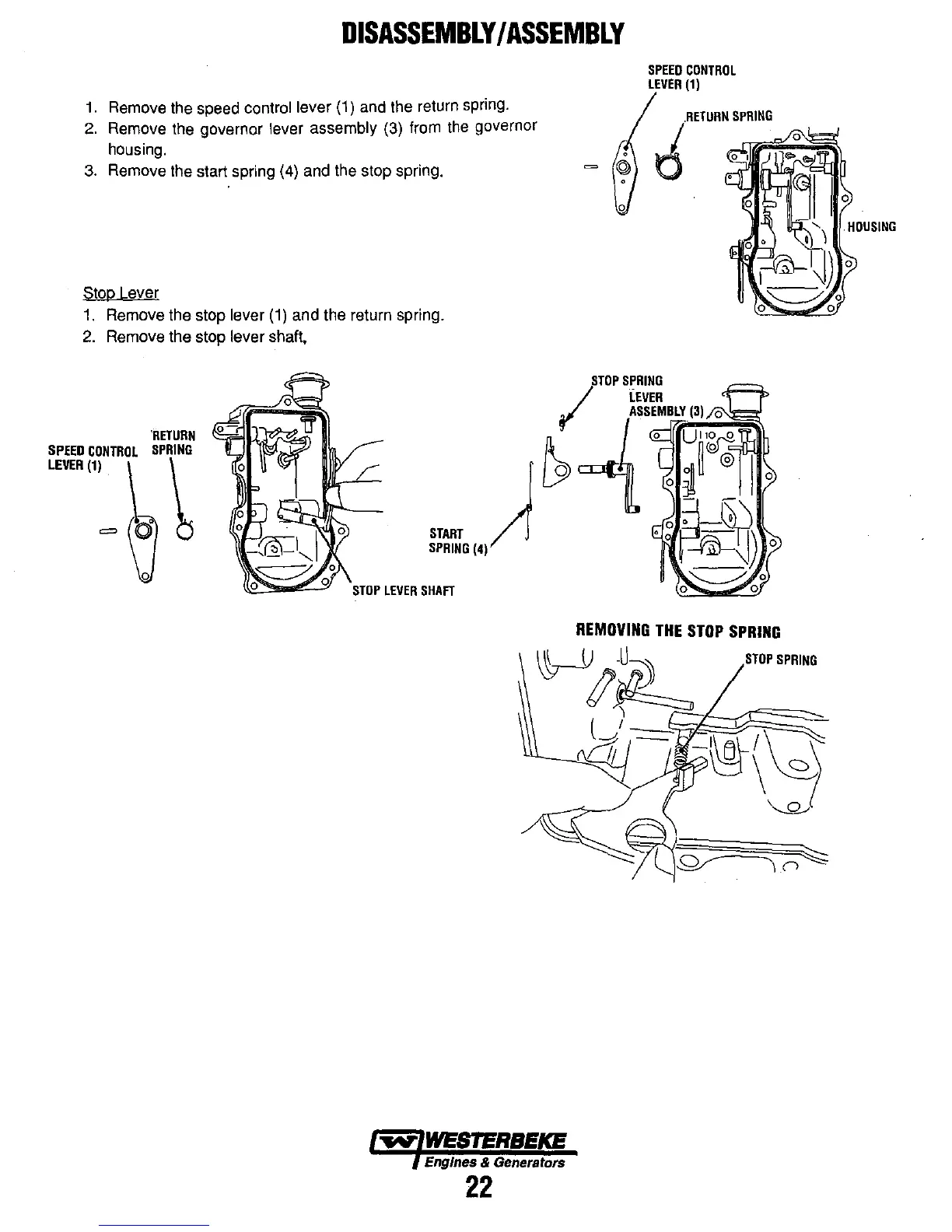

DISASSEMBLY
I
ASSEMBLY
1.
Remove the speed contra) lever (1) and the return spring.
2.
Remove the governor lever assembly (3) from the governor
housing.
3. Remove the start spring
(4) and the stop spring.
Stop Lever
1. Remove the stop lever (1) and the return spring.
2.
Remove the stop lever shaft.
SPEED
CONTROL
LEVER
(1)
=
'RETURN
SPRING
b
~
WESTERBEICE
Engines
&
Generators
22
SPEED
CONTROL
LEVER
(1)
STOP
SPRING
