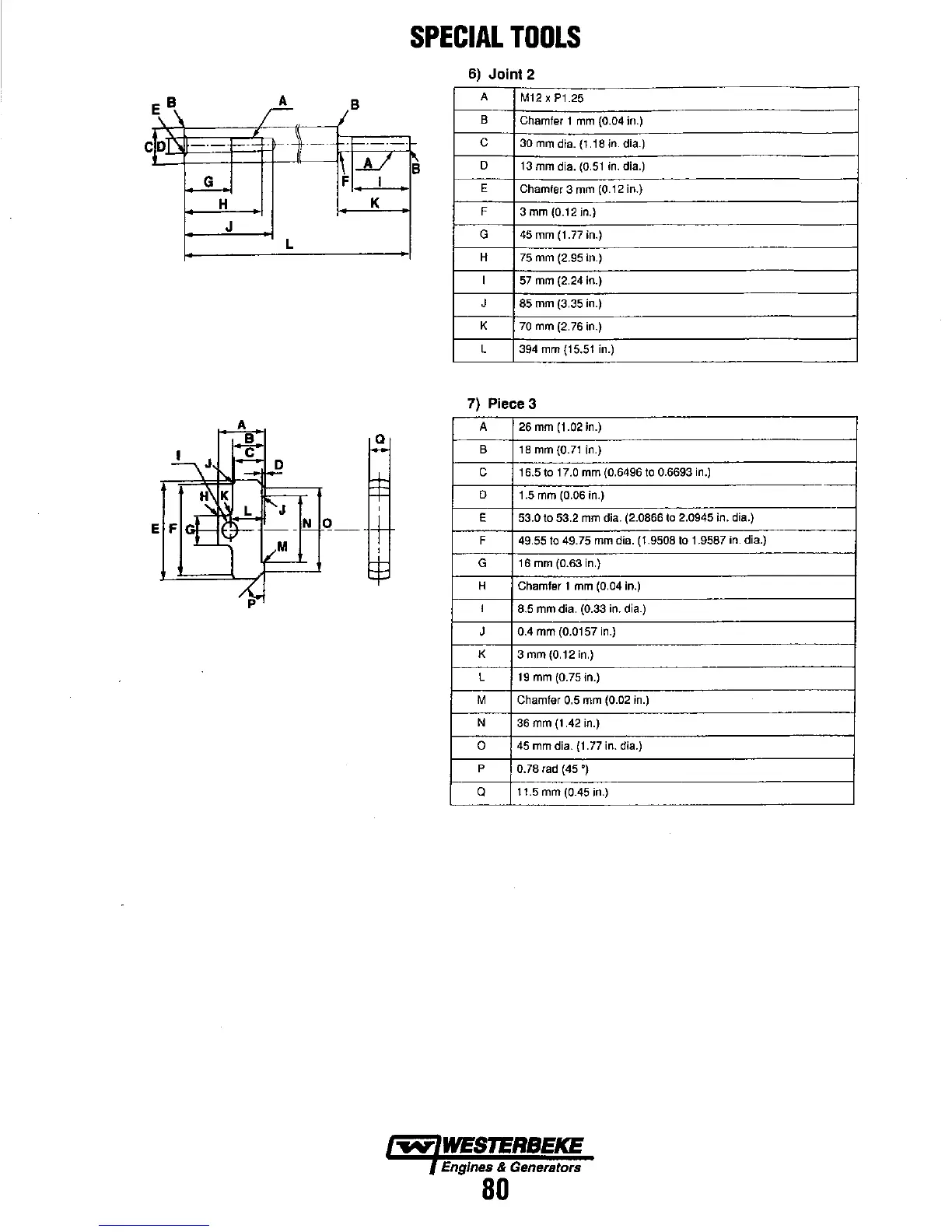

SPECIAL TOOLS
6) Joint 2
EB
A
B
-, \
I.
A
M12 x P1.25
8
Chamfer 1 mm (0.04 in.)
:tDI
+
.,.
~I-'Y
B
G
,
,
c
C
30 mm dia. (1.18 in. dia.)
D
13
mm dia. (0.51 in. dia.)
E
Chamfer 3 mm (0.12 in.)
H
K
F
3 mm (0.12 in.)
J
L
G 45 mm (1.77 in.)
H 75 mm (2.95 in.)
I 57 mm (2.24 in.)
J 85 mm (3.35 in.)
K 70 mm (2.76 in.)
L 394 mm (15.51 in.)
7) Piece 3
A 26 mm (1.02 in.)
Q
8 18 mm (O.7t in.)
C
16.5 to 17.0 mm (0.649610 0.6693 in.)
D
1.5 mm (0.06 in.)
--
N Q_
E
53.0 to 53.2 mm dia. (2.0866 to 2.0945 in. dia.)
F
49.55 to 49.75 mm dia. (1.9508 to 1.9587 in. dia.)
G 16 mm (0.63 in.)
H Chamfer 1 mm (0.04 in.)
I 8.5 mm dia. (0.33 in. dia.)
J
0.4 mm (0.0157 in.)
K
3 mm (0.12 in.)
L 19 mm (0.75 in.)
M
Chamfer 0.5 mm (0.02 in.)
N
36 mm (1.42 in.)
0
45 mm dia. (1.77 in. dia.)
p
0.78 ,ad (45 ')
Q
11.5 mm (0.45 in.)
