A
E
B F
J
C
D F
F~
Fl,u /-
·G -tt- K·
Lr?/P Q~
( 17
M
'N
.t
R
N
V
W
x
y
A
B
D E
C
F
G
L
C
J
H

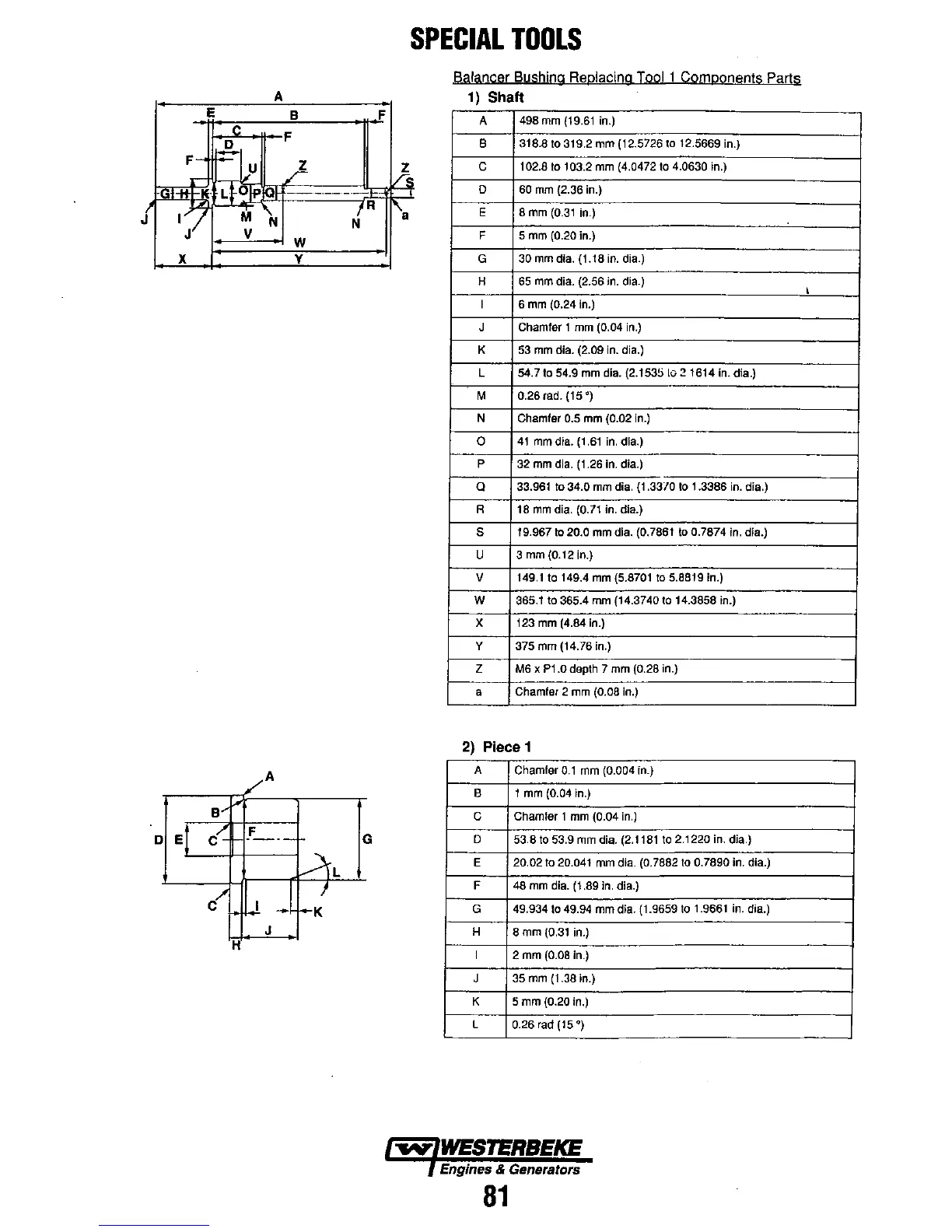

SPECIAL TOOLS
V-s
I'.
Balancer Bushing Replacing Tool 1 Componenls Parts
1) Shaft
A
498 mm (19.61 in.)
B
318.810319.2 mm (12.5726 to 12.5669 in.)
C 102.810103.2 mm (4.047210 4.0630 in.)
0 60 mm (2.36 in.)
E 8 mm (0.31 in.)
F
5 mm (0.20 in.)
G
30 mm dla. (t.tS in. dia.)
H
65 mm dia. (2.56 in. dia.)
I 6 mm (0.24 in.)
J Chamfer 1 mm (0.04 in.)
K 53 mm dia. (2.09 in. dia.)
L 54.7 to 54.9 mm dia. (2.1535 1021614 in. dia.)
M 0.26 rad. (15 ')
N
Chamfer
0.5 mm (0.02 in.)
0 41 mm dla. (1.61 in. die.)
p
32 mm dla. (1.26 In. dia.)
Q
33.961 to 34.0 mm die. (1.33/0 to 1.3386 in. dia.)
A 18 mm dia. (0.71 in. dla.)
S
19.96710 20.0 mm dla. (0.7861 to 0.7874 In. die.)
U
3 mm (0.12 in.)
V 149.1 to 149.4 mm (5.8701 to 5.8819 in.)
W 365.1 to 365.4 mm (14.3740 to 14.3858 in.)
X 123 mm (4.84 In.)
y
375 mm (14.76 in.)
Z
M6 x Pl.0 depth 7 mm (0.28 in.)
a
Chamfer 2 mm (0.08 in.)
2) Piece 1
A Chamfer 0.1 mm (0.004 in.)
B 1 mm (0.04 in.)
C Chamfer 1 mm (0.04 in.)
0 53.81053.9 mm dia. (2.118110 2.1220 in. dia.)
E
20.021020.041 mm dia. (0.788210 0.7890 in. dia.)
F 48 mm dia. (1.89 in. dia.)
G 49.934 to 49.94 mm dia. (1.9659101.9661 in. dia.)
H 8 mm (0.31 in.)
I 2 mm (0.08 in.)
J 35 mm (1.38 in.)
K 5 mm (0.20 in.)
L 0.26 rad (15 ')
Engines & Generators
81
,
