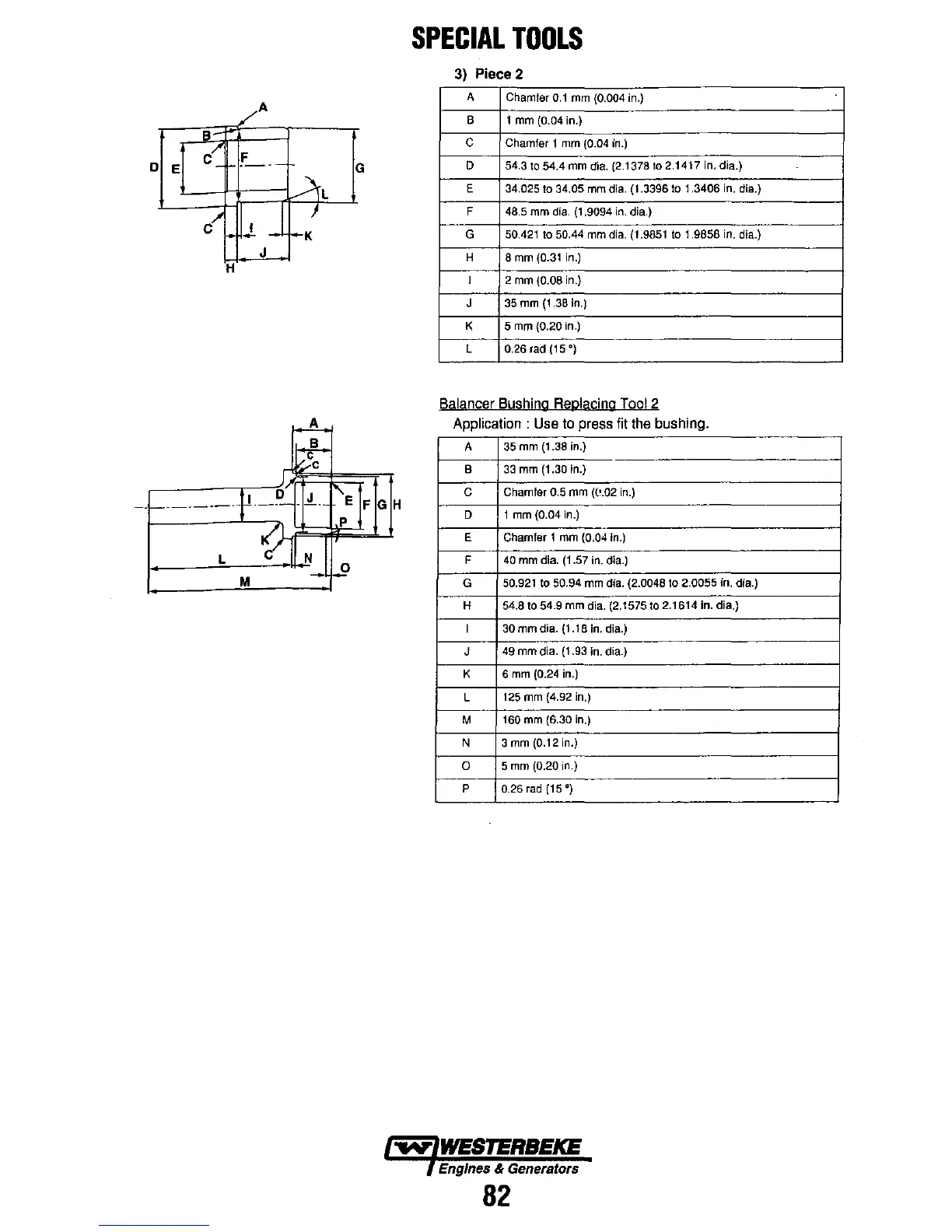

SPECIAL TOOLS
3) Piece 2
A
Chamfer 0.1 rnm (O.004 in.)
8 1 mm (0.04 in.)
C Chamfer 1 mm (0.04 in.)
D 54.31054.4 mm dia. (2.137810 2.1417 in. dia.)
E 34.025 to 34.05 mm dia. (1.3396 to 1.3406 in. dia.)
F 48.5 mm dia. (1.9094 in. dia.)
G
50.421 to 50.44 mm dia. (1.9851 to 1.9858 in. dia.)
H 8 mm (0.31 in.)
I 2 mm (O.OB in.)
J
35 mm (1.38 in.)
K
5 mm (O.20 in.)
L
0.26 rad (15 0)
Balancer Bushing Replacing Tool 2
Application: Use to press fit the bushing.
A
35 mm (1.38 in.)
8
33 mm (1.30 In.)
C Chamfer 0.5 mm (0.02 in.)
D
1 mm (O.04 in.)
E Chamfer 1 mm (0.04 In.)
F 40 mm dia. (1.57 in. dia.)
G
50.921
to 50.94 mm dia. (2.0048 to 2.0055 in. dia.)
H
54.8 to 54.9 mm dia. (2.1575 to 2.1614 in. dia.)
I
30 mm dia. (1.18 in. dia.)
J
49 mm dia. (1.93 In. dia.)
K 6 mm (0.24 in.)
L
125 mm (4.92 in.)
M
160 mm (6.30 in.)
N
3 mm (0.12 in.)
0
5 mm (0.20 in.)
p
0.26 rad (15°)
