If the step fails to operate:
• Make sure the step switch is ON.
• Check the main power supply for the step. A 20 amp auto reset 12 Volt
DC circuit breaker is located on the rear run plate.
• A magnetic door jam switch is used to control step operation. Use a
separate magnet to apply a “trigger” to the door jam switch. Rotate
test magnet to align polarity field.
• A five amp ATO blade fuse is used to illuminate the STEP OUT dash
warning light. The fuse is located on the front run plate.
WARNING: If the motorhome is driven with the step in the
extended position there is the possibility of causing major
damage to both the step and the motorhome.

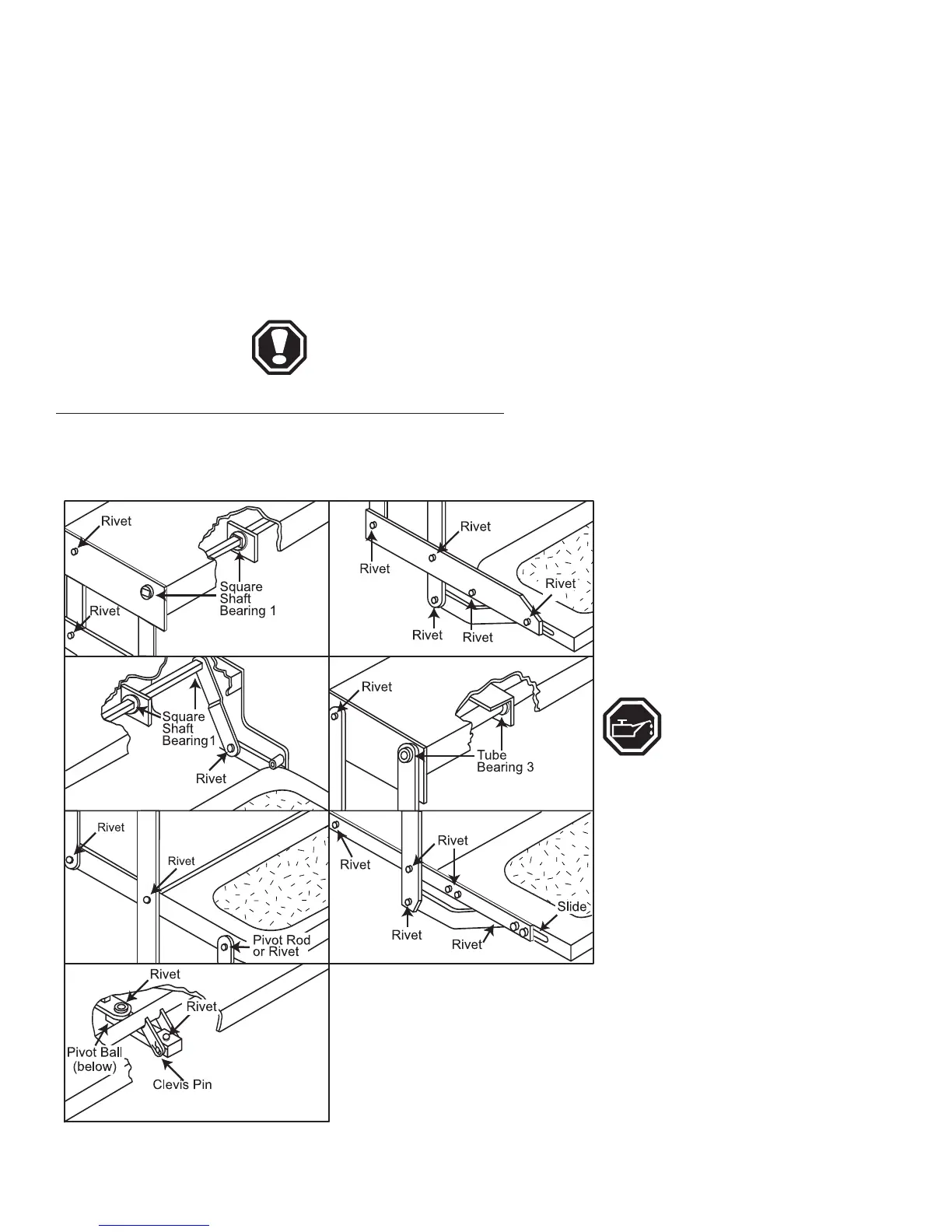

Clean all mud, salt and road grime from the step before lubricating.
Lubricate all moving parts (bearings, pivot points, slides, clevis pin, and the
drive linkage ball) every 30
days with a good quality heat
and moisture resistant penetrat-
ing grease. Kwik Lube Spray
Grease is specially formulated
to lubricate Kwikee Electric
Steps and it is also recommend-
ed for lubricating all moving
parts. Refer to the picture.
NOTE: Silicone
lubricates and WD-
40 are not recom-
mended as they have
a tendency to evapo-
rate and dry the
mating surfaces
which leaves them
vulnerable to the
elements.
Equipment
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
WINDSOR
5•130
Tips
Maintenance &
Lubrication
