The motorhome is equipped with a video selector box located just above
the VCR. The selector box receives video and audio signals from three differ-
ent sources: the roof mounted antenna, shore cable (Auxiliary)or the VCR.
The video selector box directs the signals to either the front or rear TV, and
directs the signal from shore cable or the roof mounted antenna to the VCR.

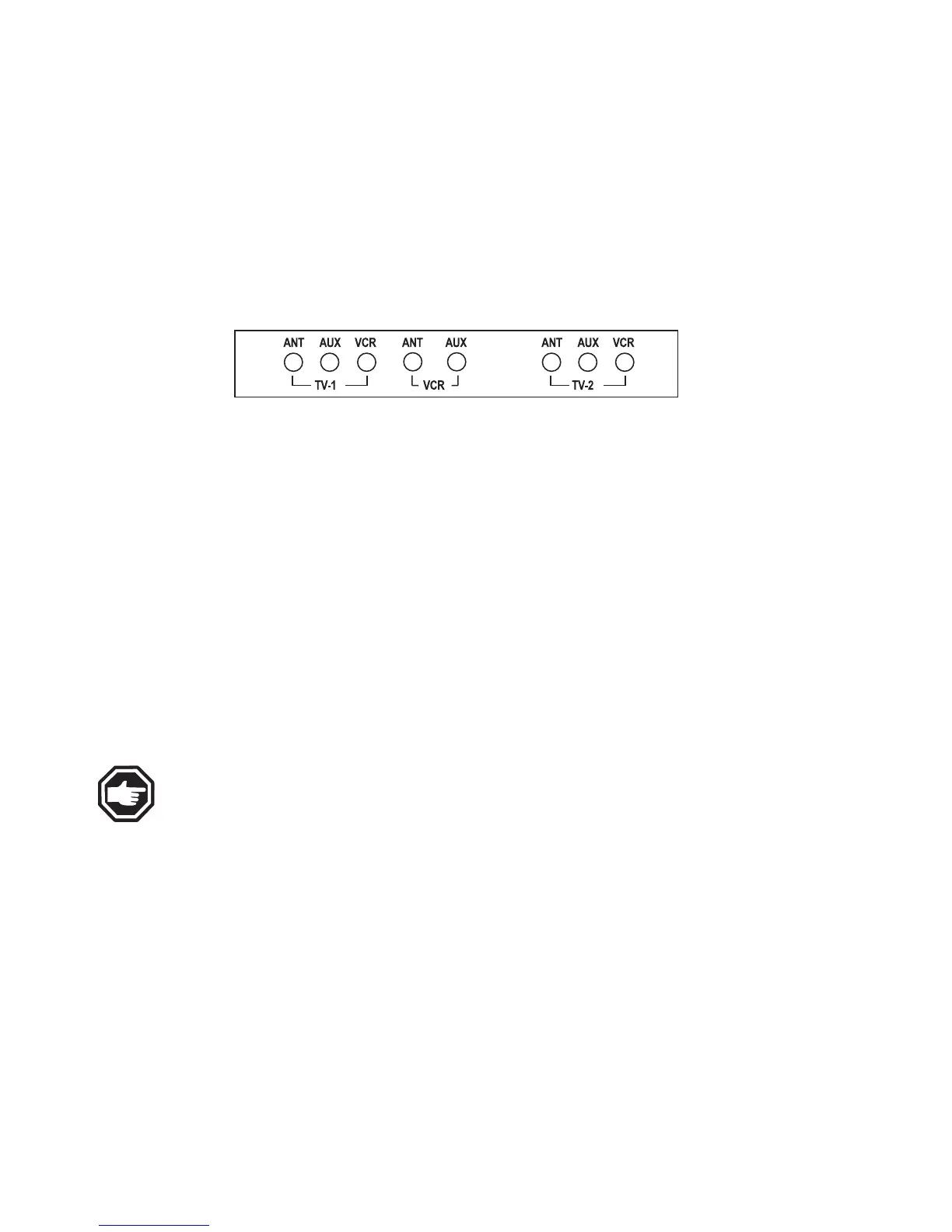

The selector box switches are divided into three groups: TV1 (front TV), TV2
(rear TV) and the VCR. Both the TV1 and TV2 button groups perform the
same functions. Example: To watch the front TV (TV1) from the antenna
depress the ANT button in the TV1 group. This will direct the signal from the
antenna to the front TV.
To Watch the FRONT TV:
• Using the antenna depress the ANT button in the TV1 group.
• Using the shore cable, depress the AUXILIARY button in the TV1
group.
• Using the VCR turn the TV to channel 3 and depress the VCR button
in the TV1 group.
To Watch the REAR TV:
• Using the antenna depress the ANT button in the TV2 group.
• Using the shore cable depress the AUXILIARY button in the TV2
group.
• Using the VCR turn the TV to channel 3 and depress the VCR button
in the TV2 group.
NOTE: When watching TV by using the VCR, such as play-
ing a tape, make sure the TV is turned to channel 3.
Using the VCR (Optional):
With the antenna, depress the ANT button in the VCR group. With the
shore cable, depress the AUXILIARY button in the VCR group.
1. If the picture is weak and the antenna boost is working, try moving
the motorhome a few feet forward or backwards.
2. If it is weak or has no picture check the video selector box to make
sure the proper mode button has been selected.
3. If the signal is still weak it may be a shorted or open coax. The coax
cable is made up of two conductors: A center conductor which is usually
copper, and the ground which is woven or braided aluminum. There is
insulating material that separates the two conductors known as the
die-electric. The ground and center conductor are to remain separate
Equipment
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
5•143
WINDSOR
VIDEO SELECTOR
BOX
