Electrical Systems - Chassis
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
9•245
just push the same switch in the opposite direction. When the pedal comes to
the end of the traveling distance you will hear a different sound in the noise of
the motor. Stop by releasing the switch. Do not continue moving the pedals.
Damage to the motor and or fuses may result if operation of the switch contin-
ues after reaching the fullest extend or retract position.
6. Step Cover:
The front door models are equipped with a sliding Step-Well Cover that is
extended and retracted by two switch locations. One switch is located just
inside the entry door to the right, next to the passenger seat. The second
switch is located on the left portion of the shift panel.
7. Generator Tray IN/OUT:
This switch slides the front generator compartment tray out to access
generator or in to close compartment.

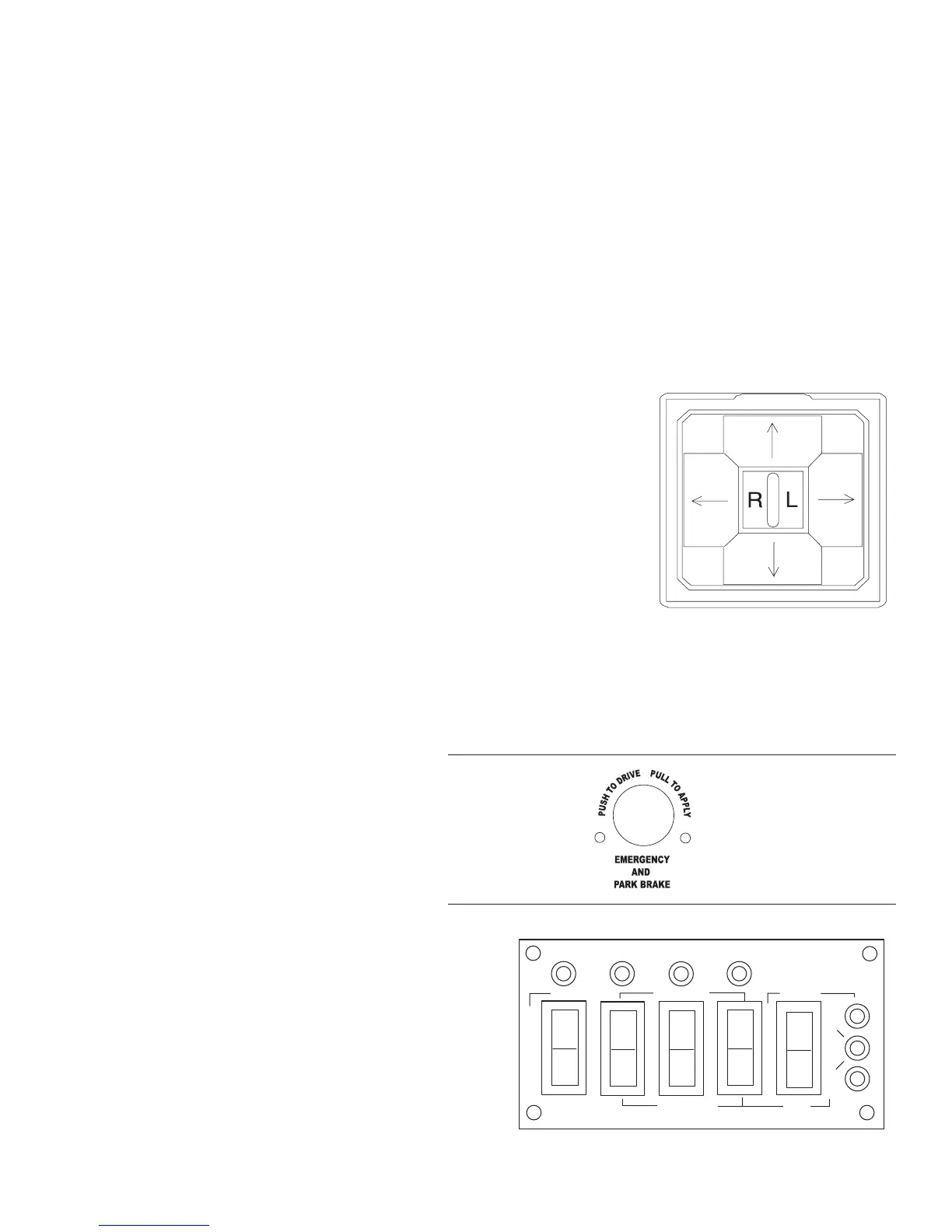

8. Mirror Control:
This switch adjusts the bottom mirror of the rear view mirror. The
small selector in the middle of the switch must be placed in the desired
side. The middle position is to prevent accidental bumping of the switch
and changing the mirror position.
Mirror Care and Cleaning:
When washing your motorhome with hot water and soap, you will be also
washing the outside chrome mirrors. After you have completed washing the
motorhome you will need to clean the outside mirrors with a good quality glass
cleaner. DO NOT use anything abrasive on the mirror and the outside chrome
of the mirror.
The park brake system is activated when the push-pull con-
trol knob is pulled. When the knob is pushed the brake is
released. Prior to driving allow time for the air compressor to
build up sufficient air to shut off the air warning lamp and
buzzer.
RVA Control (Hydraulic Systems):
The three point hydraulic leveling system is oper-
ated from the control module. You can manually or
automatically level the motorhome. The control fea-
tures a multiple warning system with flashing lights
and a bong alarm to alert you of the jack down posi-
tion.
WINDSOR
8
LEVELING CONTROLS
