10. Trans Temp:
Shows temperature of transmission fluid. Normal transmission operating
temperature is 160-250° F. The maximum transmission to cooler oil
temperature is 300° F. Do not let the transmission temperature exceed
275° F. If excessive temperature is indicated stop motorhome and
shift to neutral. Accelerate engine to 1200-1500 RPM and allow
temperature to return to normal.
NOTE: Layouts will vary with difference in models or
options.

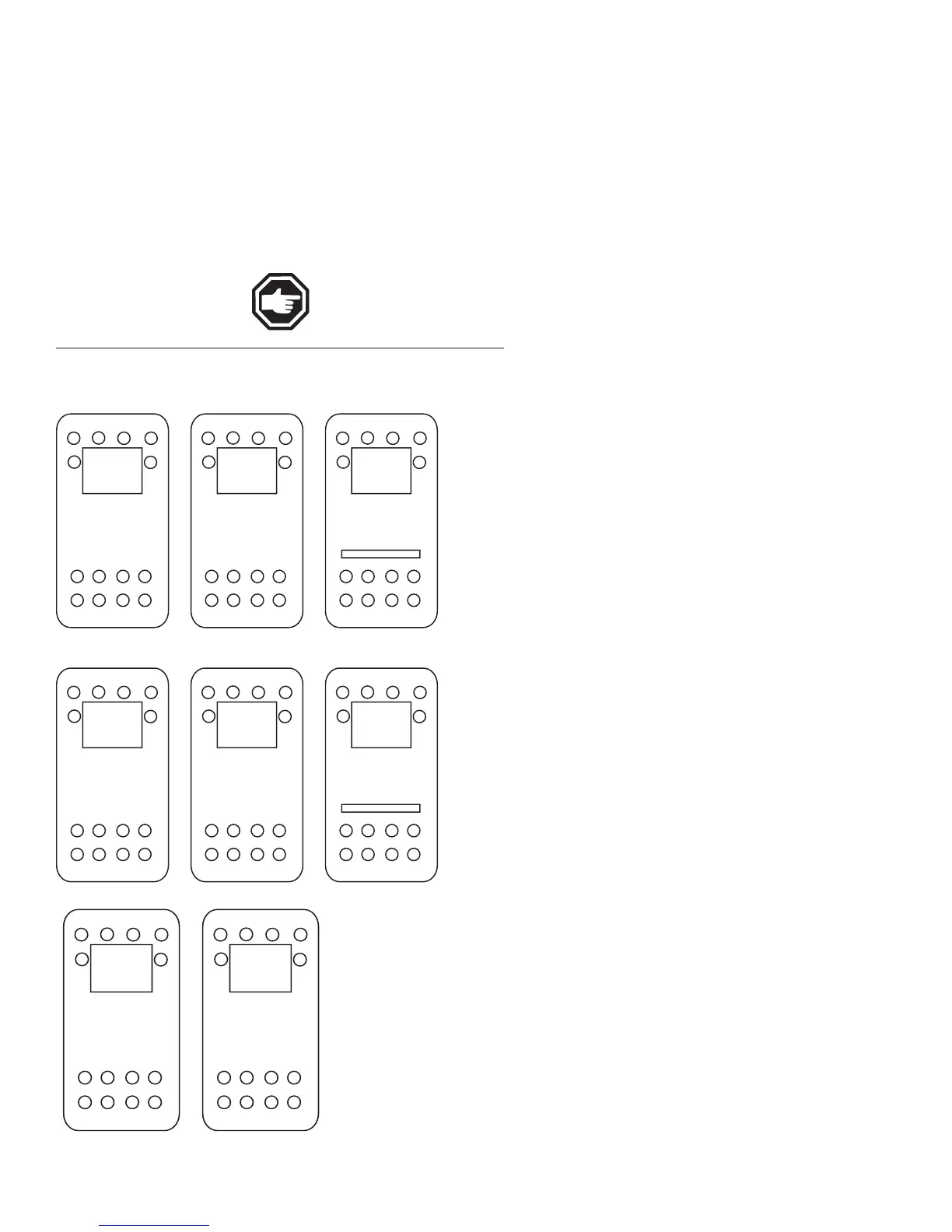

1. Aux Start:
Borrows power from the house batteries to
help the chassis battery to start the engine.
2. Air Dump:
Releases air from the chassis air bags to
lower the coach.
3. Driving Lights:
Operates low beam headlights at 80% of their
normal operating voltage
4. IDLE:
This switch will increase and decrease the
engine idle in 25 rpm increments. There are
limits to the idle speed, about 700 to 875 rpm.
5. ENG DIAG:
Checks engine functions.
6. GEN ON/OFF:
Starts and stops electric generator.
7. FANS ON/OFF:
Operates left windshield fan.
8. FANS ON/OFF:
Operates right windshield fan.
Electrical Systems - Chassis
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
WINDSOR
9•234
Switches - Dash
To Next Page
