The 20 Amp service mode is not automatically detected and the oper-
ator must manually select the 20 Amp mode when 20 Amp service is
available. The service select button allows the current threshold to be set to
either 30 Amps or 20 Amps to match the incoming service.
The 12 Volt house contains fuses (located in the bedroom overhead cabi-
net) that protect the electrical circuits. These fuses are the standard automo-
tive type. When a fuse is “blown,” the wire in middle of the plastic case will
be burnt. A broken, bad or “blown” fuse must be replaced with a fuse of the
same rating and type. Use of a fuse with a different rating or type will defeat
the circuit protection provided by that fuse and could result in damage to the
motorhome’s electrical system.
The 12 Volt fuses, located in this distribution panel, service the interior
house lighting, ventilation fans and monitor panel. Should a fuse blow it will
be evident by the broken metal strip located in the center of the fuse.
Replacement fuses should be of the same amperage. If a higher rated fuse is
installed it can damage the wiring. Fuse current set points follow much of the
same electrical principle as the 120 Volt AC breakers. Using 12 Volt DC as
the electromotive force can make it more susceptible to outside influences,
such as corrosion from weathering or oxidation.
Electrical Systems - House
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
WINDSOR 8•211

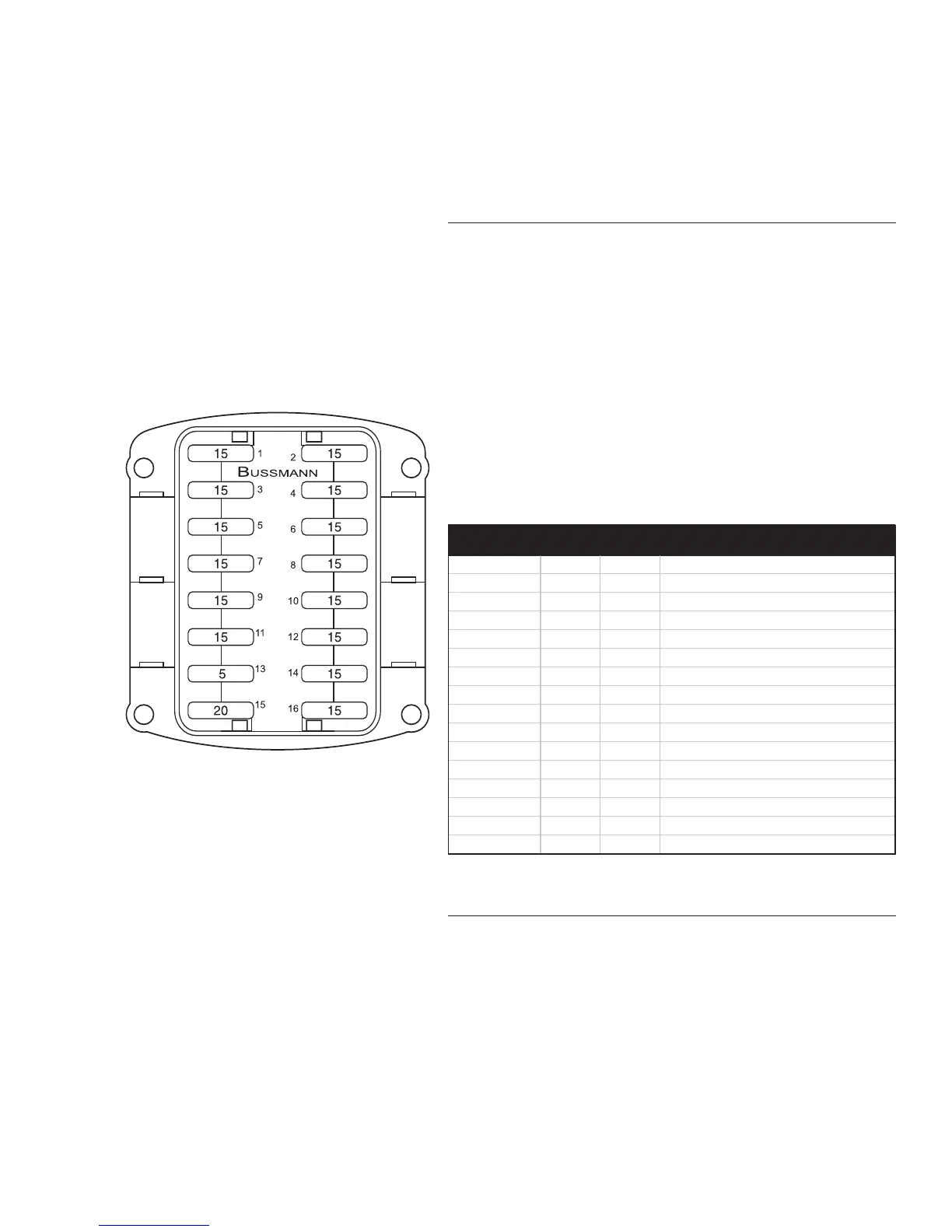

DISTRIBUTION
PANEL - HOUSE
12 VOLT
Fuses
COLOR GA AMP CIRCUIT
1 GRN 14 15 BDRM WALL/SHRT CLST
2 GRN 14 15 WARDDRB/BDRM CEILING
3 BLUE 14 15 BATHROOM LTS
4 BLK 14 15 BATH/KITCHEN VENTS
5 GRY 14 15 FURN/FRNT AC/WTR HTR
6 YEL 14 15 DINETTE/RT OVHD/PRCH
7 VIO 14 15 KIT,REF,GAL,LTS
8 RE D 14 15 LIVING RM C EILING LTS
9 RED 14 15 MONITOR PNL
10 BLU 14 15 LEFT OVHD/WALL LTS
11 ORG 14 15 BAY 12V RECEPT
12 BLUE 12 15 FREEZER
13 YEL 18 5 DOORBELL
14 GRY 14 15 RADIO, NIGHT LTS (OPT)
15 RED 10 20 WATER PUMP
16 RED 14 15 PWR TOILET/AWNING (OPT)
